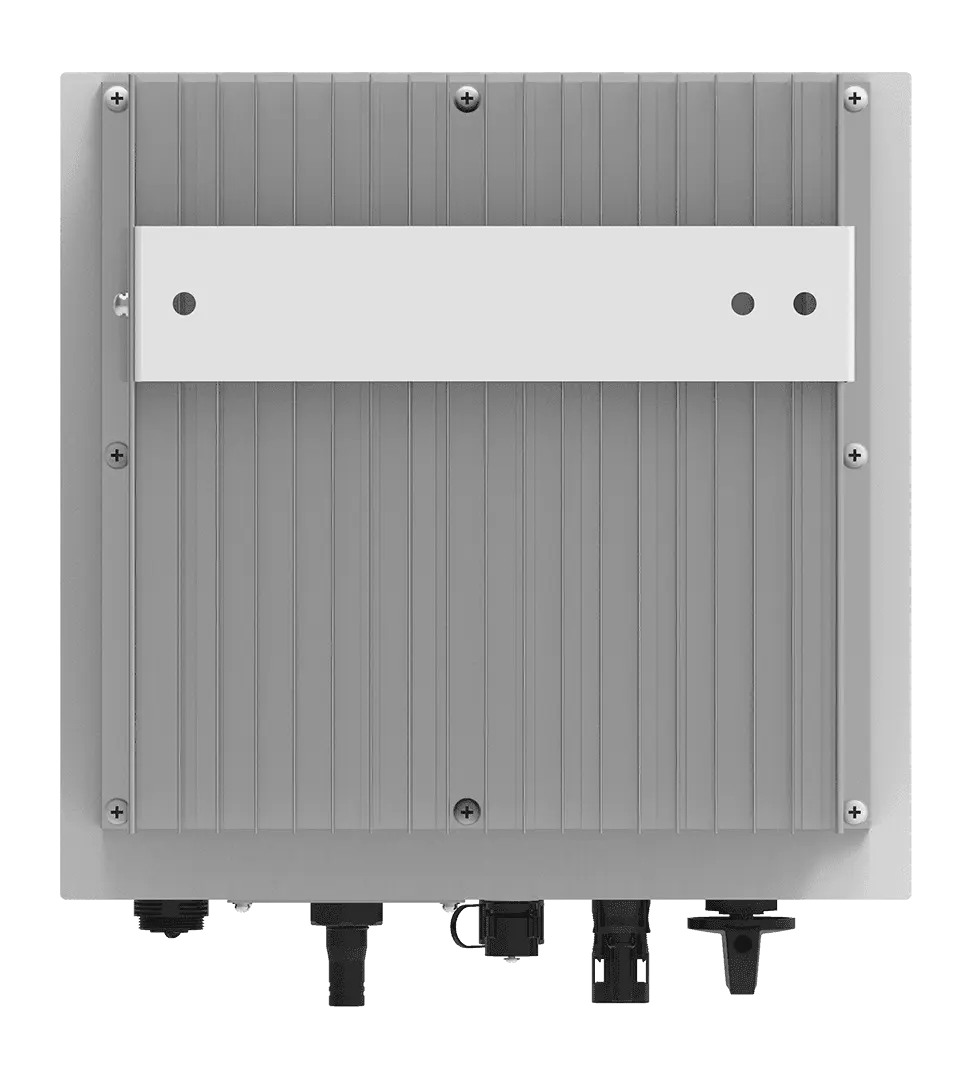

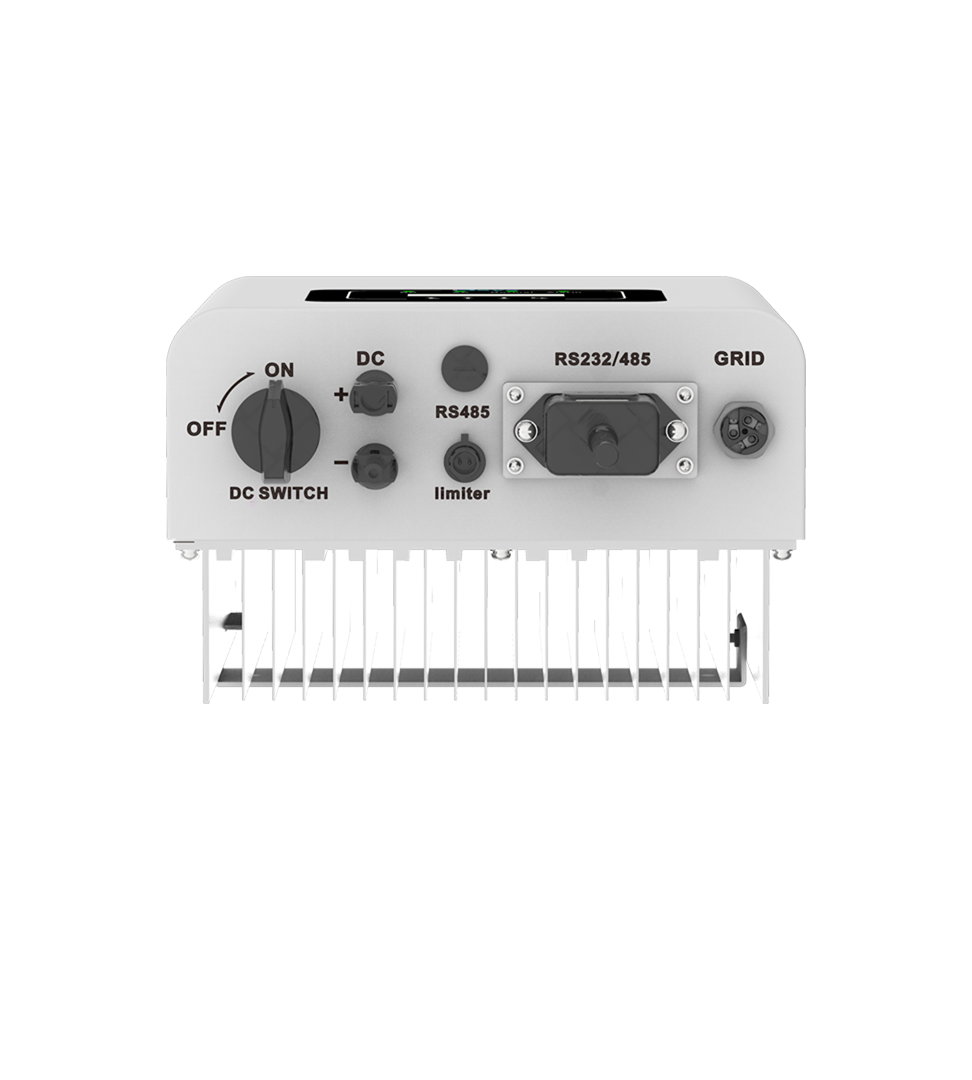

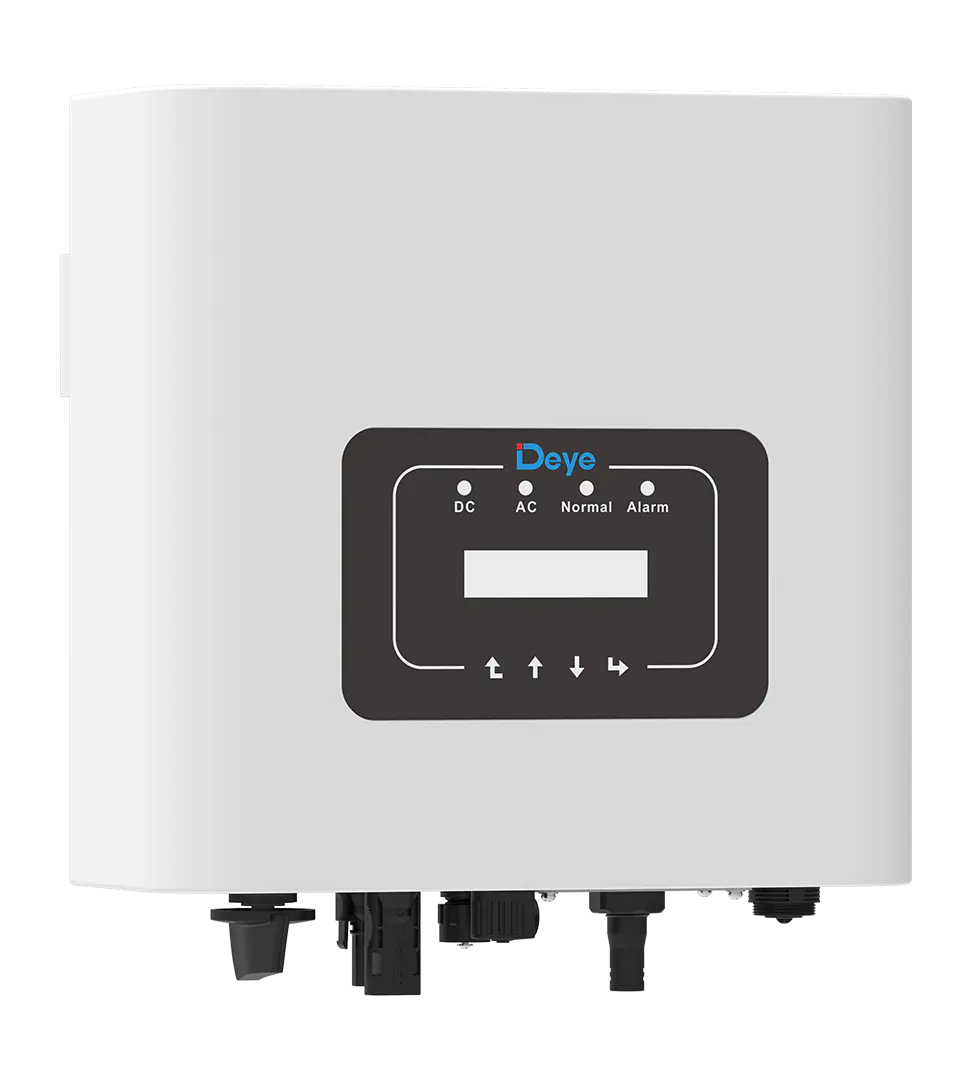

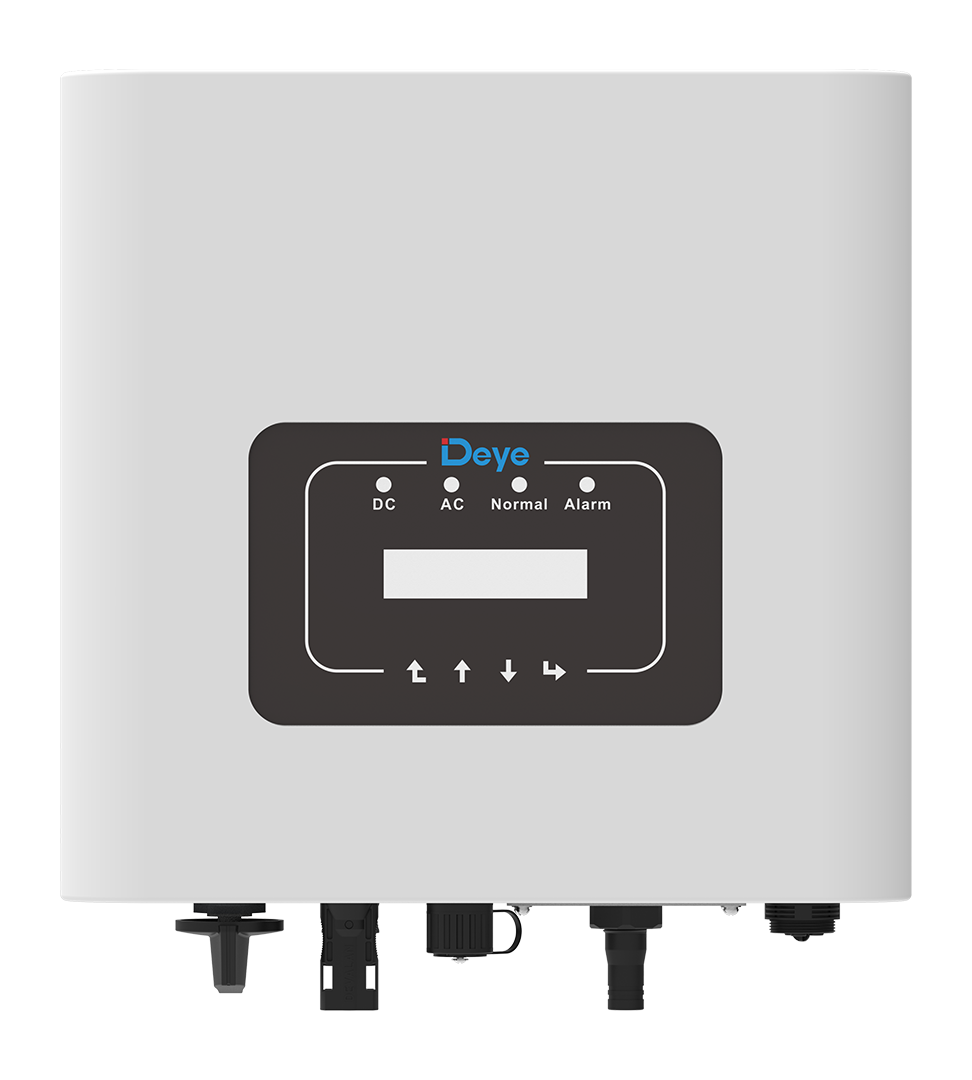

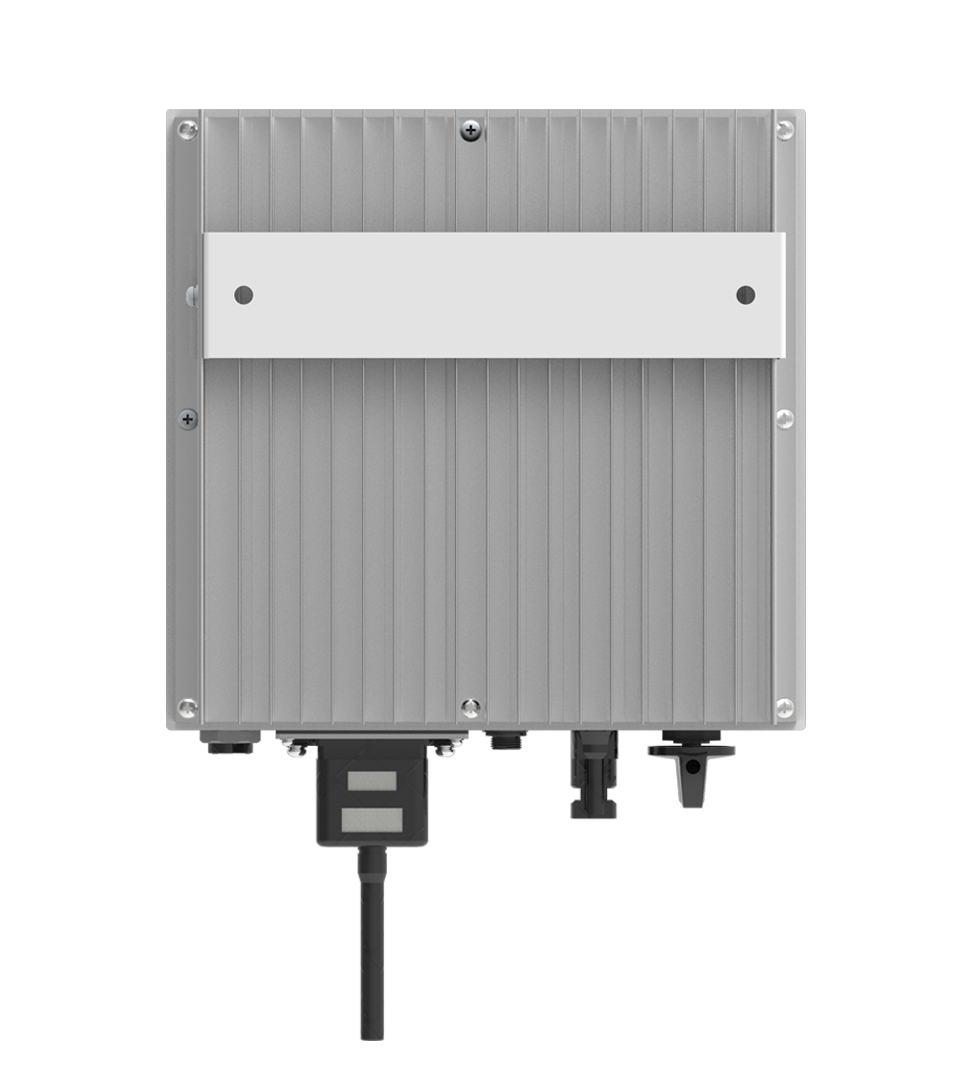

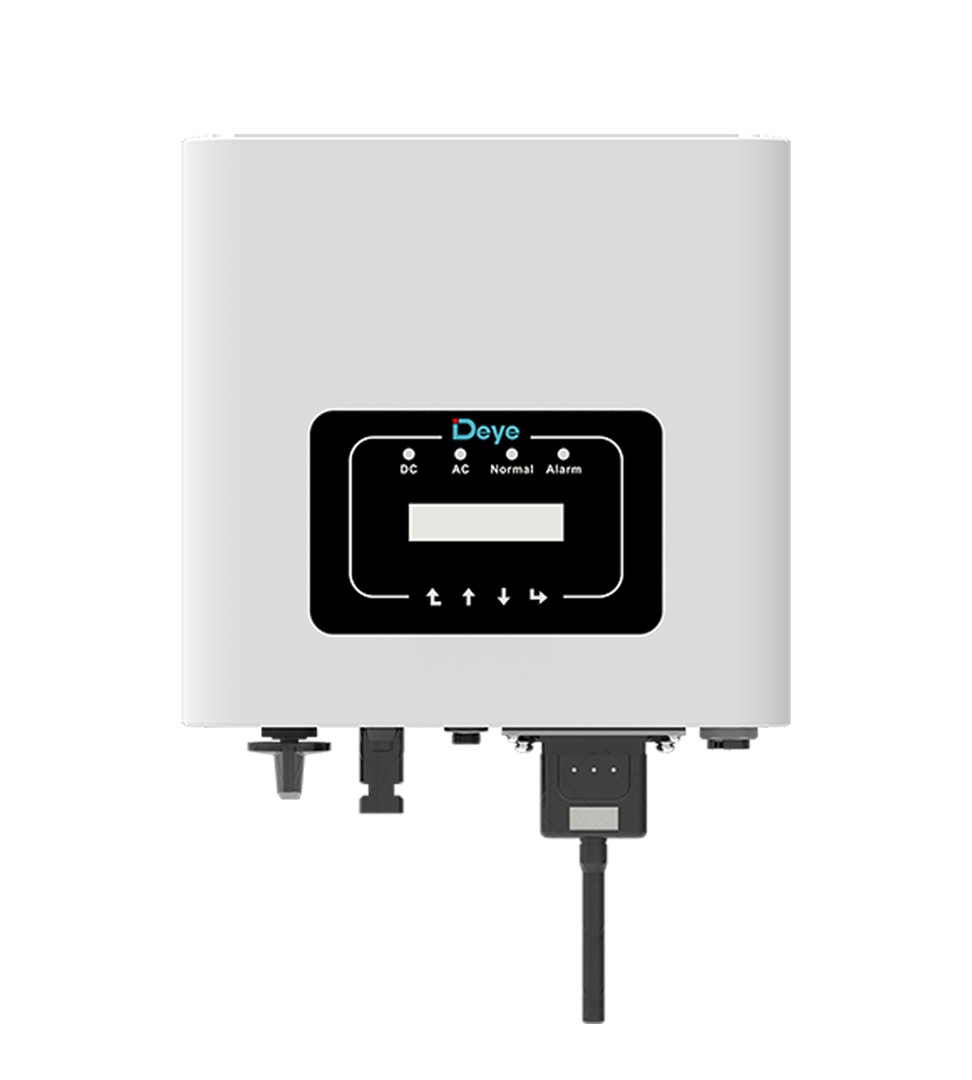

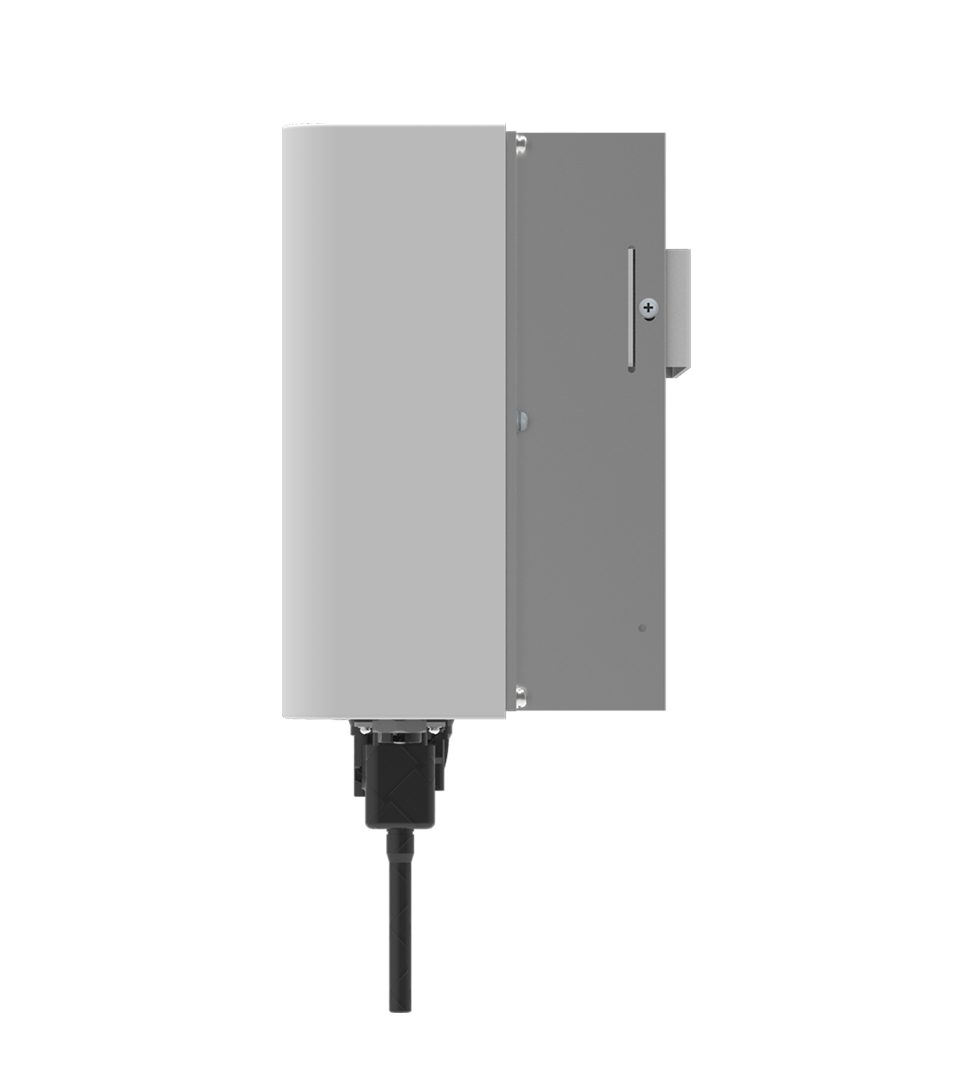

SUN-1/1.5/2/2.2/2.5/2.7/3/3.3/3.6/4K-G04P1-EU-AM1 | 1-4kW | Single Phase | 1 MPPT

Higher yields / Safe & Reliable / Smart / User-friendly

The innovative design of the 1/1.5/2/2.2/2.5/2.7/3/3.3/3.6/4K-G04P1-EU-AM1 is not only easy to install, but also allows for quick DC and AC connections. E.g. it weighs just 6.35 kg. Commissioning is equally easy, because the integrated user interface (local LCD display and buttons) makes it possible to choose the necessary settings quickly.

Remotely shutdown function

Smart Monitoring Platform

Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

1 MPP tracker, Max. efficiency up to 97.5%
Zero export application,VSG application
String intelligent monitoring (optional)
Wide output voltage range
Anti-PID function(Optional)
Low start-up voltage of 80V

DOWNLOAD AREA

>> Download Certificate <<

certificate_emc+eniec61000

certificate_en50549-1
certificate_en62109

certificate_iec60068-2-1

certificate_iec61683

certificate_iec61727

certificate_iec62109

certificate_iec62116

certificate_italy+cei0-21

certificate_netherlands+nen-en50549-1

certificate_poland+pn-en50549-1

pvinverter_eudeclaration-sun-1-4k-g04p1-eu-am1+230927004

Technical Specifications

SUN-1K-G04P1-EU-AM1
SUN-1.5K-G04P1-EU-AM1
SUN-2K-G04P1-EU-AM1
SUN-2.5K-G04P1-EU-AM1
SUN-3K-G04P1-EU-AM1
SUN-3.6K-G04P1-EU-AM1
SUN-4K-G04P1-EU-AM1
Feedback

Model	SUN-1K-G04P1-EU-AM1	SUN-1.5K-G04P1-EU-AM1	SUN-2K-G04P1-EU-AM1	SUN-2.2K-G04P1-EU-AM1	SUN-2.5K-G04P1-EU-AM1	SUN-2.7K-G04P1-EU-AM1	SUN-3K-G04P1-EU-AM1	SUN-3.3K-G04P1-EU-AM1	SUN-3.6K-G04P1-EU-AM1	SUN-4K-G04P1-EU-AM1
PV String Input Date
Max. PV Input Power(kW)	1.3	2	2.6	2.9	3.3	3.5	3.9	4.3	4.7	5.2
Max. PV Input Voltage(V)	550
Start-up Voltage(V)	80
MPPT voltage range(V)	70-500
Rated PV Input voltage(V)	360									420
Max. Operating PV Input Current (A)	30
Max. Input Short Circuit Current (A)	20
No. of MPP Trackers/No. of Strings per MPP Tracker	1/1
AC Output Side
Rated AC Output Active Power (kW)	1	1.5	2	2.2	2.5	2.7	3	3.3	3.6	4
Max. AC Output Apparent Power (kVA)	1.1	1.65	2.2	2.42	2.75	2.97	3.3	3.63	3.96	4.4
Rated AC output current (A)	4.6/4.4	6.8/6.5	9.1/8.7	10/9.6	11.4/10.9	12.3/11.8	13.7/13.1	15/14.4	16.4/15.7	18.2/17.4
Max. AC Output Current(A)	5/4.8	7.5/7.2	10/9.6	11/10.6	12.5/12	13.5/13	15/14.4	16.5/15.8	18/17.3	20/19.2
Rated output voltage/range (V)	220/230 0.85Un-1.1Un
Grid Connection Form	L+N+PE
Rated Output Grid Frequency/Range(Hz)	50/45-55, 60/55-65
Power Factor Adjustment Range	0.8 leading to 0.8lagging
Total Current Harmonic Distortion THDi	<3%
DC Injection Current	<0.5%ln
Efficiency
Max. Efficiency	97.3%						97.5%
Euro Efficiency	96.3%						97.0%
MPPT Efficiency	＞99%
Equipment Protection
DC Polarity Reverse Connection Protection	yes
AC Output Overcurrent Protection	yes
AC Output Overvoltage Protection	yes
AC Output Short Circuit Protection	yes
Thermal Protection	yes
DC Terminal Insulation Impedance Monitoring	yes
DC Component Monitoring	yes
Ground Fault Current Monitoring	yes
Power Network Monitoring	yes
Island Protection Monitoring	yes
Earth Fault Detection	yes
Overvoltage Load Drop Protection	yes
Residual Current (RCD) Detection	yes
Surge Protection Level	TYPE II(DC),TYPE II(AC)
Interface
Communication Interface	RS485/RS232
Monitor Mode	GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range (°C)	-25 to +65℃, >45℃ Derating
Permissible Ambient Humidity	0~100%
Permissible Altitude (m)	2000m
Noise (dB)	≤ 35
Ingress Protection(IP) Rating	IP 65
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC),OVC III(AC)
Cabinet Size (WxHxD mm)	280mm310mm184mm（Excluding connectors and brackets）
Weight [kg]	6.35
Warranty	5 Years
Type Of Cooling	natural cooling
Grid Regulation	IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,G98,G99,VDE-AR-N 4105
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
