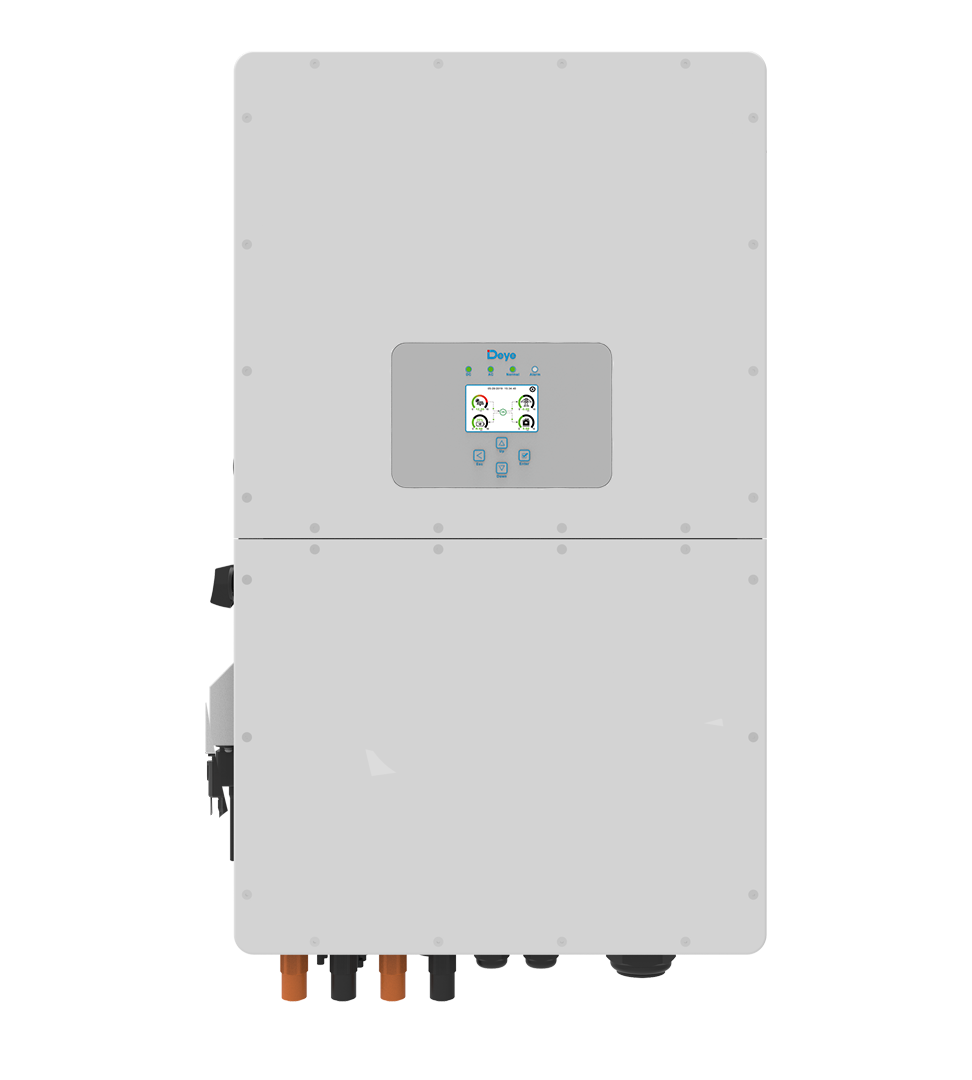

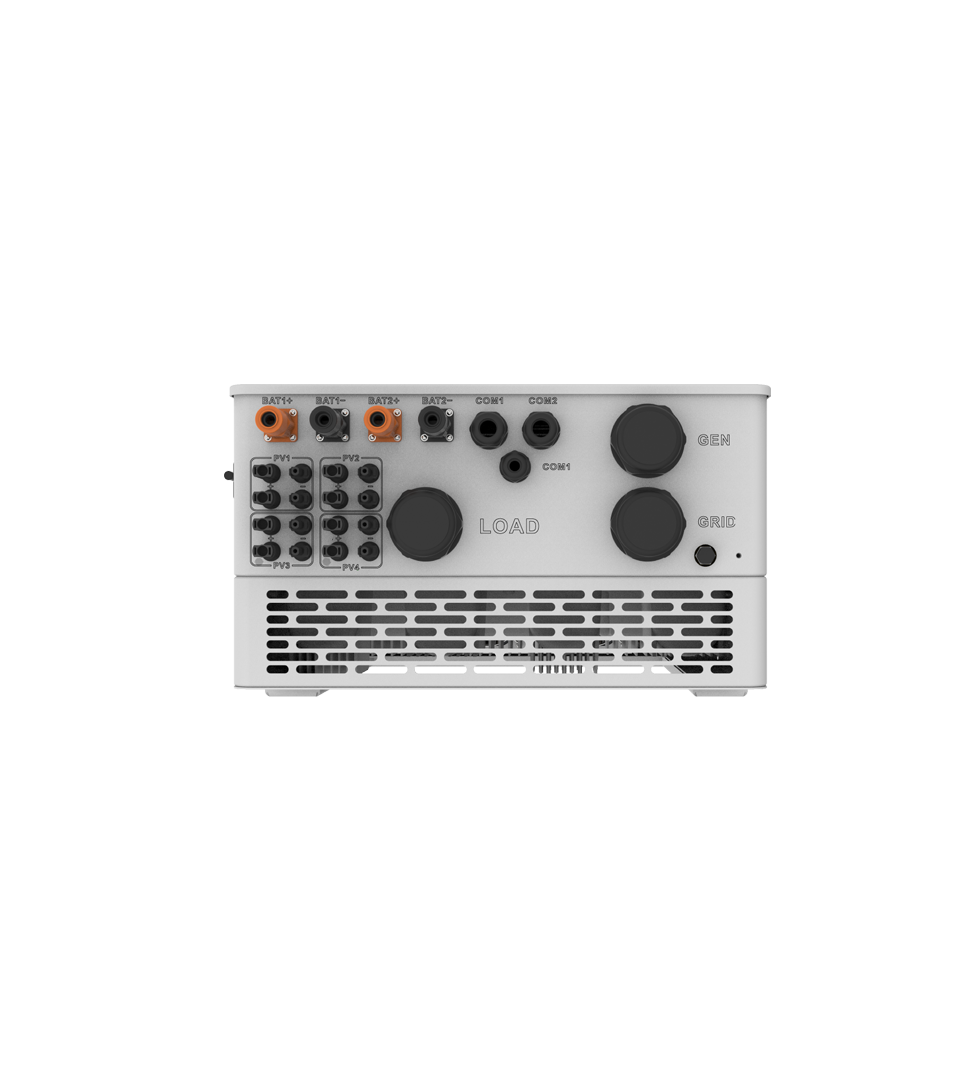

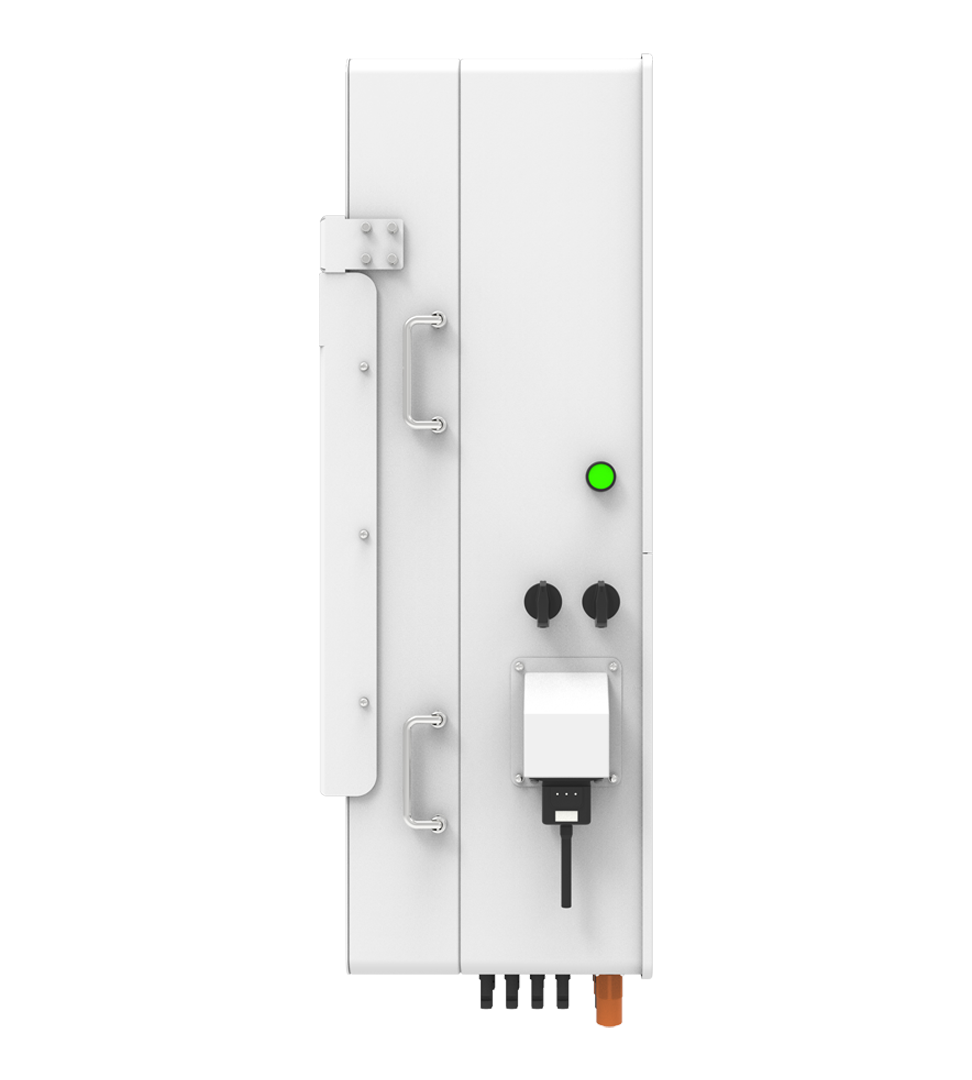

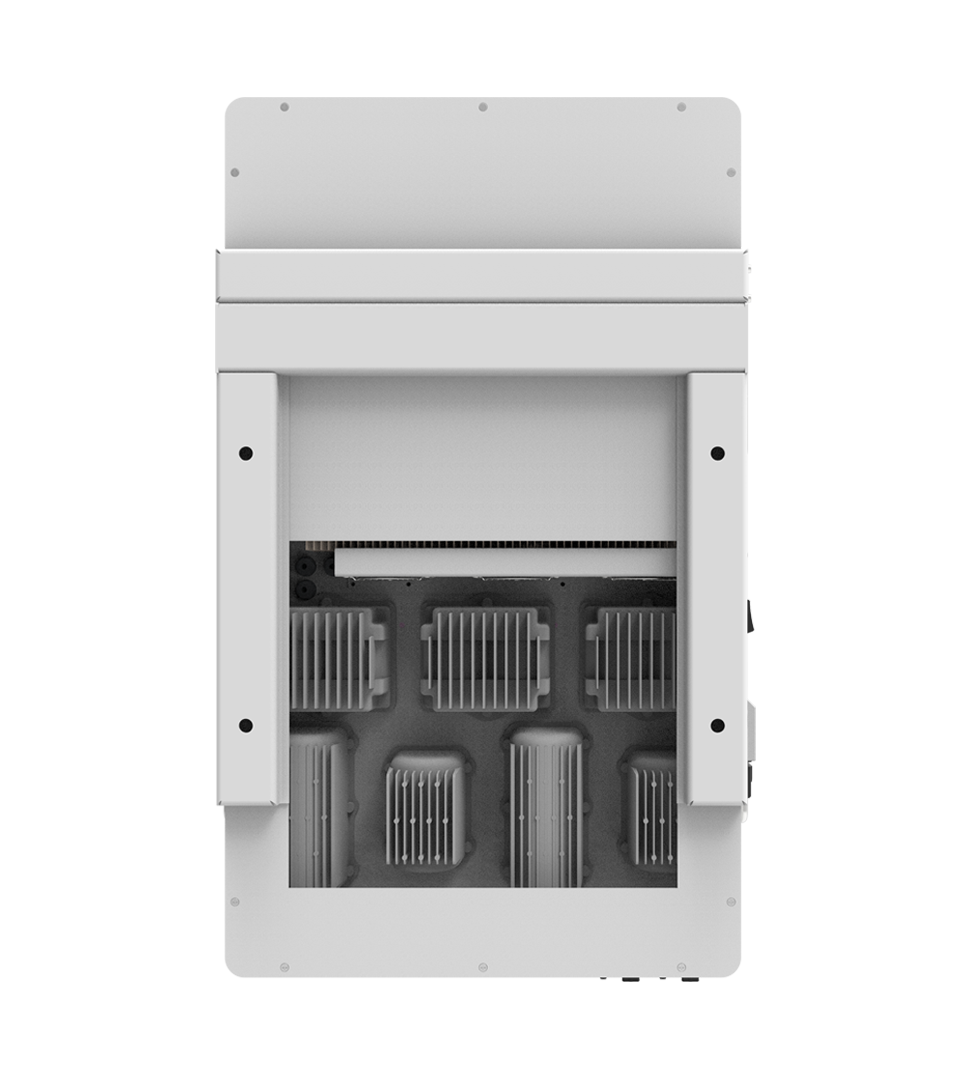

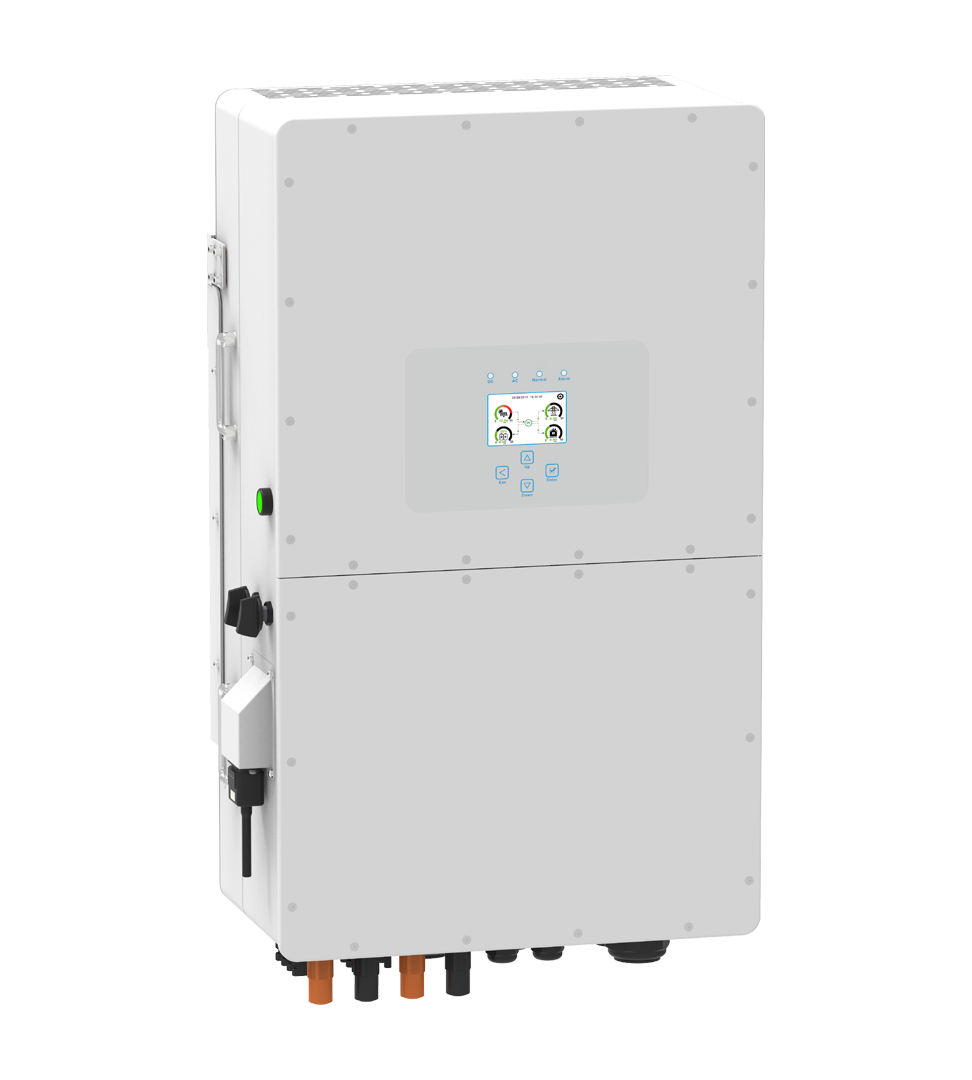

SUN-29.9/30/35/40/50K-SG01HP3-EU-BM3/4 | 29.9-50kW | Three Phase | 2/3/4 MPPT | Hybrid Inverter | HV Battery Supported

Higher yields / Safe & Reliable / Smart / User-friendly

SUN-29.9/30/35/40/50K-SG01HP3-EU-BM2/3/4 is a brand new series of three phase hybrid inveter supporting 160-700V HV Battery, ensuring system efficiency and less heat dissipation. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios.

Remotely shutdown function

Smart Monitoring Platform

Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

100% unbalanced output；each phase
AC couple to retrofifit existing solar system
*Max. 10 pcs parallel for on-grid and off-grid

operation; Support multiple batteries parallel
Max. charging/discharging current of 100A
High voltage battery, higher efficiency
6 time periods for battery charging/discharging
Support storing energy from diesel generator

Technical Specifications

SUN-29.9K-SG01HP3-EU-BM3
SUN-30K-SG01HP3-EU-BM3
SUN-35K-SG01HP3-EU-BM3
SUN-40K-SG01HP3-EU-BM4
SUN-50K-SG01HP3-EU-BM4
Feedback

Model	SUN-29.9K-SG01HP3-EU-BM3	SUN-30K-SG01HP3 -EU-BM3	SUN-35K-SG01HP3 -EU-BM3	SUN-40K-SG01HP3 -EU-BM4	SUN-50K-SG01HP3 -EU-BM4
Battery Input Data
Battery Type	Lithium-ion
Battery Voltage Range(V)	160-800
Max.Charging Current(A)	50+50
Max.Discharging Current(A)	50+50
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of battery input	2
PV String Input Data
Max DC Input Power（W）	38870	39000	45500	52000	65000
Max DC Input Voltage（V）	1000
Start-up Voltage（V）	180
MPPT Voltage Range（V）	150-850
Rated DC Input Voltage(V)	600
Max Input Short-Circuit Current（A）	55+55+55			55+55+55+55
Max Operating PV Input Current（A）	36+36+36			36+36+36+36
No.of MPP Trackers/No.of String Per MPP Tracker	3/2+2+2			4/2+2+2+2
AC Input/Output Data
Rated AC Input/Output Active Power（W）	29900	30000	35000	40000	50000
Max AC Input/Output Apparent Power （VA）	29900	33000	38500	44000	55000
Peak Power (off-grid)（W）	1.5 times of rated power,10s
Rated AC Input/Output Current（A）	45.4/43.4	45.5/43.5	53.1/50.8	60.7/58.0	75.8/72.5
Max AC Input/Output Current（A）	45.4/43.4	50/47.9	58.4/55.8	66.7/63.8	83.4/79.8
Max. Three-phase Unbalanced Output Current（A）	60	60	60	70	83.4
Max Continuous AC Passthrough (grid to load)（A）	200
Rated Input/Output Voltage/Range(V)	220/380V，230/400V 0.85Un-1.1Un
Grid Connection Form	3L+N+PE
Rated Input/Output Grid Frequency/Range	50/45-55, 60/55-65
Power Factor Adjustment Range	0.8 leading-0.8 lagging
Total Current Harmonic Distortion THDi	<3% (of nominal power)
DC Injection Current	<0.5%ln
Efficiency
Max Efficiency	97.60%
Euro Efficiency	97.0%
MPPT Efficiency	＞99%
Equipment Protection
DC Polarity Reverse Connection Protection	YES
AC Output Overcurrent Protection	YES
AC Output Overvoltage Protection	YES
AC Output Short Circuit Protection	YES
Thermal Protection	YES
DC Terminal Insulation Impedance Monitoring	YES
DC Component Monitoring	YES
Ground Fault Current Monitoring	YES
Power Network Monitoring	YES
Island Protection Monitoring	YES
Earth Fault Detection	YES
DC Input Switch	YES
Overvoltage Load Drop Protection	YES
Residual Current (RCD) Detection	YES
Surge Protection Level	TYPE II(DC), TYPE II(AC)
Interface
Communication Interface	RS485/RS232/CAN
Monitor Mode	GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range	-40℃+60℃,＞45℃ Derating
Permissible Ambient Humidity	0-100%
Permissible Altitude	2000m
Noise	≤ 65 dB(A)
Ingress Protection(IP) Rating	IP 65
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC),OVC III(AC)
Cabinet size（WHD）[mm]	527894294（Excluding connectors and brackets）
Weight[kg]	80
Warranty	5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Type Of Cooling	Intelligent air cooling
Grid Regulation	IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
