| Model |

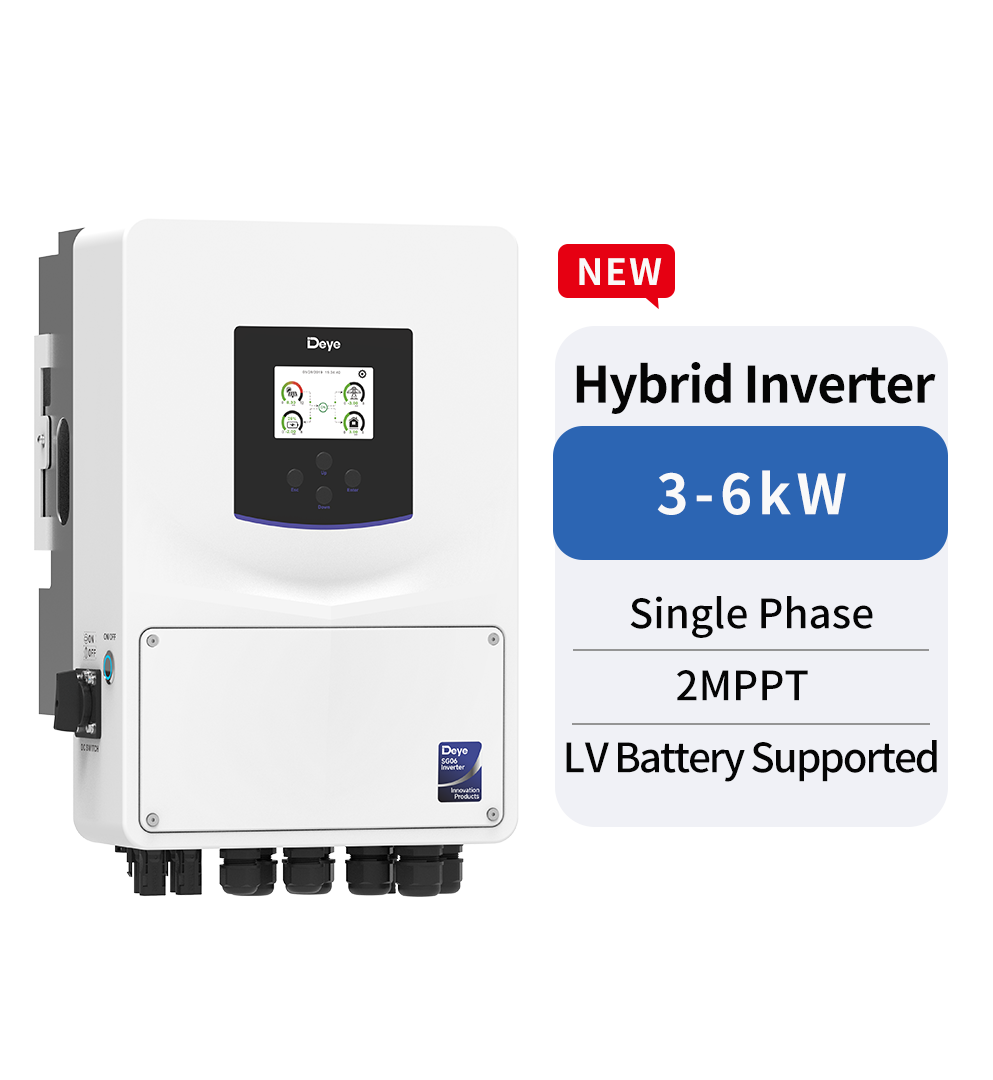

SUN-3K-SG06LP1-24-EU-CM1
|
SUN-3K-SG06LP1-EU-CM1 |
SUN-3.6K-SG06LP1-EU-CM2 |
SUN-4K-SG06LP1-EU-CM2 |
SUN-4.6K-SG06LP1-EU-CM2 |
SUN-5K-SG06LP1-EU-CM2 |
SUN-6K-SG06LP1-EU-CM2 |
| Battery Input Data |
|
| Battery Type |
Lead-acid or Lithium-ion |
| Battery Voltage Range(V) |
20-30 |
40-60 |
| Max.Charging/Discharging Current(A) |
140 |
70 |
90 |
95 |
120 |
120 |
135 |
| Charging Strategy for Li-ion Battery |
Self-adaption to BMS |
| Number of Battery Input |
1 |
| PV String Input Data |
|
|
|
Max. PV Access Power (W)
|
6000 |
6000 |
7200 |
8000 |
9200 |
10000 |
12000 |
| Max. PV Input Power（W） |
4800 |
4800 |
5760 |
6400 |
7360 |
8000 |
9600 |
| Max. PV Input Voltage（V） |
500 |
| Start-up Voltage（V） |
125 |
| MPPT Voltage Range（V） |
150-425 |
| Rated PV Input Voltage(V) |
370 |
|
Max Operating PV Input Current（A）
|
18 |
18+18 |
| Max Input Short-Circuit Current（A） |
27 |
27+27 |
| No.of MPP Trackers/No.of Strings MPP Tracker |
1/1 |
2/1+1 |
| AC Input/Output Data |
|
| Rated AC Input/Output Active Power（W） |
3000 |
3600 |
4000 |
4600 |
5000 |
6000 |
| Max. AC Input/Output Apparent Power （VA） |
3300 |
3960 |
4400 |
4600 |
5500 |
6600 |
| Rated AC Input/Output Current（A） |
13.7/13.1 |
16.4/15.7 |
18.2/17.4 |
21/20 |
22.8/21.8 |
27.3/26.1 |
| Max. AC Input/Output Current（A） |
15/14.4 |
18/17.3 |
20/19.2 |
21/20 |
25.0/24.0 |
30/28.7 |
| Max. Continuous AC Passthrough (grid to load)（A） |
50 |
| Peak Power (off-grid)（W） |
2 times of rated power,10s |
| Rated Input/Output Voltage |
220V/230V 0.85Un-1.1Un L+N+PE |
| Rated Input/Output Grid Frequency/Range(Hz) |
50/45-55，60/55-65 |
| Power Factor Adjustment Range |
0.8 leading to 0.8lagging |
| Total Current Harmonic Distortion THDi |
<3% (of nominal power) |
| DC Injection Current |
<0.5%ln |
| Efficiency |
|
| Max. Efficiency |
97.6% |
| Euro Efficiency |
96.5% |
| MPPT Efficiency |
＞99% |
| Equipment Protection |
|
| Integrated |
DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection,
AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding
Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
|
| Surge Protection Level |
TYPE II(DC),TYPE II(AC) |
| Interface |
|
| LCD/LED Display |
LCD |
|
Communication Interface
|
WIFI, RS485, CAN |
| General Data |
|
| Operating Temperature Range |
-40 to+60℃,＞45℃ Derating |
| Permissible Ambient Humidity |
0~100% |
| Permissible Altitude |
3000m |
| Noise(dB) |
＜45 |
| Ingress Protection(IP) Rating |
IP 65 |
| Inverter Topology |
Non-Isolated (solar), Isolated (battery) |
| Over Voltage Category |
OVC II(DC),OVC III(AC) |
| Cabinet size（W*H*D）[mm] |
310*460*218（Excluding connectors and brackets） |
| Weight[kg] |
15.6 |
| Warranty |
5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
|
| Type Of Cooling |
natural cooling |
| Grid Regulation |
IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G99,VDE-AR-N 4105 |
| Safety EMC/Standard |
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
