Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
SUN-6K-SG05LP1-EU-SM2-P
SUN-7K-SG05LP1-EU-SM2-P
SUN-7.6K-SG05LP1-EU-SM2-P
SUN-8K-SG05LP1-EU-SM2-P
SUN-10K-SG05LP1-EU-SM2-P
Model | SUN-3.6K-SG05LP1-EU-SM2-P | SUN-5K-SG05LP1-EU-SM2-P | SUN-6K-SG05LP1-EU-SM2-P | SUN-7K-SG05LP1-EU-SM2-P | SUN-7.6K-SG05LP1-EU-SM2-P | SUN-8K-SG05LP1-EU-SM2-P | SUN-10K-SG05LP1-EU-SM2-P |
Battery Input Data | |||||||
Battery Type | Lead-acid or Lithium-ion | ||||||
Battery Voltage Range(V) | 40-60 | ||||||
Max.Charging Current(A) | 90 | 120 | 135 | 175 | 190 | 190 | 210 |
Max.Discharging Current(A) | 90 | 120 | 135 | 175 | 190 | 190 | 210 |
Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||||||
Number of battery input | 1 | ||||||
PV String Input Data | |||||||
Max. PV Access Power (W) |
7200 | 10000 | 12000 | 14000 | 15200 | 16000 | 20000 |
Max PV Input Power(W) | 5760 | 8000 | 9600 | 11200 | 12160 | 12800 | 16000 |
Max PV Input Voltage(V) | 500 | ||||||
Start-up Voltage(V) | 125 | ||||||
MPPT Voltage Range(V) | 150-425 | ||||||
Rated PV Input Voltage(V) | 370 | ||||||
Max Input Short-Circuit Current(A) | 27+27 | 32+32 | |||||
Max Operating PV Input Current(A) | 18+18 | 48+48 | |||||
No.of MPP Trackers/No.of String Per MPP Tracker | 2/1+1 | 2/2+2 | |||||
AC Input/Output Data | |||||||
Rated AC Input/Output Active Power(W) | 3600 | 5000 | 6000 | 7000 | 7600 | 8000 | 10000 |
Max AC Input/Output Apparent Power (VA) | 3960 | 5500 | 6600 | 7700 | 8360 | 8800 | 11000 |
Peak Power (off-grid)(W) | 2 times of rated power,10s | ||||||
Rated AC Input/Output Current(A) | 16.4/15.7 | 22.8/21.8 | 27.3/26.1 | 31.9/30.5 | 34.6/33 | 36.4/34.8 | 45.5/43.5 |
Max AC Input/Output Current(A) | 18/17.3 | 25/24 | 30/28.7 | 35.0/33.5 | 38/36.4 | 40/38.3 | 50/47.9 |
Max Continuous AC Passthrough (grid to load)(A) | 35 | 40 | 50 | ||||
Rated Input/Output Voltage/Range(V) | 220V/230 0.85Un-1.1Un | ||||||
Grid Connection Form | L+N+PE | ||||||
Rated Input/Output Grid Frequency/Range | 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz | ||||||
Power Factor Adjustment Range | 0.8 leading-0.8lagging | ||||||
Total Current Harmonic Distortion THDi | <3% (of nominal power) |
||||||
DC Injection Current | <0.5%ln | ||||||
Efficiency | |||||||
Max Efficiency |
97.6%
|
||||||
Euro Efficiency |
96.5%
|
||||||
MPPT Efficiency | >99% | ||||||
Equipment Protection | |||||||
Integrated |
DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection | ||||||
Surge Protection Level | TYPE II(DC),TYPE II(AC) | ||||||
Interface | |||||||

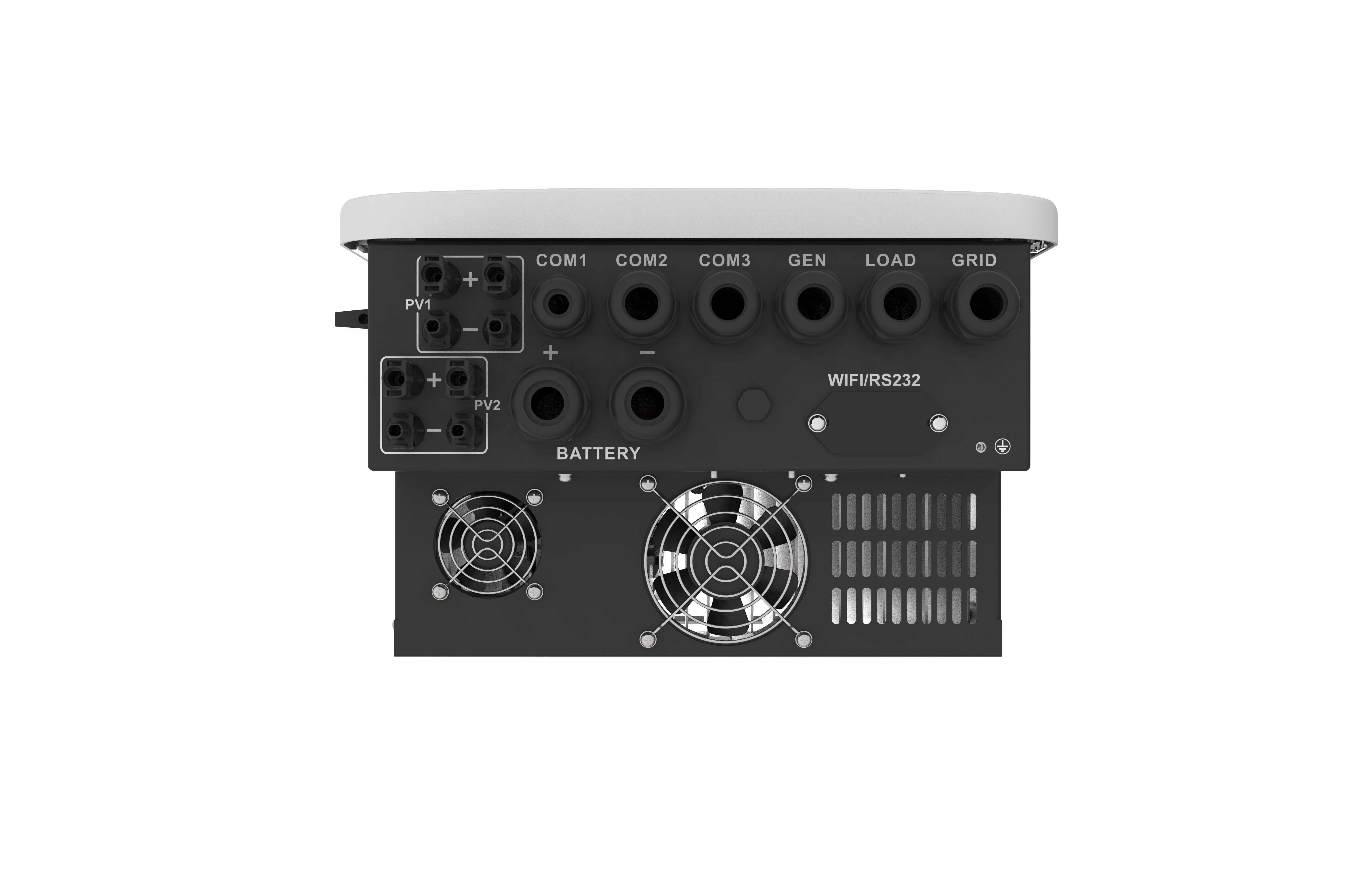

Communication Interface | RS485/RS232/CAN | ||||||
Monitor Mode |
GPRS/WIFI/Bluetooth/4G/LAN(optional) | ||||||
General Data | |||||||
Operating Temperature Range | -40 to +60℃, >45℃ Derating |
||||||
Permissible Ambient Humidity | 0~100% | ||||||
Permissible Altitude | 2000m | ||||||
Noise | <30 dB(A) | ||||||
Ingress Protection(IP) Rating | IP 65 | ||||||
Inverter Topology | Non-Isolated | ||||||
Over Voltage Category | OVC II(DC),OVC III(AC) | ||||||
Cabinet size(W*H*D)[mm] | 366×589.5×237 (Excluding Connectors and Brackets) | ||||||
Weight[kg] | 26.8 | ||||||
Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy |
||||||
Type Of Cooling | Intelligent air cooling | ||||||
Grid Regulation | IEC 61727,IEC 62116,CEI 0-21,EN 50549,NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G98,G99,VDE-AR-N 4105 | ||||||
Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
