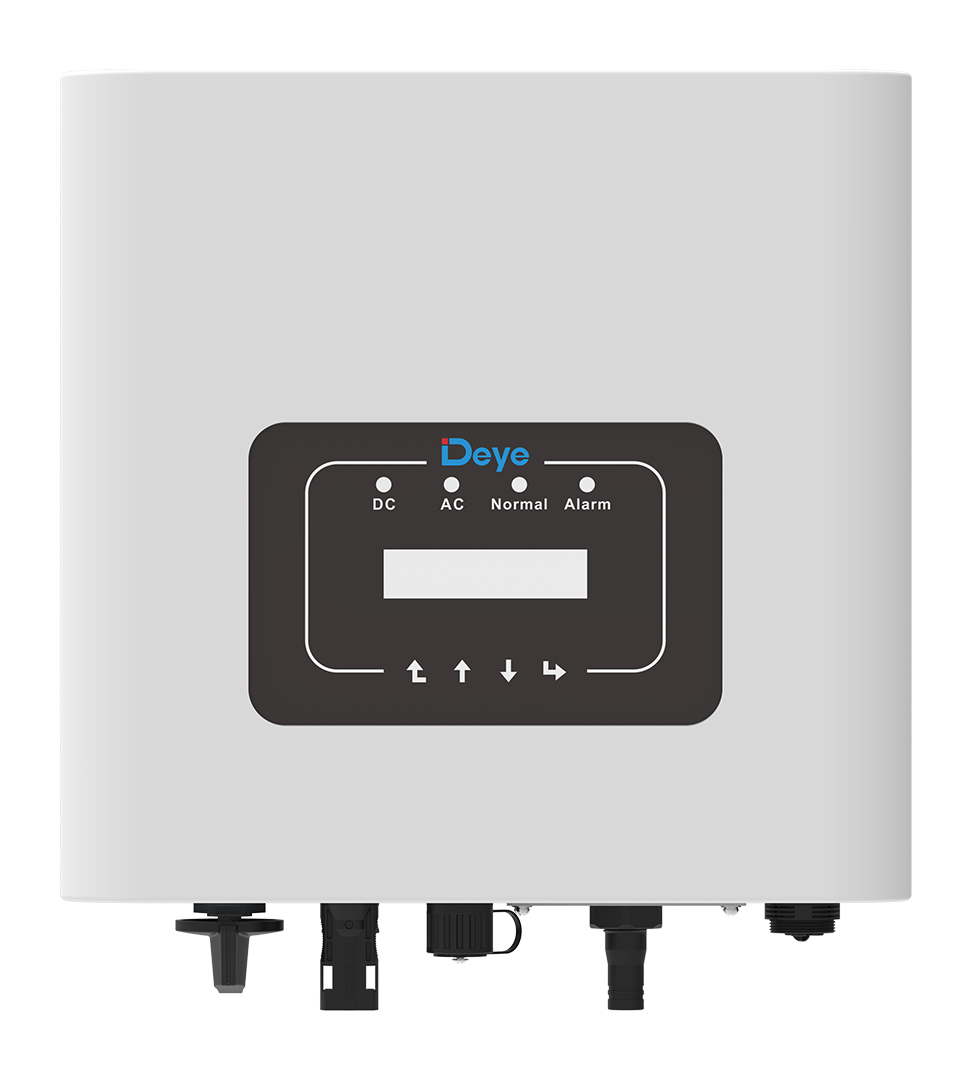

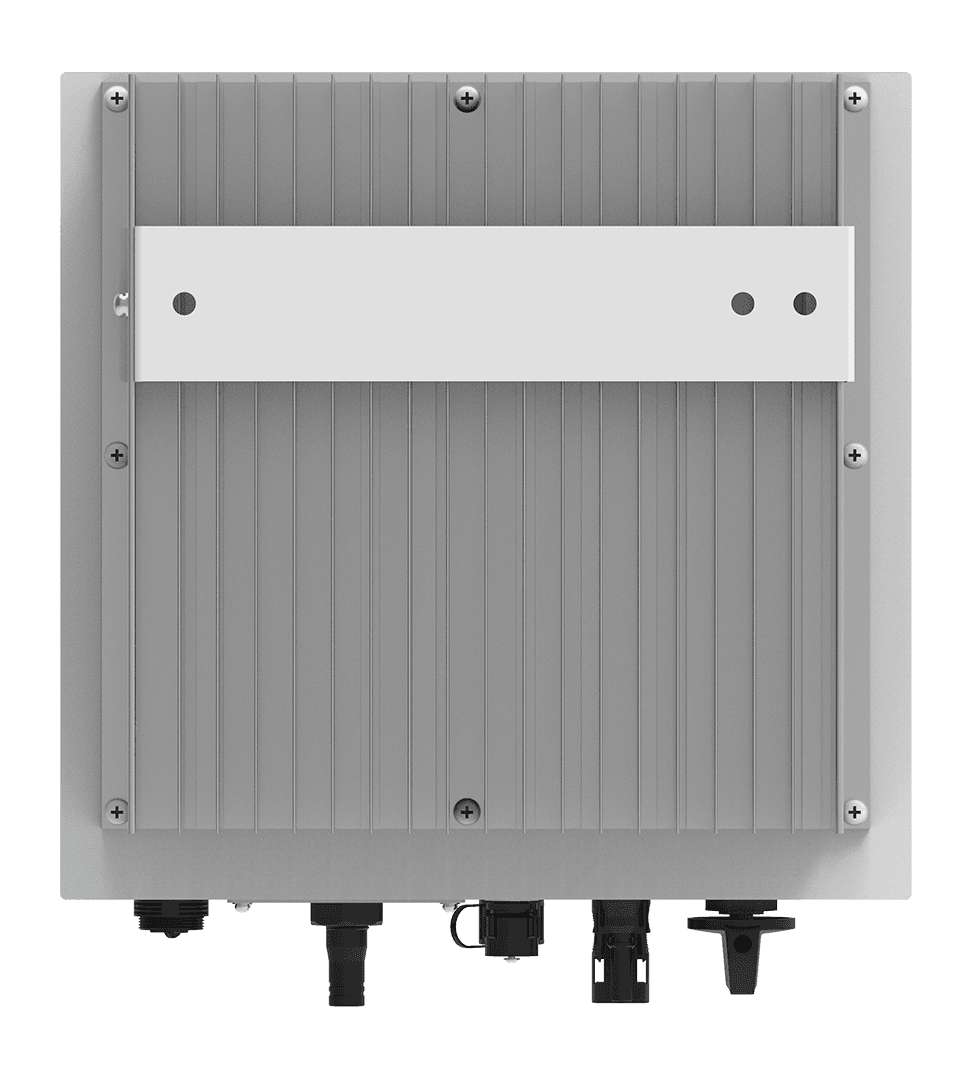

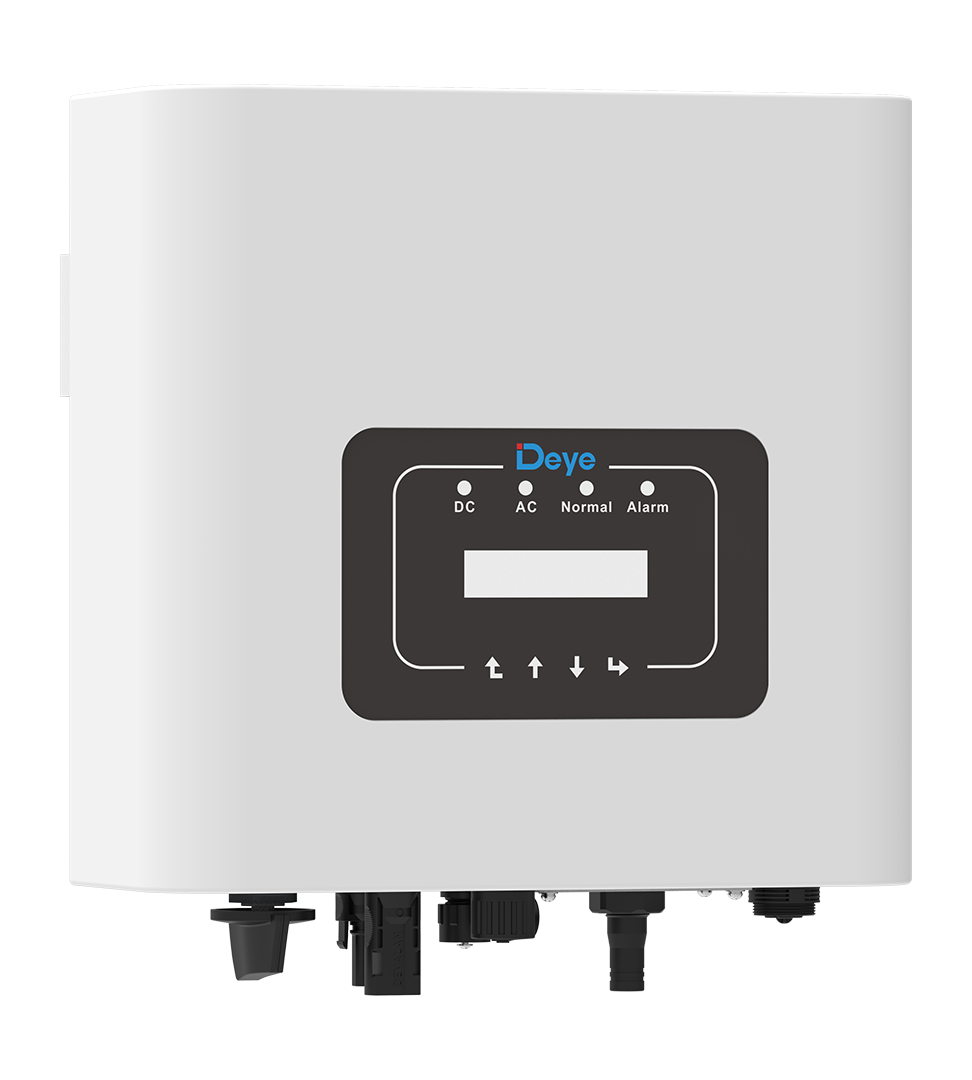

SUN-1/1.5/2/2.2/2.5/2.7/3/3.3/3.6/4K-G04P1-EU-AM1

Single Phase | 1-4kW | 1 MPPT / Safe & Reliable / Smart / User-friendly

1 MPP tracker, Max. efficiency up to 97.5%
Zero export application,VSG application
String intelligent monitoring (optional)
Wide output voltage range
Anti-PID function(Optional)
Low start-up voltage of 80V

Technical Specifications

SUN-1K-G04P1-EU-AM1
SUN-1.5K-G04P1-EU-AM1
SUN-2K-G04P1-EU-AM1
SUN-2.5K-G04P1-EU-AM1
SUN-3K-G04P1-EU-AM1
SUN-3.6K-G04P1-EU-AM1
SUN-4K-G04P1-EU-AM1
Feedback

Model	SUN-1K-G04P1-EU-AM1	SUN-1.5K-G04P1-EU-AM1	SUN-2K-G04P1-EU-AM1	SUN-2.2K-G04P1-EU-AM1	SUN-2.5K-G04P1-EU-AM1	SUN-2.7K-G04P1-EU-AM1	SUN-3K-G04P1-EU-AM1	SUN-3.3K-G04P1-EU-AM1	SUN-3.6K-G04P1-EU-AM1	SUN-4K-G04P1-EU-AM1
PV String Input Date
Max. PV Input Power(kW)	1.3	2	2.6	2.9	3.3	3.5	3.9	4.3	4.7	5.2
Max. PV Input Voltage(V)	550
Start-up Voltage(V)	80
MPPT voltage range(V)	70-500
Rated PV Input voltage(V)	360									420
Max. Operating PV Input Current (A)	20
Max. Input Short Circuit Current (A)	30
No. of MPP Trackers/No. of Strings MPP Tracker	1/1
AC Output Side
Rated AC Output Active Power (kW)	1	1.5	2	2.2	2.5	2.7	3	3.3	3.6	4
Max. AC Output Apparent Power (kVA)	1.1	1.65	2.2	2.42	2.75	2.97	3.3	3.63	3.96	4.4
Rated AC output current (A)	4.6/4.4	6.8/6.5	9.1/8.7	10/9.6	11.4/10.9	12.3/11.8	13.7/13.1	15/14.4	16.4/15.7	18.2/17.4
Max. AC Output Current(A)	5/4.8	7.5/7.2	10/9.6	11/10.6	12.5/12	13.5/13	15/14.4	16.5/15.8	18/17.3	20/19.2
Rated output voltage/range (V)	220/230 0.85Un-1.1Un
Grid Connection Form	L+N+PE
Rated Output Grid Frequency/Range(Hz)	50/45-55, 60/55-65
Power Factor Adjustment Range	0.8 leading to 0.8lagging
Total Current Harmonic Distortion THDi	<3%
DC Injection Current	<0.5%ln
Efficiency
Max. Efficiency	97.30%						97.50%
Euro Efficiency	96.90%						97.00%
MPPT Efficiency	＞99%
Equipment Protection
DC Reverse Polarity Protection	yes
AC Output Overcurrent Protection	yes
AC Output Overvoltage Protection	yes
AC Output Short Circuit Protection	yes
Thermal Protection	yes
Insulation Impedance Detection	yes
DC Component Monitoring	yes
Arc Fault Circuit Interrupter (AFCI)	Optional
Anti-islanding Protection	yes
Residual Current Detection	yes
Surge Protection Level	TYPE II(DC),TYPE II(AC)
DC Switch	yes
Interface
Communication Interface	RS485/RS232
Monitor Mode	GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range (°C)	-25 to +65℃, >45℃ Derating
Permissible Ambient Humidity	0~100%
Permissible Altitude (m)	2000m
Noise (dB)	≤ 35
Ingress Protection(IP) Rating	IP 65
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC),OVC III(AC)
Cabinet Size (WxHxD mm)	280mm272.5mm171.5mm（Excluding connectors and brackets）
Weight [kg]	5.6
Warranty	5 Years
Type Of Cooling	natural cooling
Grid Regulation	IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,G98,G99,VDE-AR-N 4105
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
