| Model |

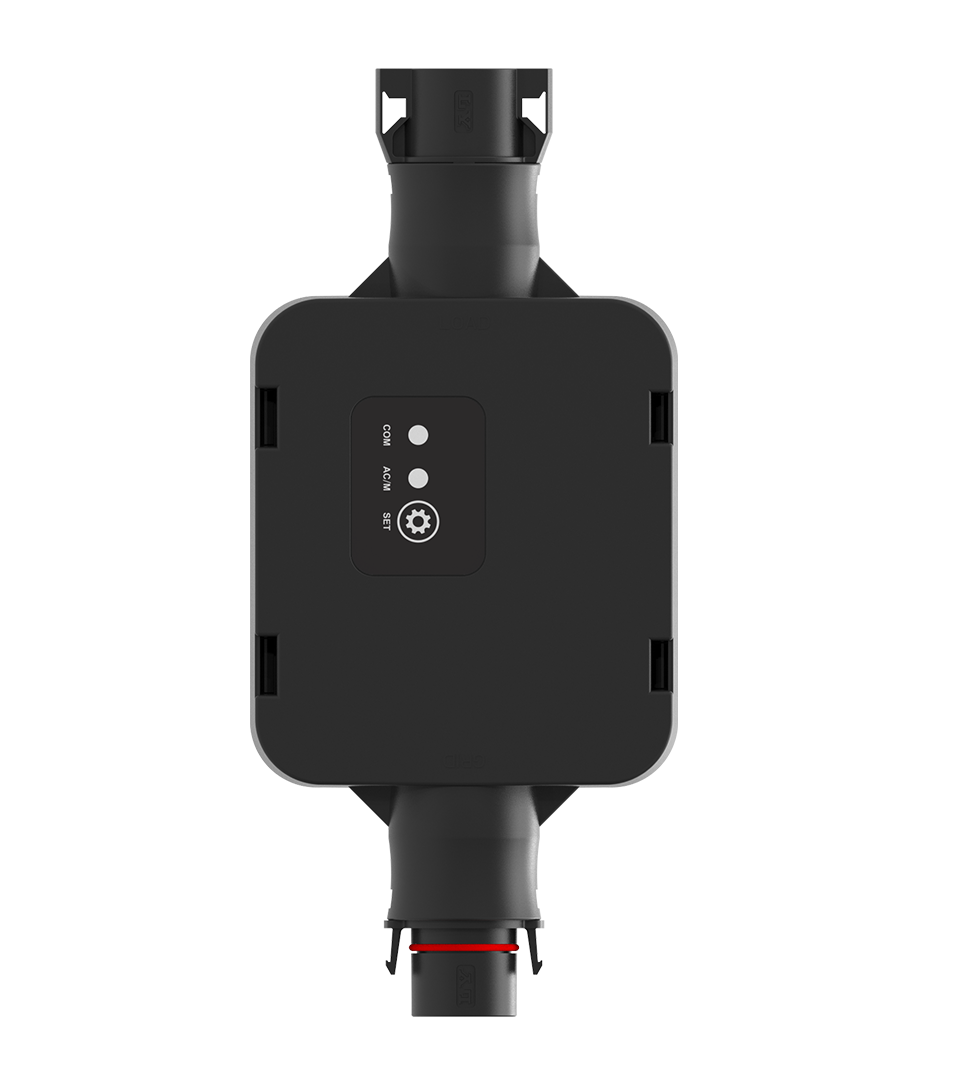

SUN-SMART-SWITCH01P3 |
Electrical Parameters
|
| Voltage Range |
94-238V a.c. (Phase voltage) |
| Connection Type |
L1/N (single phase), L1/L2/L3/N (three phase) |
| Maximum current |
25A a.c. (Phase current) |
| Frequency and Range |
50Hz (45Hz-55Hz)/60Hz (55Hz-65Hz) |
| Connection |
Connector plug-in type |
| Communication |
| Communication Model |
LoRa |
| Lora Communication Distance |
≈200m (Barrier free) |
| Basic Parameters |
| Working Temperature Range |
-40 to +45°C |
| Allow Environmental Humidity |
0-100% RH |
| Ingress Protection (IP) Rating |
IP65 |
| Protection Level |
CLASS I |
| Allowable Altitude |
≤4000m |
| Product size (WxHxD) |
96.7x204.7x37.7mm |
| Weight |
0.4kg |
| Warranty |
2 Years |
| Standard |
IEC/EN 61010-1 |
| LoRa Parameters |
| Frequency Range |
863MHz-870MHz |
| Antenna |
Internal antenna |
| Antenna Gain |
1.58dBi@868MHz |
