Energy Meter inverter

Reliability Safety Capacity

Accessory & Monitoring

Energy Meter

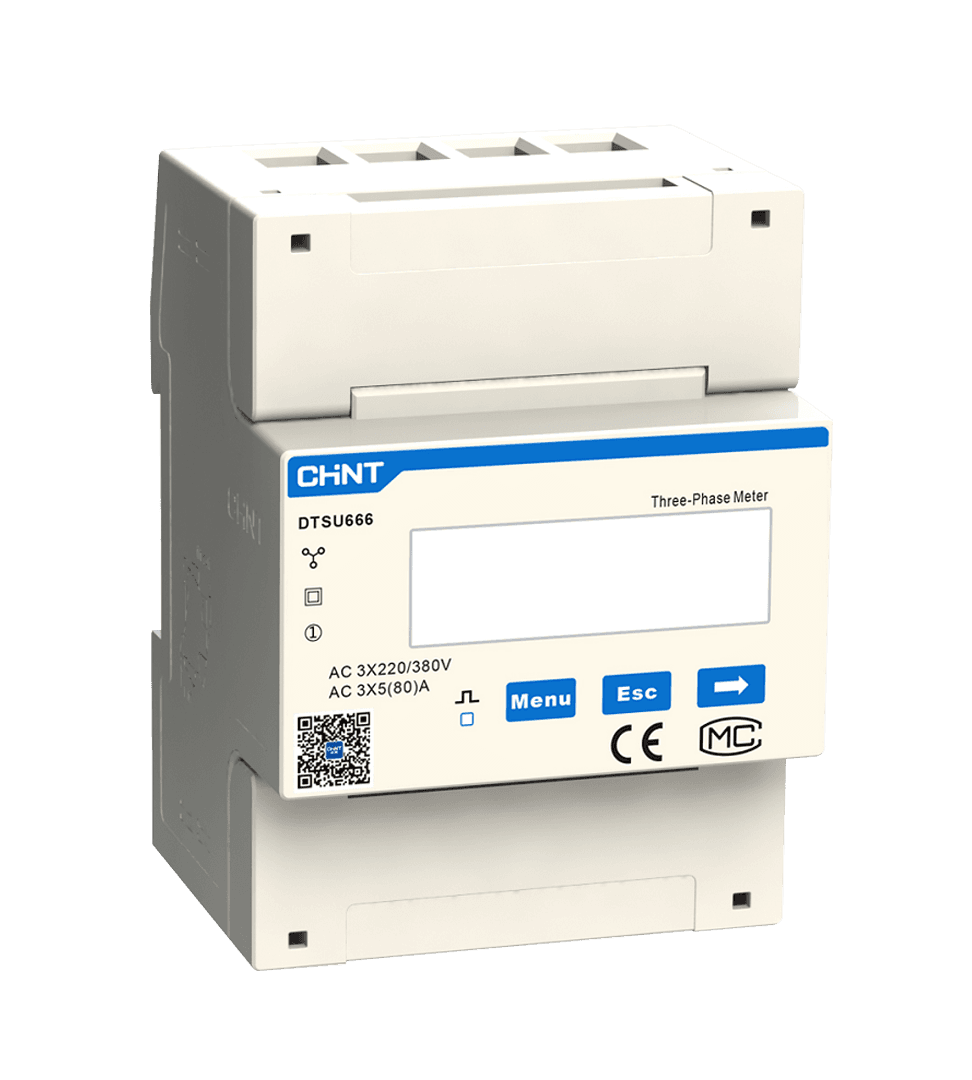

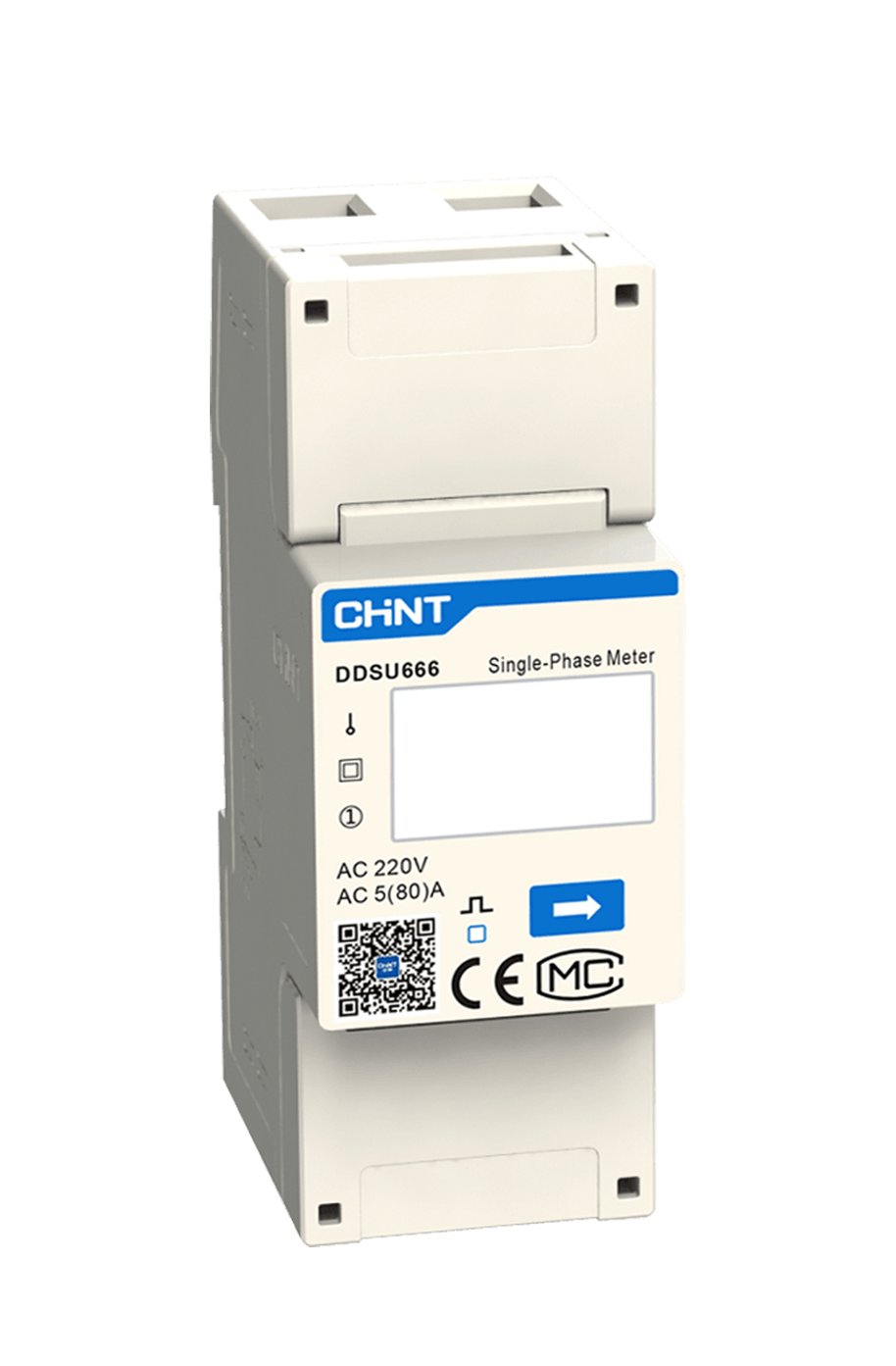

The DDSU666 Single-phase electronic type guide rail mounting electric energy meters. It is used to monitor and display the grid power (voltage, current frequency and energy), and transfer this info to solar inverter via RS485 communication in zero-export system.   The DTSU666 series three phase four wire electronic energy meter (din-rail) is designed based on power monitoring and energy metering demands for PV power plants etc. Mainly applied into the measurement and display for the grid parameters in the zero-export system, including grid voltage, current, active power, reactive power, frequency, etc.

Datasheet download
Energy Meter.pdf
Energy Meter inverter
Energy Meter inverter

Accessory & Monitoring

Energy Meter

  • Local LCD display, RS485 communication
  • Adopting the standard DIN35mm din rail mounting
  • Small volume, easy installation and easy communication
  • Positive and reverse active power, four quadrant reactive power metering

Technical Specifications

  • Model

    DDSU666

    DTSU666

    Max. direct current measurement (A)

    60

    80

    Direct Voltage measurement between phases

    /

    176-458V

    Direct measurement between phase and neutral

    176~264V

    100-265V

    Accuracy Class

    Active power

    Classl

    Reactive power

    Class2

    Power Supply

    Power consumption

    ≤1W / 8VA

    ≤1.5W / 6VA

    AC power supply input voltage

    176-264V

    100-265V

    AC power supply input frequency

    50/60Hz

    Generation Specifications

    Dimenstions (L/H/W) in mm

    36×85×66

    100×72×66

    Weight (kg)

    0.21

    0.44

    Mounting options

    DIN Rail

    Degree of protection

    IP51

    Display

    LCD

    Communication interface

    RS485

    Max. number of devices to connect

    4

    Regulated working temperature range

    -25℃~+55℃

    -10℃~+45℃

    Limited working temperature range

    -40℃~+70℃

    -25℃~+75℃

    Humidity

    ≤75%

    Warranty

    1.5 years

    Zero-export Application Diagram
