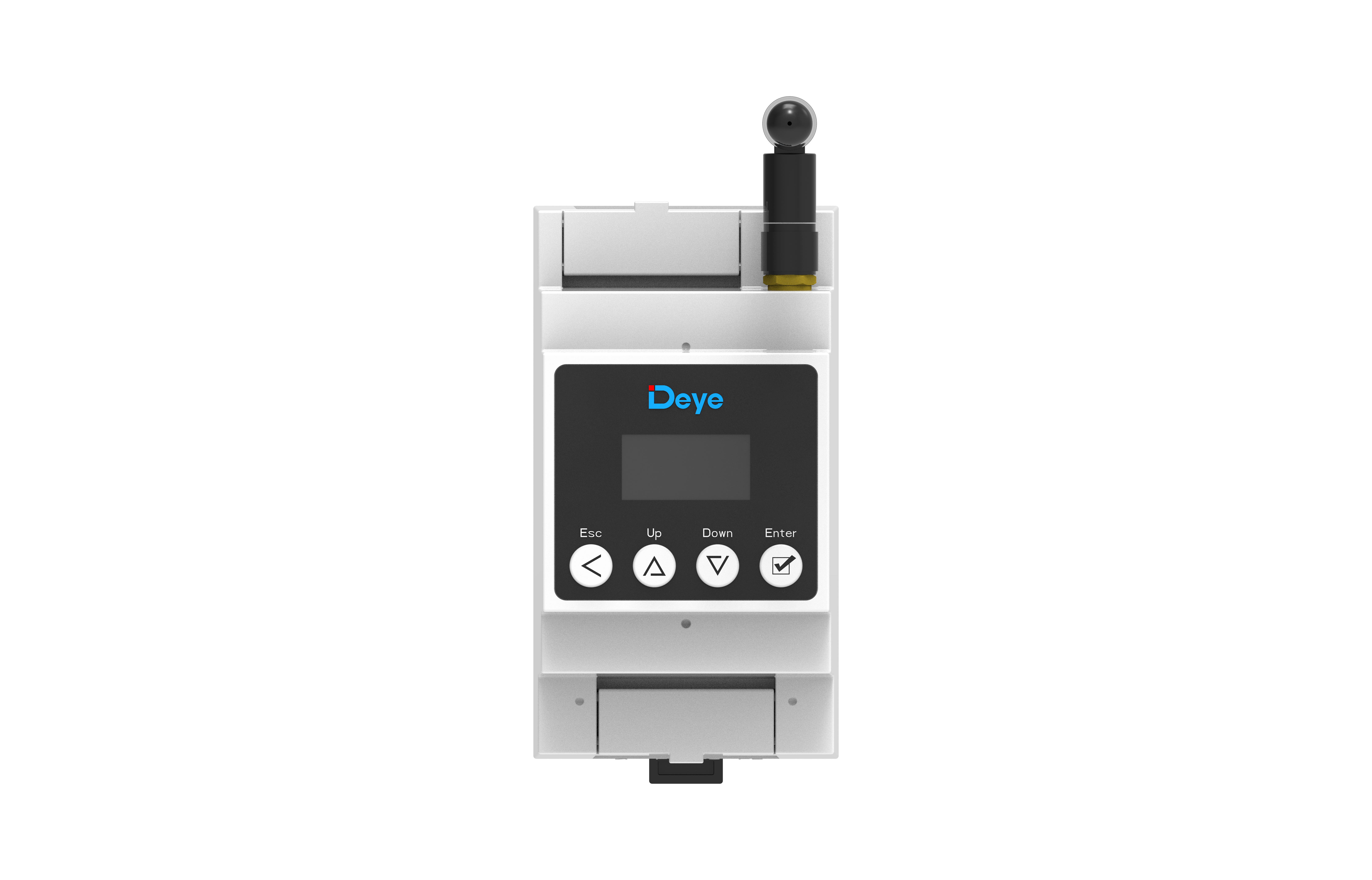

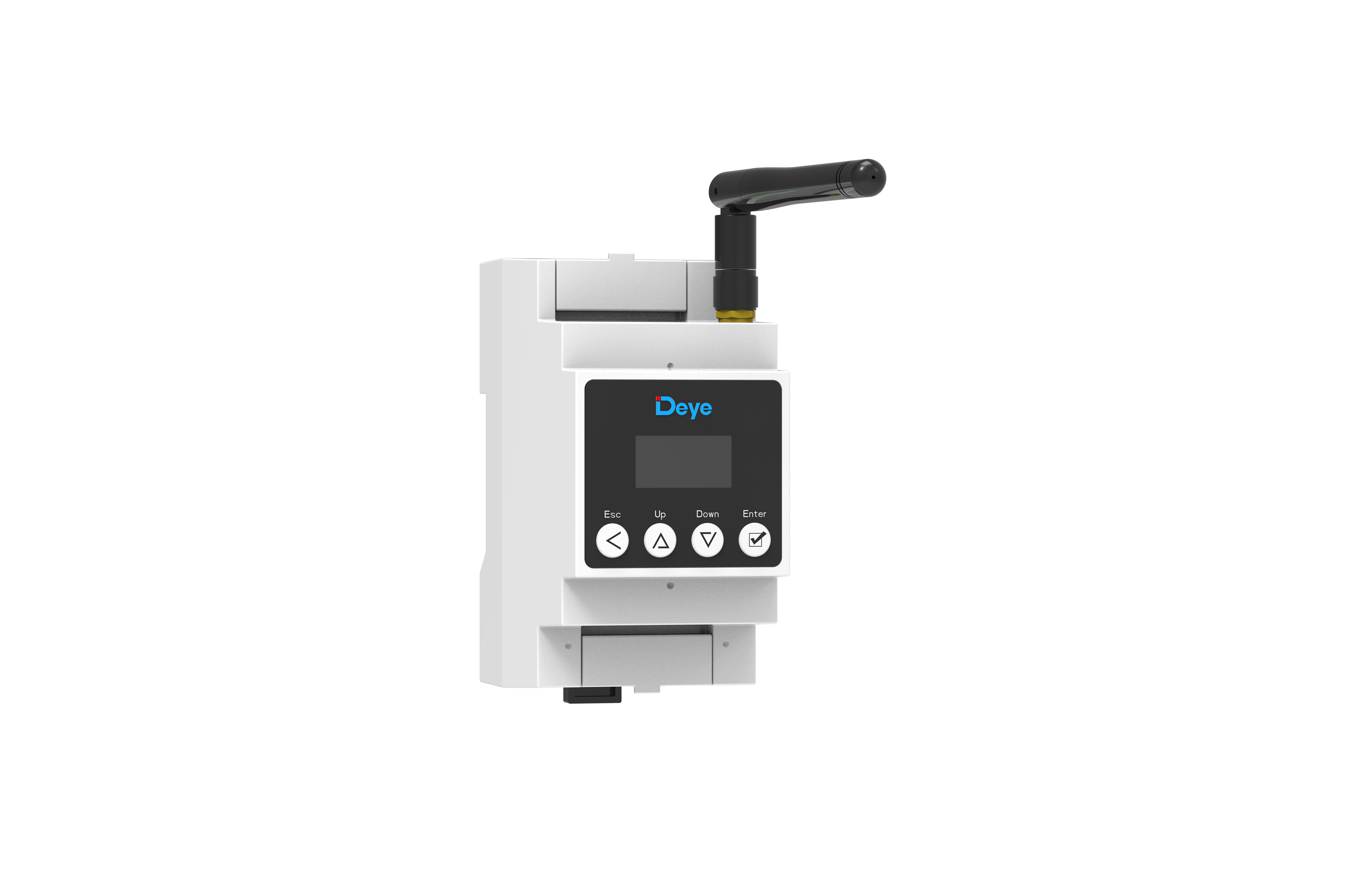

Wireless CT 01

>> Download Datasheet <<

Model	SUN-SMART-CT01
Electrical parameters
ConnectionType	L1/N(Single phase), L1/L2/L3/N(Three phase)
CT (Rated Secondary Output)	50mA
OperationVoltage	85~300Va.c.(L-N)
Rated Frequency/Range	50Hz (45Hz-55Hz)/60Hz (55Hz-65Hz)
Self ConsumptionPower	≤2W
AC voltage withstand	4KV/1min
Accuracy
Voltage	±0.1V
Current	±0.01A
Frequency	±0.01Hz
Power	±1W
Communication and Display
Communication Interface	Lora/RS485
Lora Communication Distance	≈200m (Barrier free)
Display	LCD
Display Data	Voltage, Current, Active power, Reactive power, Frequency, PowerFactor, Energy
General Data
OperationTemperature	-40 to +60℃
OperationHumidity	0-75%
Ingress Protection(IP) Rating	IP20
Altitude	≤4000
Mounting	DIN-Rail Mounting
Size	53x96x64mm
Weight	0.15kg
Warranty	5 Years
Certification standards	IEC/EN 61010-1
Lora Data
Frequency Range	863MHz-870MHz
Antenna	External Antenna
Antenna Gain	0.79dBi@868MHz
