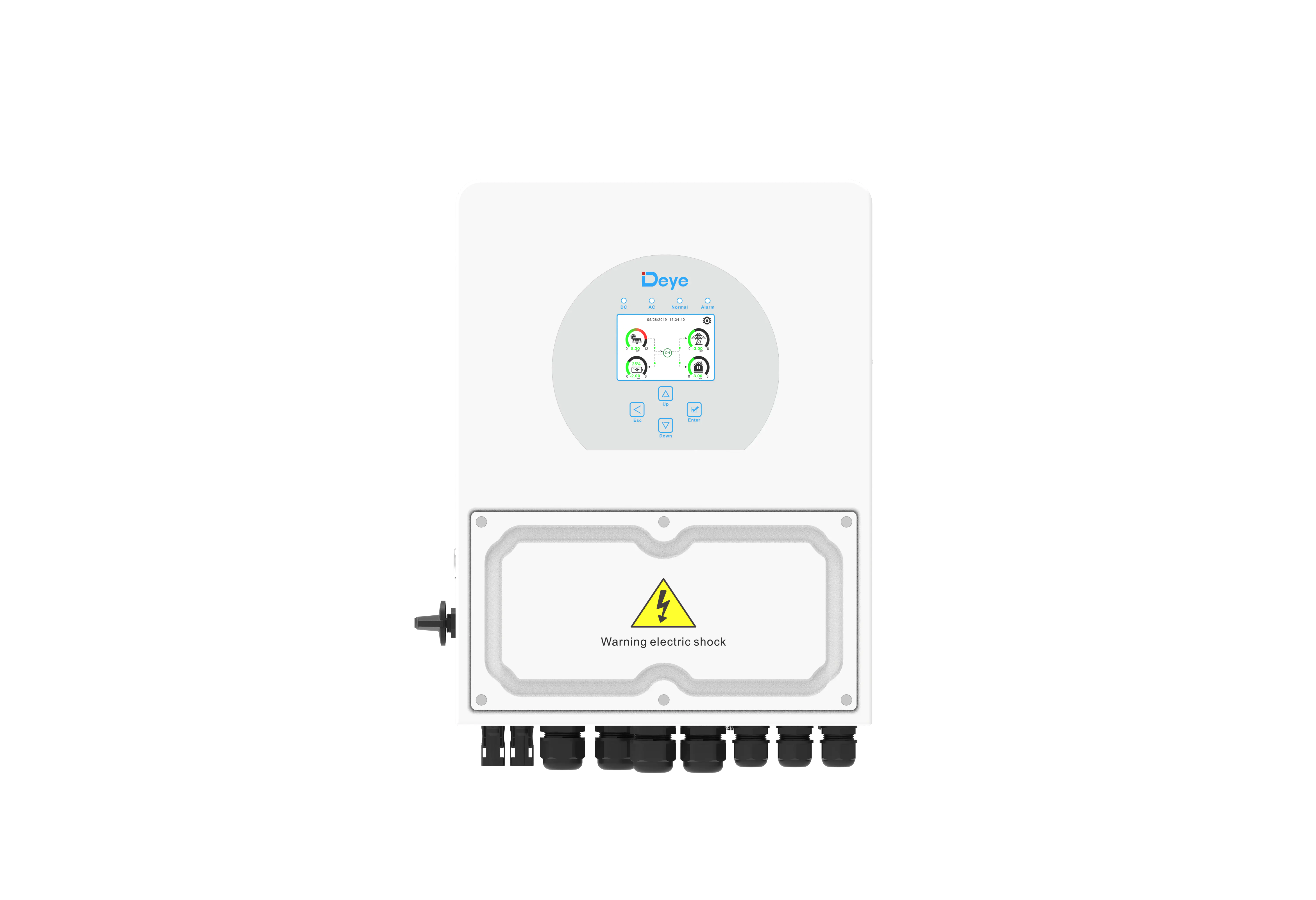

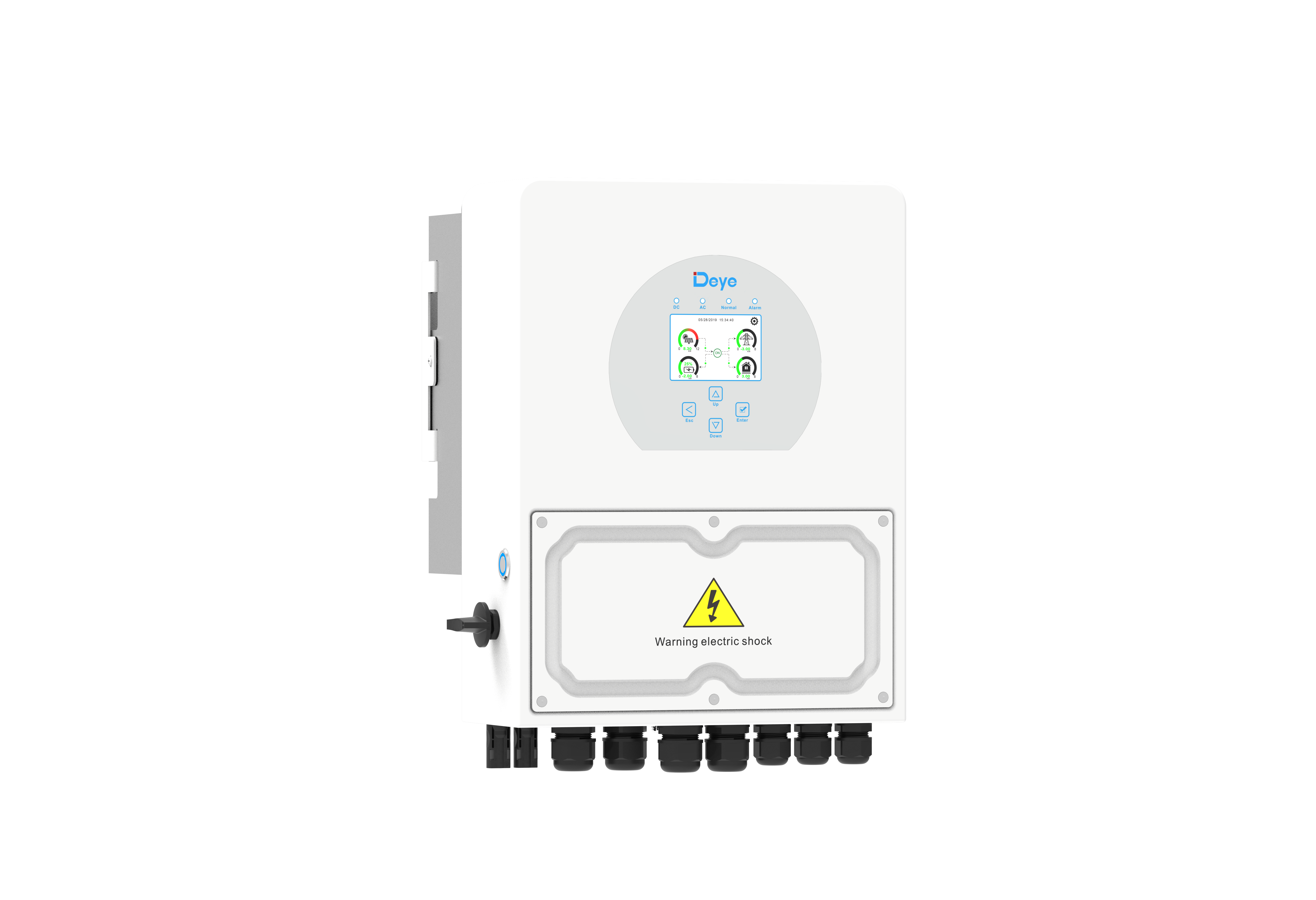

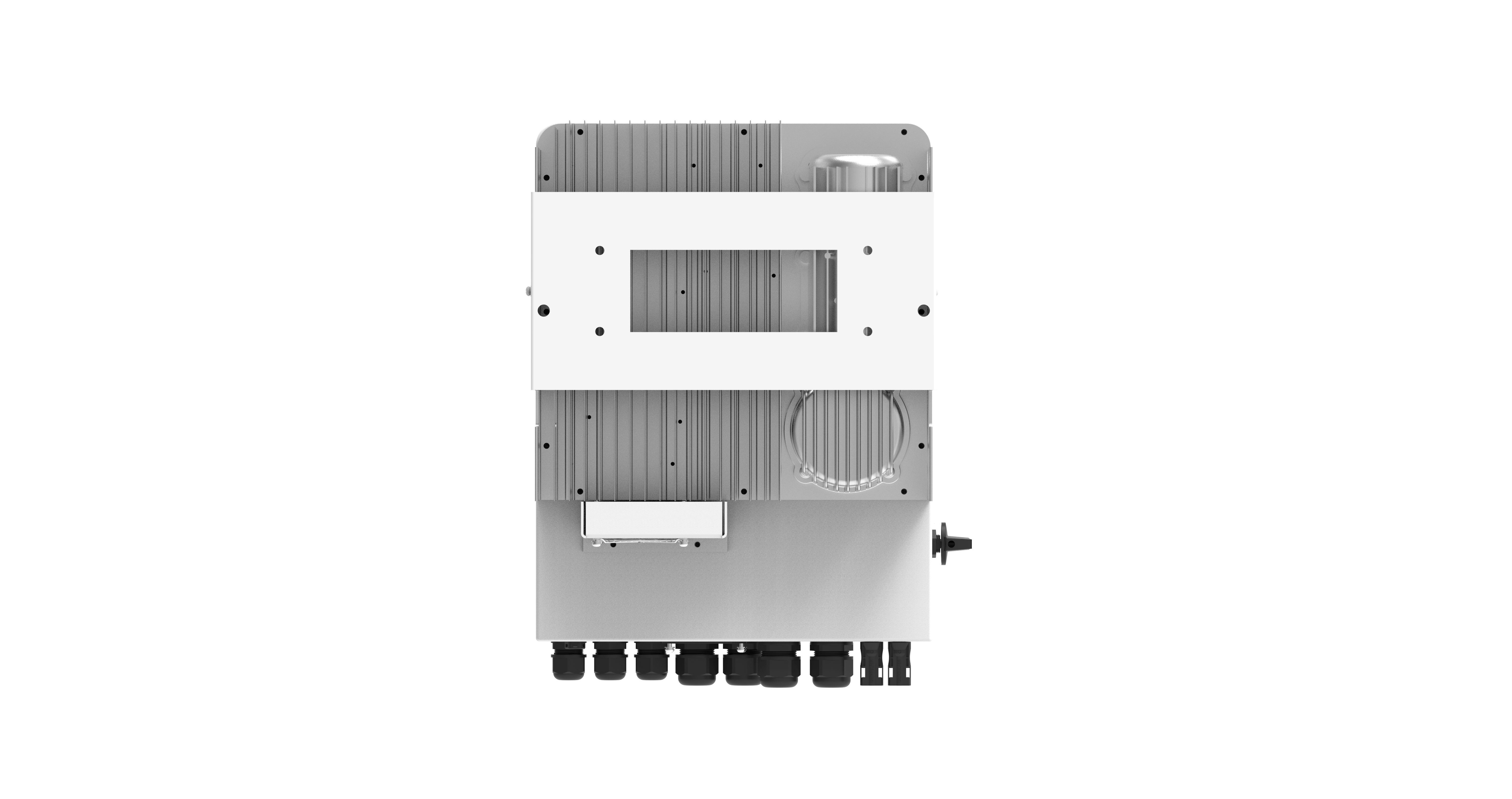

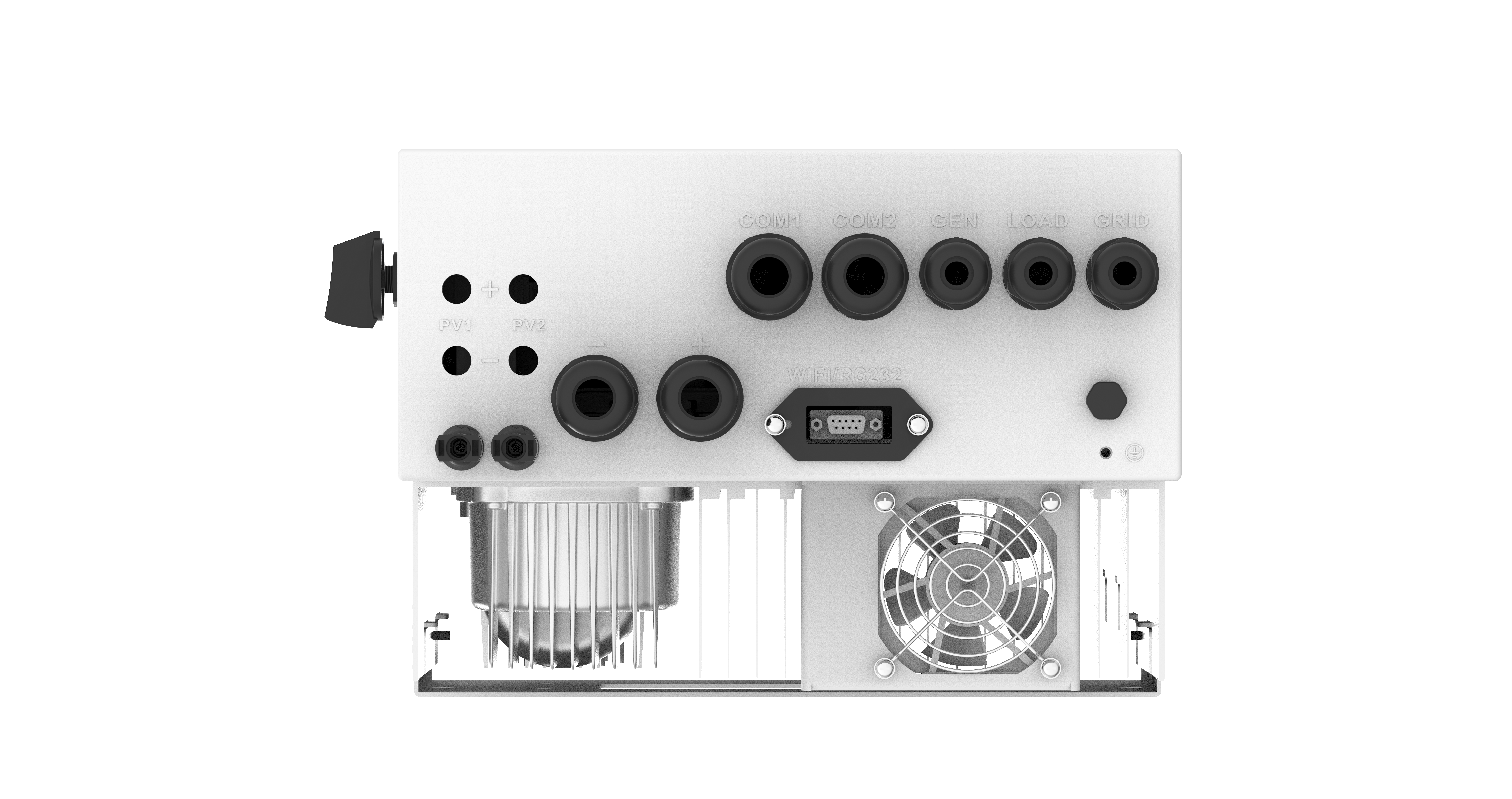

SUN-3/3.6/5/6K-SG04LP1-EU

Single Phase Hybrid Inverter | 3-6kW | 2 MPPT | LV Battery Supported

Ningbo Deye Inverter Technology Co.，Ltd.

Remotely shutdown function

Smart Monitoring Platform

Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

Colorful touch LCD, IP65 protection degree
AC couple to retrofifit existing solar system
Max. 16 pcs parallel for on-grid and off-grid

operation; Support multiple batteries parallel
Max. charging/discharging current of 140A
6 time periods for battery charging/discharging
Support storing energy from diesel generator

DOWNLOAD AREA

>> Download Certificate <<

certificate_australia+as4777.2-1

certificate_belgium+nbn-en50549-1-1

certificate_emc+en62920-1

certificate_emc+eniec61000-11

certificate_en50549-1-5

certificate_iec60068-5

certificate_iec61683-6

certificate_iec61727-6

certificate_iec62116-6

certificate_lvd+en62109-4

certificate_netherlands+nen-en50549-1-4

certificate_poland+pn-en50549-1-5

certificate_southafrica+nrs-097-4

certificate_tuvmark+en62109-4

eudeclaration-sun-3-6k-sg04lp1+231011003

Technical Specifications

SUN-3K-SG04LP1-24-EU
SUN-3K-SG04LP1-EU
SUN-3.6K-SG04LP1-EU
SUN-5K-SG04LP1-EU
SUN-6K-SG04LP1-EU
Feedback

Model	SUN-3K-SG04LP1-24-EU	SUN-3K-SG04LP1-EU	SUN-3.6K-SG04LP1-EU	SUN-5K-SG04LP1-EU	SUN-6K-SG04LP1-EU
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range(V)	20-30	40-60
Max.Charging Current(A)	140	70	90	120	135
Max.Discharging Current(A)	140	70	90	120	135
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of battery input	1
PV String Input Data
Max. PV Access Power (W)	6000	6000	7200	10000	12000
Max PV Input Power（W）	4800	4800	5760	8000	9600
Max PV Input Voltage（V）	500
Start-up Voltage（V）	125
MPPT Voltage Range（V）	150-425
Rated PV Input Voltage(V)	370
Max Input Short-Circuit Current（A）	17		17+17
Max Operating PV Input Current（A）	13		13+13
No.of MPP Trackers/No.of String Per MPP Tracker	1/1		2/1+1
AC Input/Output Data
Rated AC Input/Output Active Power（W）	3000		3600	5000	6000
Max AC Input/Output Apparent Power （VA）	3300		3960	5500	6600
Peak Power (off-grid)（W）	2 times of rated power,10s
Rated AC Input/Output Current（A）	13.6/13		16.4/15.7	22.7/21.7	27.3/26.1
Max AC Input/Output Current（A）	15/14.3		18/17.2	25/23.9	30/28.7
Max Continuous AC Passthrough (grid to load)（A）	35				40
Rated Input/Output Voltage/Range(V)	220V/230 0.85Un-1.1Un
Grid Connection Form	L+N+PE
Rated Input/Output Grid Frequency/Range	50Hz/45Hz-55Hz 60Hz/55Hz-65Hz
Power Factor Adjustment Range	0.8 leading to 0.8lagging
Total Current Harmonic Distortion THDi	<3% (of nominal power)
DC Injection Current	<0.5%ln
Efficiency
Max Efficiency	97.6%
Euro Efficiency	96.5%
MPPT Efficiency	＞99%
Equipment Protection
Integrated	DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
Surge Protection Level	TYPE II(DC),TYPE II(AC)
Interface
Communication Interface	RS485/RS232/CAN
Monitor Mode	GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range	-40 to+60℃,＞45℃ Derating
Permissible Ambient Humidity	0~100%
Permissible Altitude	2000m
Noise	＜30
Ingress Protection(IP) Rating	IP 65
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC),OVC III(AC)
Cabinet size（WHD）[mm]	330433229（Excluding connectors and brackets）
Weight[kg]	17
Warranty	5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Type Of Cooling	natural cooling				Intelligent air cooling
Grid Regulation	IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G98,G99,VDE-AR-N 4105
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
