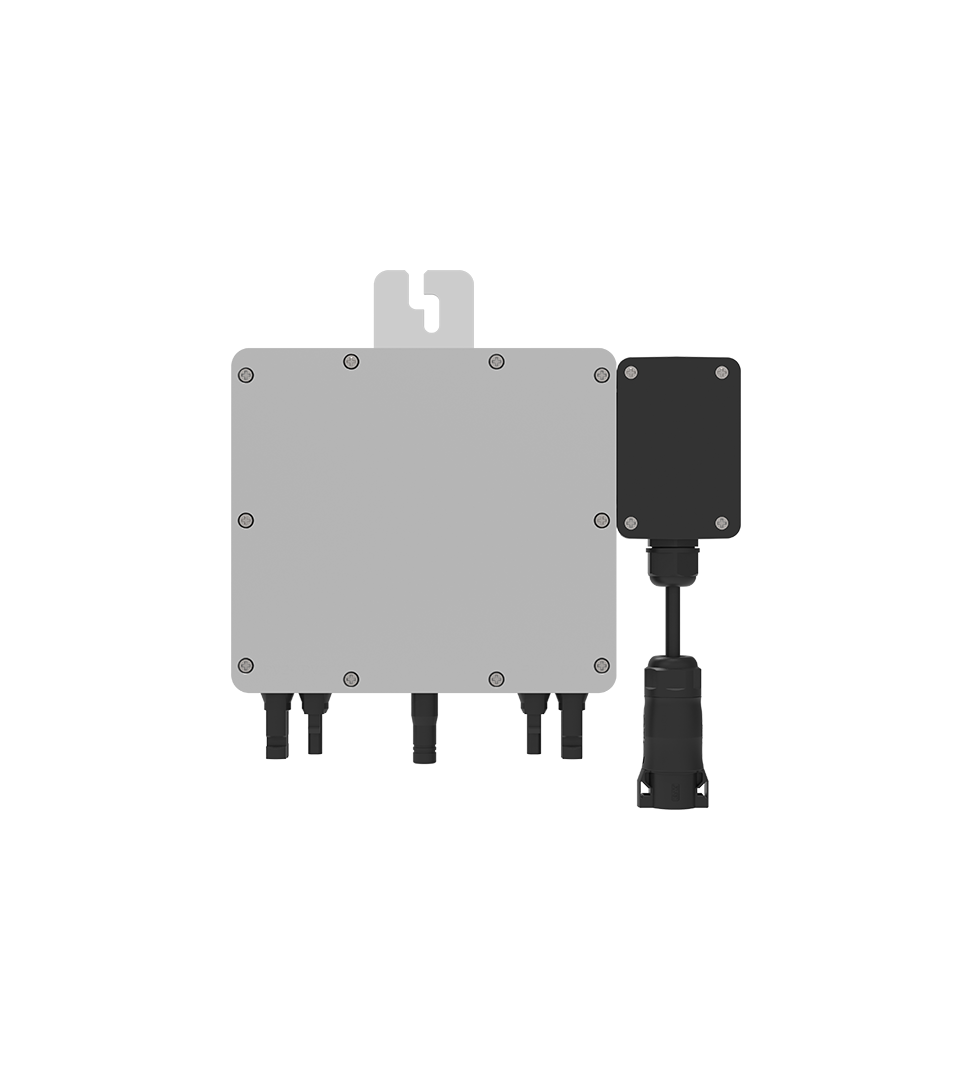

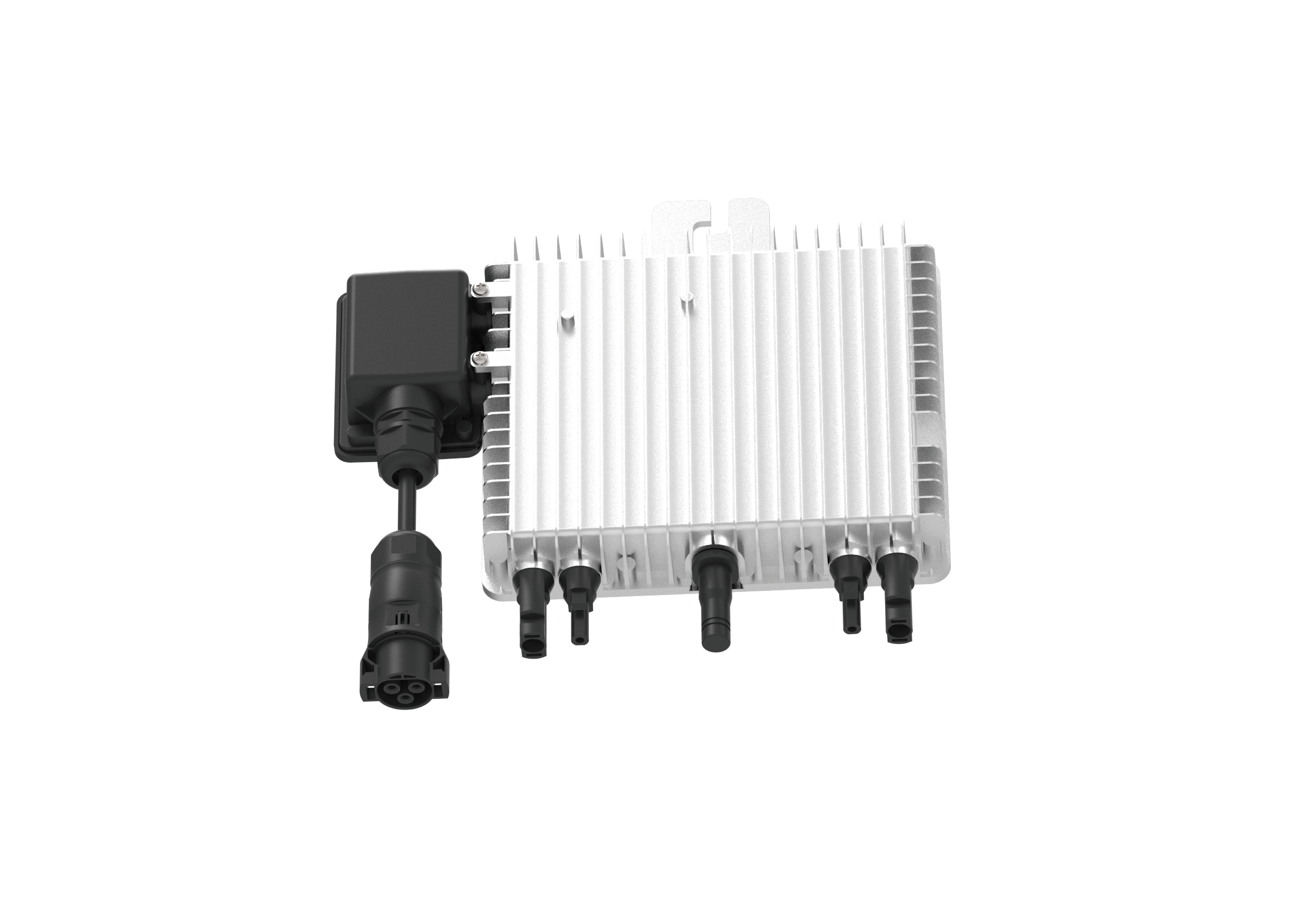

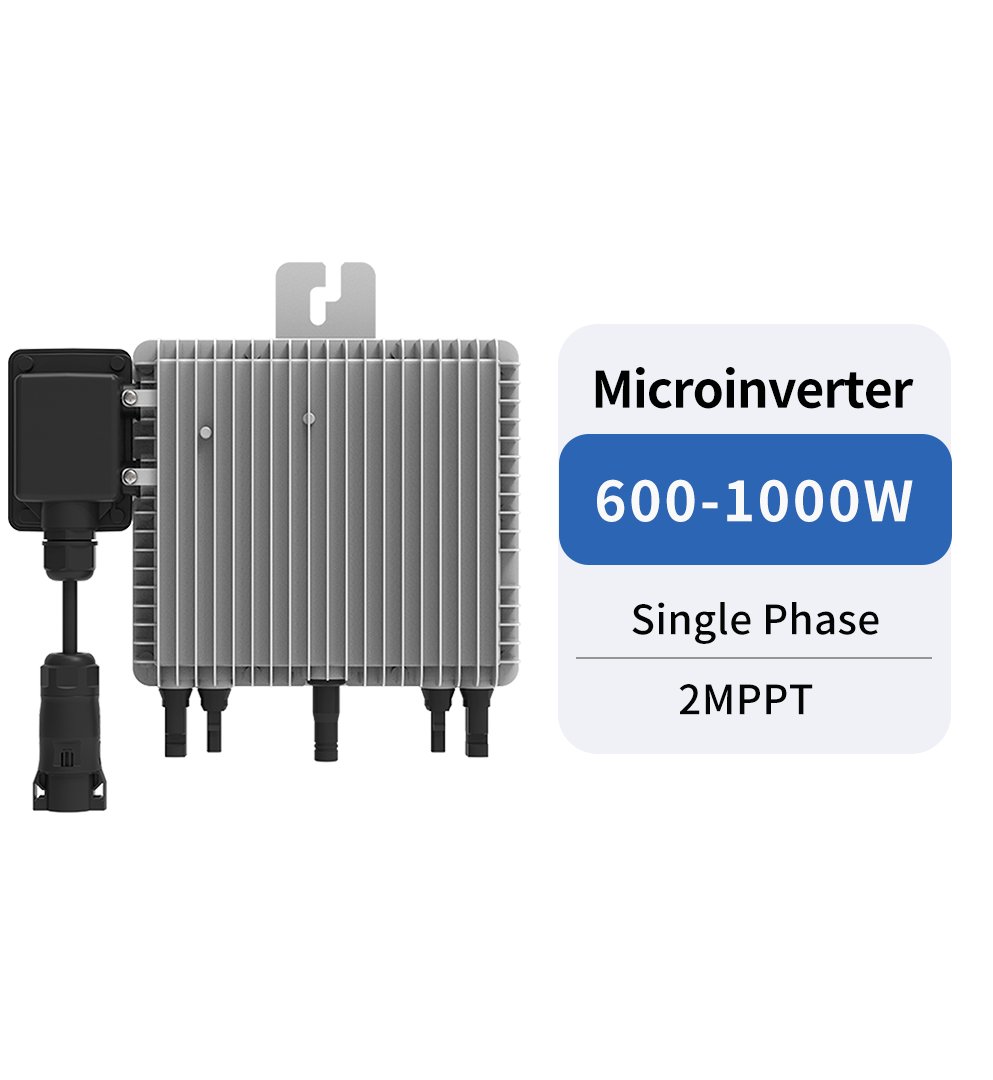

SUN-M60/80/100G4-EU-Q0 | 600-1000W | Single Phase | 2 MPPT | Micro Inverter

Higher returns / Safe / Smart / User-friendly

Remotely shutdown function

Smart Monitoring Platform

Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

2 MPP trackers, module level monitoring
IP67 protection degree
WIFI communication
Rapid shutdown function
Easy installation, suitable for quick-plug balcony PV system
<100ms AC fast discharge, compliant with new required standard DIN VDE V 0126-95 (<200ms) to protect human safety
Complete NS protection with self-check function
External relay advantage with low temperature, long life,easier maintenance
25 years design lifetime and 15 years warranty
With integrate WIFI

DOWNLOAD AREA

>> Download Certificate <<

certificate_germany+vde4105

certificate_germany+vde4105-nsprotection

certificate_red

eudeclaration-sun-m60-100g4-eu-q0-231012001

Technical Specifications

SUN-M60G4-EU-Q0
SUN-M80G4-EU-Q0
SUN-M100G4-EU-Q0
Feedback

Model	SUN-M60G4-EU-Q0	SUN-M80G4-EU-Q0	SUN-M100G4-EU-Q0
PV String Input Data
Max. PV Input Power(W)	210-420(2 Pieces)	210-560(2 Pieces)	210-700(2 Pieces)
Max. PV Input Voltage(V)	60
Start-up Voltage(V)	20
MPPT voltage range(V)	25-55
Rated PV Input voltage(V)	42.5
Max. Input Short-Circuit Current (A)	19.5+19.5
Max. Operating PV Input Current(A)	13+13
No. of MPP Trackers/No. of String per MPP Tracker	2/1
AC Output Side
Rated AC Output Active Power(W)	600	800	1000
Max.AC Output Apparent Power(VA)	600	800	1000
Rated AC output current (A)	2.8/2.7	3.7/3.5	4.6/4.4
Max.AC Output Current(A)	2.8/2.7	3.7/3.5	4.6/4.4
Rated output voltage/range (V)	220/230 0.85Un-1.1Un
Grid Connection Form	L/N/PE
Rated Output Grid Frequency/range(Hz)	50/45-55, 60/55-65
Max. unit per branch	8	6	5
Power Factor Adjustment Range	0.9 leading to 0.9lagging
Total Current Harmonic Distortion THDi	<3%
DC Injection Current	<0.5%ln
Efficiency
Max. Efficiency	96.5%
Euro Efficiency		96.0%
MPPT Efficiency	>99%
Equipment Protection
DC Polarity Reverse Connection Protection	YES
AC Output Overcurrent Protection	YES
AC Output Overvoltage Protection	YES
AC Output Short Circuit Protection	YES
Thermal Protection	YES
DC Terminal Insulation Impedance Monitoring	YES
Power Network Monitoring	YES
Island protection monitoring	YES
Earth Fault Detection	YES
Overvoltage Load Drop Protection	YES
Interface
Communication Interface	WiFi
General Data
Operating Temperature Range (°C)	-40 to +65℃, >45℃ Derating
Permissible Ambient Humidity	0~100%
Permissible Altitude (m)	2000m
Noise (dB)	≤ 25
Ingress Protection(IP) Rating	IP 67
Inverter Topology	Isolated
Over Voltage Category	OVC II(DC),OVC III(AC)
Cabinet Size（WHD）[mm]	280.519040（Excluding connectors and brackets）
Weight [kg]	3
Warranty [year]	15 Years
Type Of Cooling	natural cooling
Grid Regulation	IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002, ,G98,VDE-AR-N 4105
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
