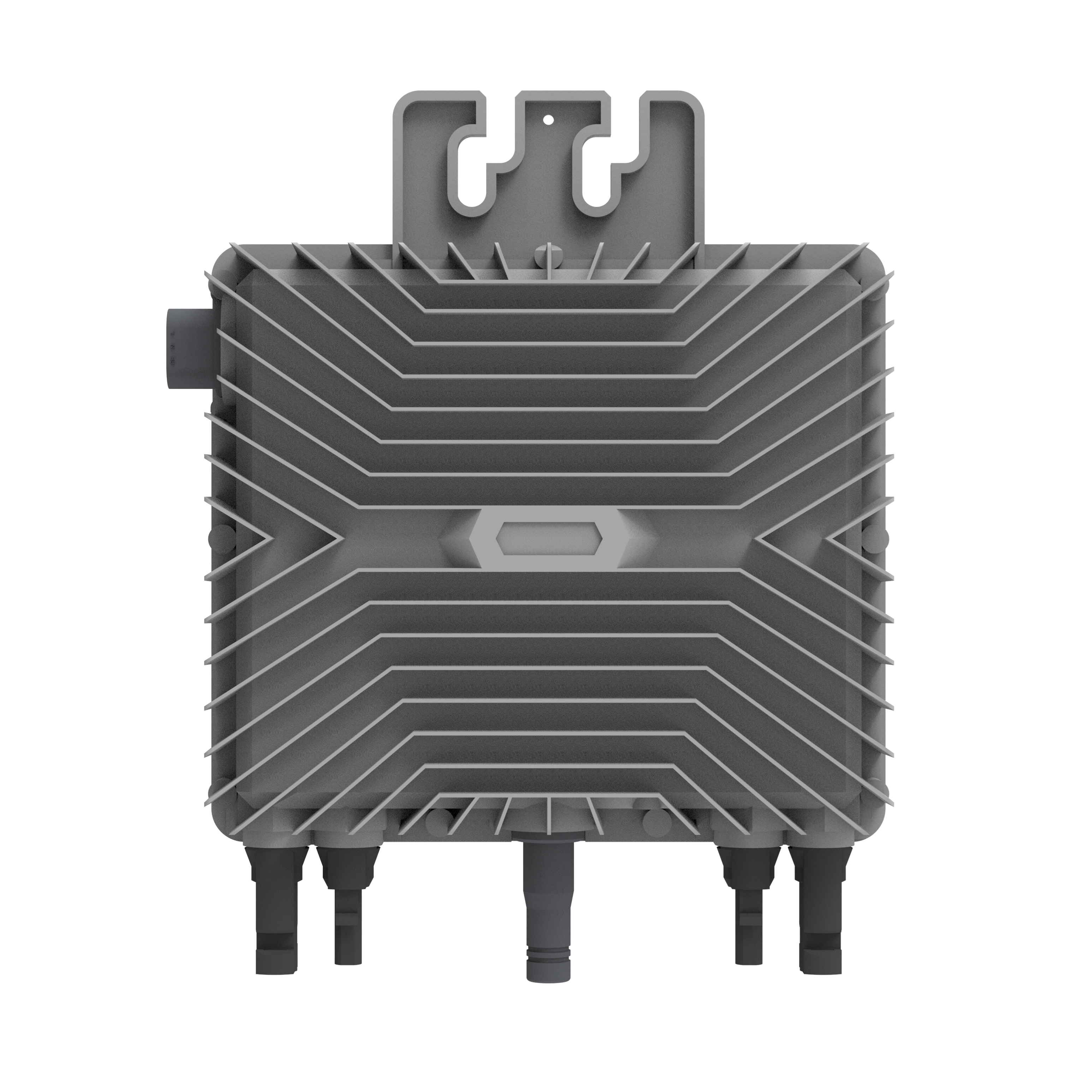

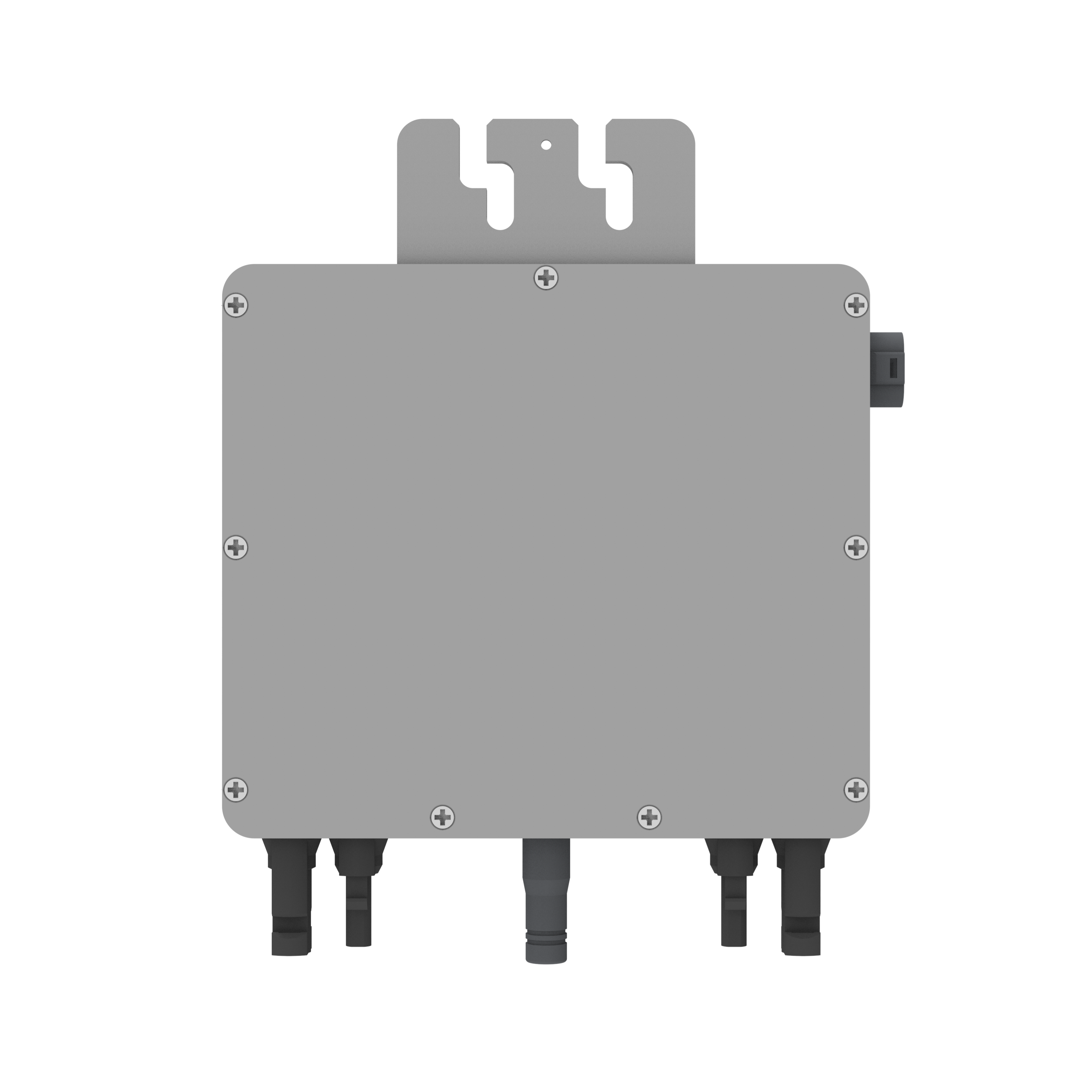

SUN-E60/80/100/110G4-EU-Q0

Name: SUN-E60/80/100/110G4-EU-Q0
Brand: Ningbo Deye Inverter Technology Co.，Ltd.

Micro Inverter | 600-1100W | Single Phase | 2MPPT

Rapid shutdown function
Complete NS protection with self-check function
Wi-Fi communication
Easy installation, suitable for quick-plug balcony PV systems
With integrate Wi-Fi
25 years design lifetime,10 years warranty
IP67 protection degree
2 MPP tracker, module level monitoring
<100ms AC fast discharge, compliant with DIN VDE 0126-95 (<200ms) safety standard

DOWNLOAD AREA

>> Download Datasheet <<

Technical Specifications

SUN-E(60-110)G4-EU-Q0
Feedback

Model	SUN-E60G4-EU-Q0	SUN-E80G4-EU-Q0	SUN-E100G4-EU-Q0	SUN-E110G4-EU-Q0
PV String Input Data
Max. PV Input Power(W)	210-420(2 Pieces)	210-560(2 Pieces)	210-700(2 Pieces)	210-770(2 Pieces)
Max. PV Input Voltage(V)	60
Start-up Voltage(V)	20
MPPT voltage range(V)	25-55
Rated PV Input voltage(V)	42.5
Max. Operating PV Input Current(A)	18+18
Max. Input Short-Circuit Current (A)	27+27
No. of MPP Trackers/ No. of Strings MPP Tracker	2/1
AC Output Data
Rated AC Output Active Power (W)	600	800	1000	1100
Max. AC Output Apparent Power (VA)	600	800	1000	1100
Rated AC Output Current (A)	2.8/2.7	3.7/3.5	4.6/4.4	5/4.8
Max. AC Output Current (A)	2.8/2.7	3.7/3.5	4.6/4.4	5/4.8
Rated input/output voltage	220/230V 0.85Un-1.1Un L/N/PE
Rated Output Grid Frequency/Range(Hz)	50/45-55, 60/55-65
Power Factor Adjustment Range	0.9 leading-0.9 lagging/0.95 leading-0.95lagging
Total Current Harmonic Distortion THDi	<3%
DC Injection Current	<0.5%ln
Efficiency
Max. Efficiency	96.5%
Euro Efficiency	96.0%
MPPT Efficiency	>99%
Equipment Protection
DC Reverse Polarity Protection	YES
AC Output Overcurrent Protection	YES
AC Output Overvoltage Protection	YES
AC Output Short Circuit Protection	YES
Thermal Protection	YES
Insulation Impedance Detection	YES
Anti-islanding Protection	YES
Surge Protection Level	TYPE II(AC)
Interface
Communication Interface	WiFi
General Data
Operating Temperature Range(°C)	-40 to +65°C, >45°C Derating
Permissible Ambient Humidity	0~100%
Permissible Altitude (m)	2000m
Noise (dB)	≤ 25
Ingress Protection(IP) Rating	IP 67
Inverter Topology	Isolated
Over Voltage Category	OVC II(DC),OVC III(AC)
Cabinet Size（WHD mm）	200.5×177.8×35.5 (Excluding Connectors and Brackets)
Weight（kg）	2.4
Warranty	10 Years
Type Of Cooling	Natural Cooling
Grid Regulation	IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, VDE-AR-N 4105
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
