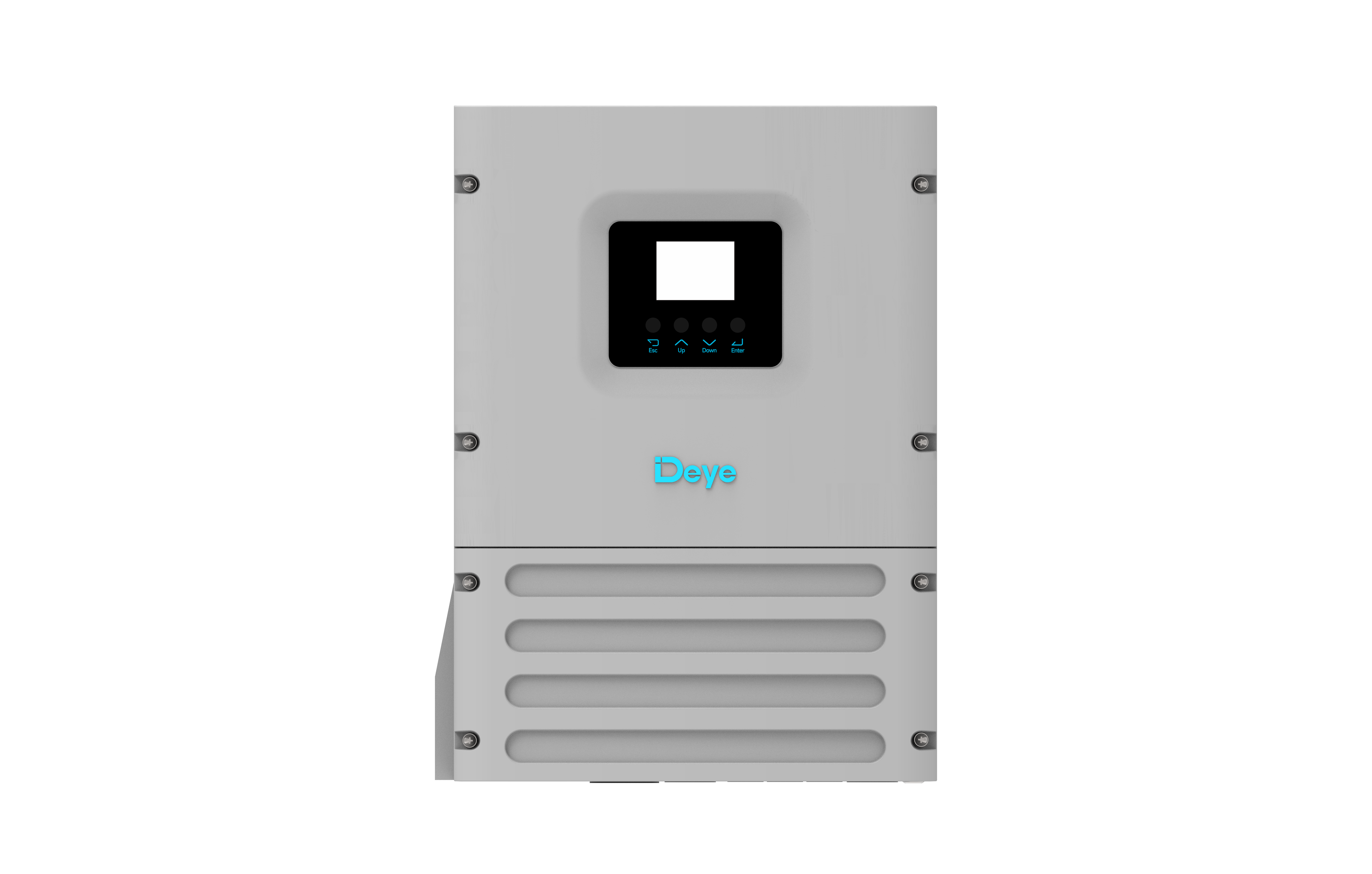

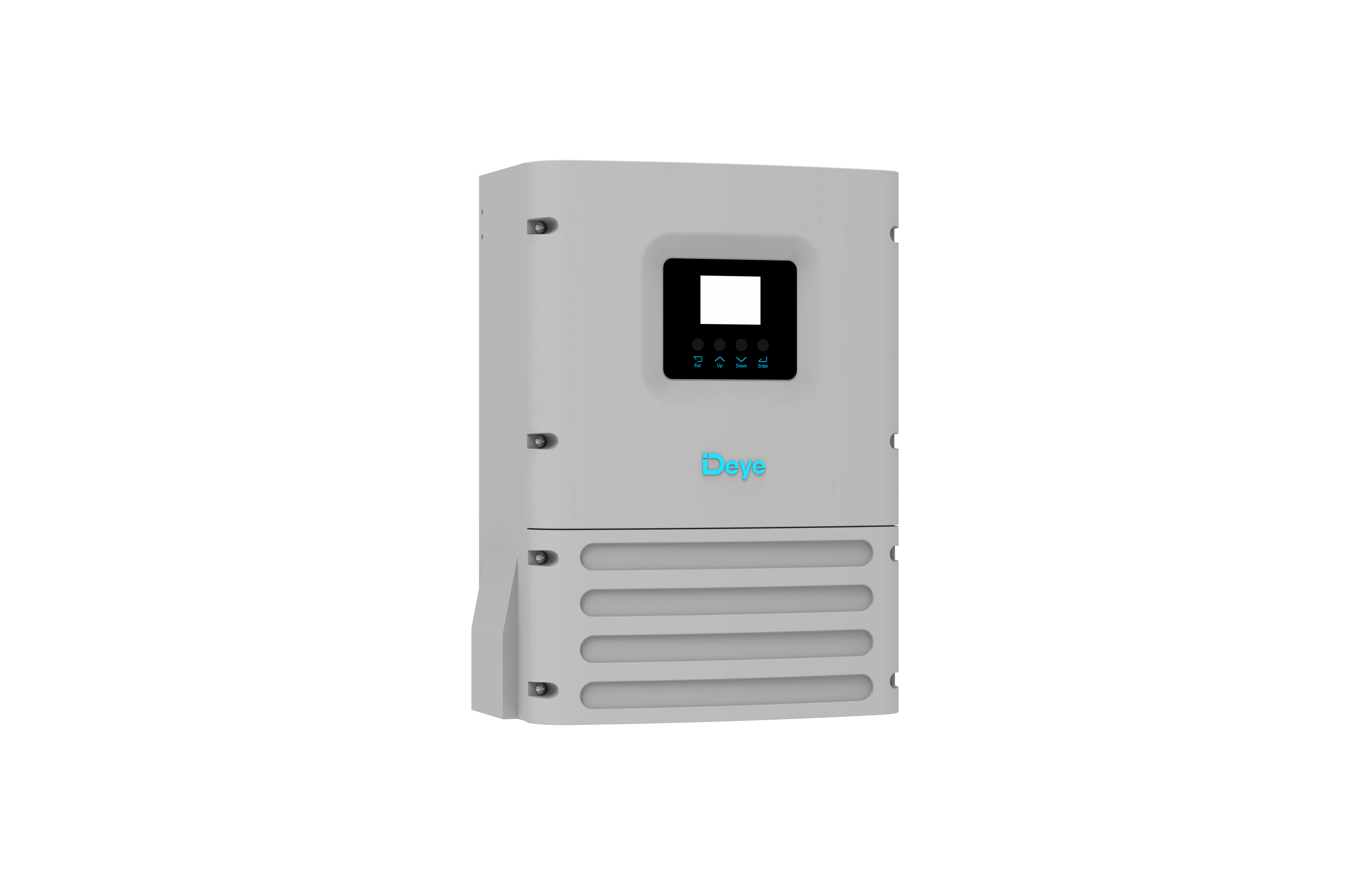

SUN-3/3.6/5/6K-OG02LP1-EU-AM1 Inverter Company, Supplier

Model	SUN-3K-OG02LP1 -24-EU-AM1	SUN-3K-OG02LP1 -EU-AM1	SUN-3.6K-OG02LP1-EU-AM1	SUN-5K-OG02LP1-EU-AM1	SUN-6K-OG02LP1-EU-AM1
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	20-30	40-60
Max. Charging Current (A）	130	70	90	120	135
Max. Discharging Current (A)	130	70	90	120	135
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of Battery Input	1
PV String Input Data
Max. PV Access Power (W)	6000		7200	10000	12000
Max. PV Input Power (W)	4800		5760	8000	9600
Max. PV Input Voltage (V）	450
Start-up Voltage (V)	125
MPPT Voltage Range(V）	150-425
Rated PV Input Voltage (V)	370
Max. Operating PV Input Current (A）	36
Max. Input Short-Circuit Current (A)	54
AC Output Data
Rated AC Output Power (VA/W)	3000		3600	5000	6000
Max. AC Output Power (VA/W)	3000		3600	5000	6000
Max. AC Output Current (A)	13.1		15.7	21.8	26.1
Peak Power (W）	2 times of rated power, 10s
Rated Output Voltage (V)	230
Output Type	L+N+PE
Rated Output Frequency	50Hz / 60Hz
Output Voltage Waveform	Pure Sine Wave
Total Current Harmonic Distortion THDi	＜3%
AC Input Date(Grid and Generator)
Max. Input Power to Battery (W)	3000		3600	5000	6000
Rated Input Voltage (V）	230
Rated Input Frequency	50Hz / 60Hz
Gird Input Current (A)	35
Generator Input Current (A)	35
Eﬃciency
Max. Eﬃciency	97.60%
Euro Eﬃciency	96.50%
MPPT Eﬃciency	>99%
Equipment Protection
Integrated	DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc fault circuit interrupter (AFCI) (Optional), Insulation Impedance Detection
Surge Protection Level	TYPE II(DC), TYPE II(AC)
Interface
LCD/LED Display	LCD
Communication Interface	WIFI/RS485/CAN
General Data
Operating Temperature Range (℃)	-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity	0-100%
Permissible Altitude	3000m
Noise (dB)	<46
Ingress Protection(IP) Rating	IP 65
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC), OVC III(AC)
Cabinet Size (WxHxD mm)	306×427.5×175.8 (Excluding Connectors and Brackets)
Weight (kg）	9.3
Type of Cooling	Intelligent Air Cooling
Warranty	Standard 5 years, extended warranty
Safety / EMC Standard	IEC62109-1/2, EN61000-6-6, EN61000-6-3, EN61000-6-4

Model		SE-F5	SE-F5 Plus	SE-F12	SE-F16
Main Parameters
Battery Chemistry		LiFePO4
Capacity		100Ah		230 Ah	314 Ah
Scalability [1]		Max. 32 pcs in parallel
Nominal Voltage		51.2V
Operating Voltage		44.8V-57.6V
Nominal Energy		5.12 kWh		11.8 kWh	16 kWh
Charge Current [2]	Max. Continuous	100 A		230 A	160 A
	Peak	120 A ( 10 sec )		280 A ( 10 sec )
Discharge Current [2]	Max. Continuous	120 A		230 A
	Peak	150 A ( 10 sec )		280 A ( 10 sec )
Other Parameter
Recommend Depth of Discharge		80% DoD	90% DoD
Dimension ( W × H × D ) (Without hanging board)		370 × 548 × 140 mm		400 ×583 × 233 mm	400 × 708 × 233 mm
Weight Approximate		41 kg		84 kg	109 kg
LED Indicator		LED ( SOC, working, protecting ) & Buzzer
IP Rating of Enclosure		IP21
Operating Temperature		Charge: 0～55℃ / Discharge: -20℃～55℃	Charge: -10～55℃ / Discharge: -20℃～55℃	Charge: 0～55℃ / Discharge: -20℃～55℃
Storage Temperature		0～35℃
Relative Humidity		95% (non-condensing)
Altitude		≤3000m
Cycle Life		≥6000(25℃±2℃,70%EOL)
Installation		Wall-Mounted, Floor-Mounted, Stack-Mounted
Communication		CAN2.0, RS485, Bluetooth+APP
Warranty Period [3]		5 years	10years	5 years / 10 years (extended warranty)
Energy Throughput [3]		8 MWh	16 MWh	18 MWh	25 MWh
Certiﬁcation		UN38.3, MSDS, CE, CB
