Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

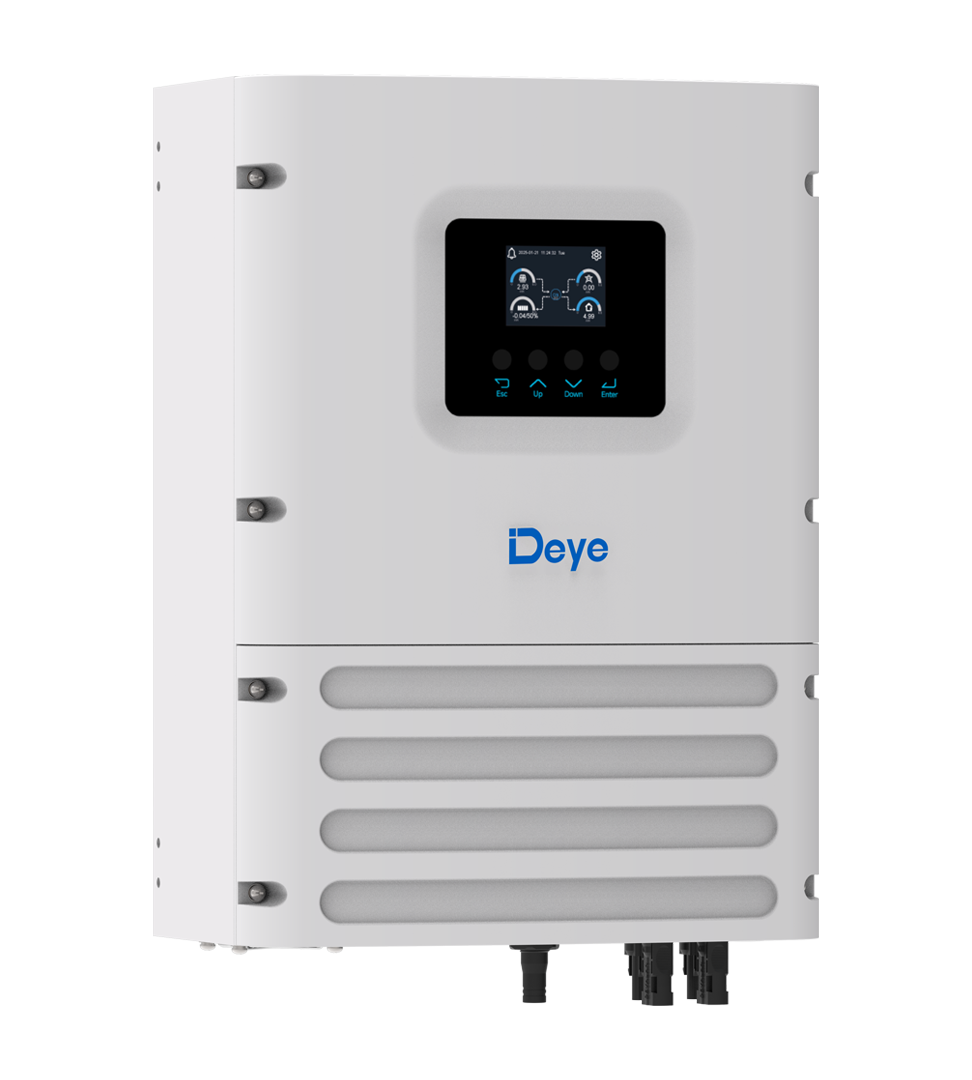

SUN-3/3.6/5/6K-OG01LP1-24-EU-AM2
SE-F5 & SE-F5 Plus & SE-F12 & SE-F16
Model | SUN-3K-OG01LP1 -24-EU-AM2 |
SUN-3.6K-OG01LPA-EU-AM2 | SUN-5K-OG01LP1-EU-AM2 | SUN-6K-OG01LP1-EU-AM2 |
Battery Input Data | ||||
Battery Type | Lead-acid or Lithium-ion | |||
Battery Voltage Range (V) | 20-30 | 40-60 | ||
Max. Charging Current (A) | 130 | 90 | 120 | 135 |
Max. Discharging Current (A) | 130 | 90 | 120 | 135 |
Charging Strategy for Li-ion Battery | Self-adaption to BMS | |||
Number of Battery Input | 1 | |||
PV String Input Data |
||||
Max. PV Access Power (W) | 6000 | 7200 | 10000 | 12000 |
Max. PV Input Power (W) | 4800 | 5760 | 8000 | 9600 |
Max. PV Input Voltage (V) | 500 | |||
Start-up Voltage (V) | 125 | |||
PV Input Voltage(V) | 125-500 | |||
MPPT Voltage Range(V) | 150-425 | |||
Full Load MPPT Voltage Range(V) | 300-425 | |||
Rated PV Input Voltage (V) | 370 | |||
Max. Operating PV Input Current (A) | 18 | 18+18 | ||
Max. Input Short-Circuit Current (A) | 27 | 27+27 | ||
No. of MPP Trackers/No. of Strings MPP Tracker | 1/1 | 2/1+1 | ||
Max. Inverter Backfeed Current to The Array(A) | 0 | |||
AC Output Data | ||||
Rated AC Output Power (VA/W) | 3000 | 3600 | 5000 | 6000 |
Max. AC Output Power (VA/W) | 3000 | 3600 | 5000 | 6000 |
Max. AC Output Current (A) | 13.1 | 15.7 | 21.8 | 26.1 |
Peak Power (W) | 2 times of rated power, 10s | |||
Rated Output Voltage (V) | 230 | |||
Output Type | L+N+PE | |||
Rated Output Frequency | 50Hz / 60Hz | |||
Output Voltage Waveform | Pure Sine Wave | |||
Total Current Harmonic Distortion THDi | <3% | |||
AC Input Date(Grid and Generator) | ||||
Max. Input Power to Battery (W) | 3000 | 3600 | 5000 | 6000 |
Rated Input Voltage (V) | 230 | |||
Rated Input Frequency | 50Hz / 60Hz | |||
Gird Input Current (A) | 35 | |||
Generator Input Current (A) | 35 | |||
Efficiency | ||||
Max. Efficiency | 97.60% | |||
Euro Efficiency | 96.50% | |||
MPPT Efficiency | >99% | |||
Equipment Protection | ||||
Integrated |
AC Output Overvoltage Protection, AC Output Short Circuit Prote DC Reverse Polarity Protection, AC Output Overcurrent Protectio ction, DC Component Monitoring, n, Thermal Protection,
Arc Fault Circuit Interrupter (optional), Insulation Impedance Detection, DC Switch
|
|||
Surge Protection Level | TYPE II(DC), TYPE II(AC) | |||
Interface | ||||
LCD/LED Display | LCD | |||
Communication Interface | WIFI/RS485/CAN/Bluetooth | |||
General Data | ||||
Max. Operating Frequency(Hz) | 200M | |||
Operating Temperature Range (℃) | -40 to +60℃, >45℃ Derating | |||
Permissible Ambient Humidity | 0-100% | |||
Permissible Altitude | 3000m | |||
Noise (dB) | <55 | |||
Ingress Protection(IP) Rating | IP 65 | |||
Inverter Topology | Non-Isolated | |||
Over Voltage Category | OVC II(DC), OVC III(AC) | |||
Cabinet Size (WxHxD mm) | 306×427.5×175.77 (Excluding Connectors and Brackets) | |||
Weight (kg) | 12.65 | |||
Type of Cooling | Intelligent Air Cooling | |||
Warranty | Standard 5 years, extended warranty | |||
Safety / EMC Standard | IEC62109-1/2, EN61000-6-6, EN61000-6-3, EN61000-6-4 |
Model | SE-F5 | SE-F5 Plus | SE-F12 | SE-F16 | |
Main Parameters | |||||
Battery Chemistry | LiFePO | ||||
Capacity | 100Ah | 230 Ah | 314 Ah | ||
Scalability [1] | Max. 32 pcs in parallel | ||||
Nominal Voltage | 51.2V | ||||
Operating Voltage | 44.8V-57.6V | ||||
Nominal Energy | 5.12 kWh | 11.8 kWh | 16 kWh | ||
Charge Current [2] | Max. Continuous | 100 A | 230 A | 160 A | |
Peak | 120 A ( 10 sec ) | 280 A ( 10 sec ) | |||
Discharge Current [2] | Max. Continuous | 120 A | 230 A | ||
Peak | 150 A ( 10 sec ) | 280 A ( 10 sec ) | |||
Other Parameter | |||||
Recommend Depth of Discharge | 80% DoD | 90% DoD | |||
Dimension ( W × H × D ) (Without hanging board) | 370 × 548 × 140 mm | 400 ×583 × 233 mm | 400 × 708 × 233 mm | ||
Weight Approximate | 41 kg | 82 kg | 107 kg | ||
LED Indicator | LED ( SOC, working, protecting ) & Buzzer | ||||
IP Rating of Enclosure | IP21 | ||||
Operating Temperature | Charge: 0~55℃ / Discharge: -20℃~55℃ | ||||
Storage Temperature | 0~35℃ | ||||
Relative Humidity | 95% (non-condensing) | ||||
Altitude | ≤3000m | ||||
Cycle Life | ≥6000(25℃±2℃,70%EOL) | ||||
Installation | Wall-Mounted, Floor-Mounted, Stack-Mounted | ||||
Communication | CAN2.0, RS485, Bluetooth+APP | ||||
Warranty Period [3] | 5 years | 10years | 5 years / 10 years (extended warranty) | ||
Energy Throughput [3] | 8 MWh | 16 MWh | 18 MWh | 25 MWh | |
Certification | UN38.3, MSDS |
