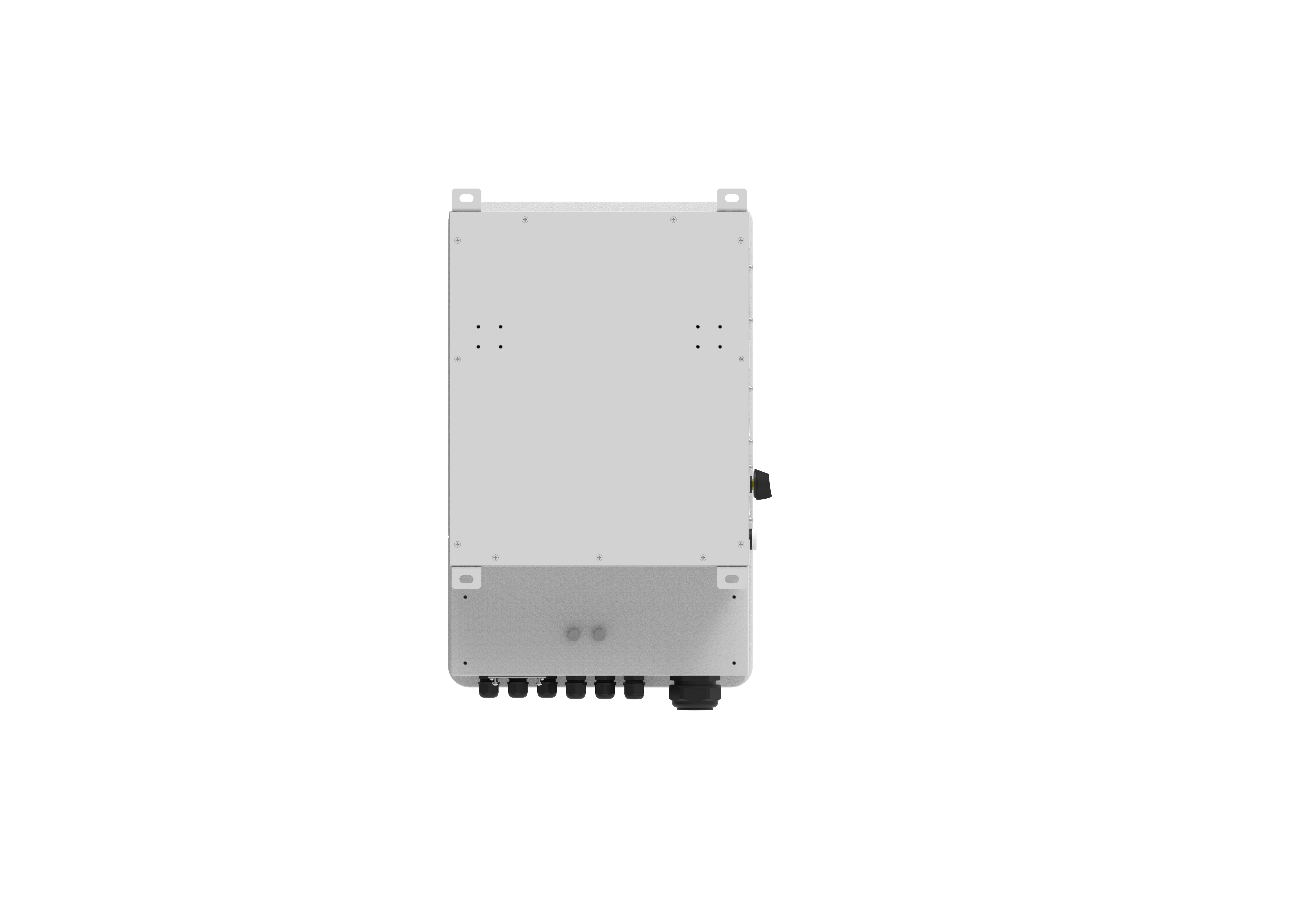

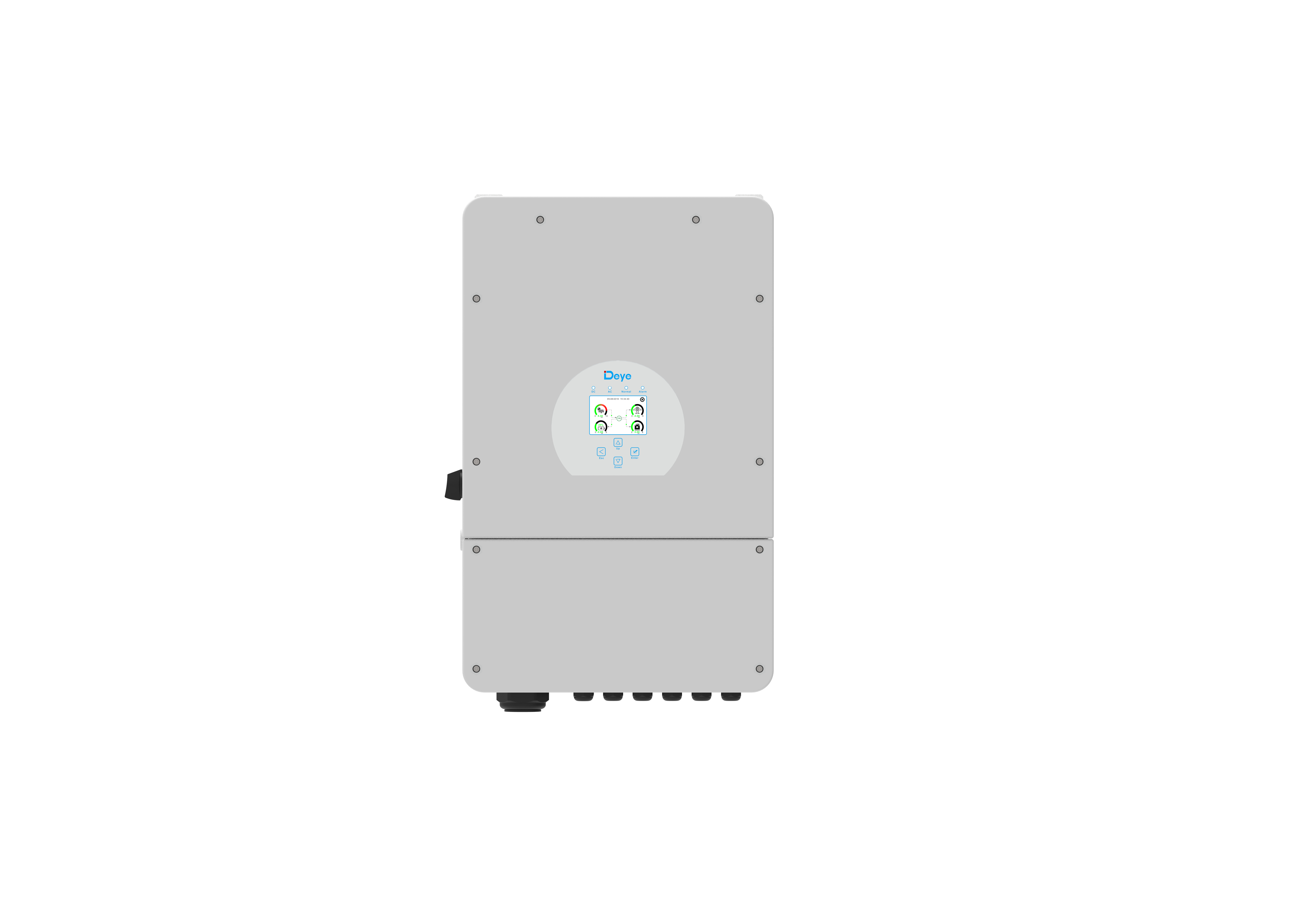

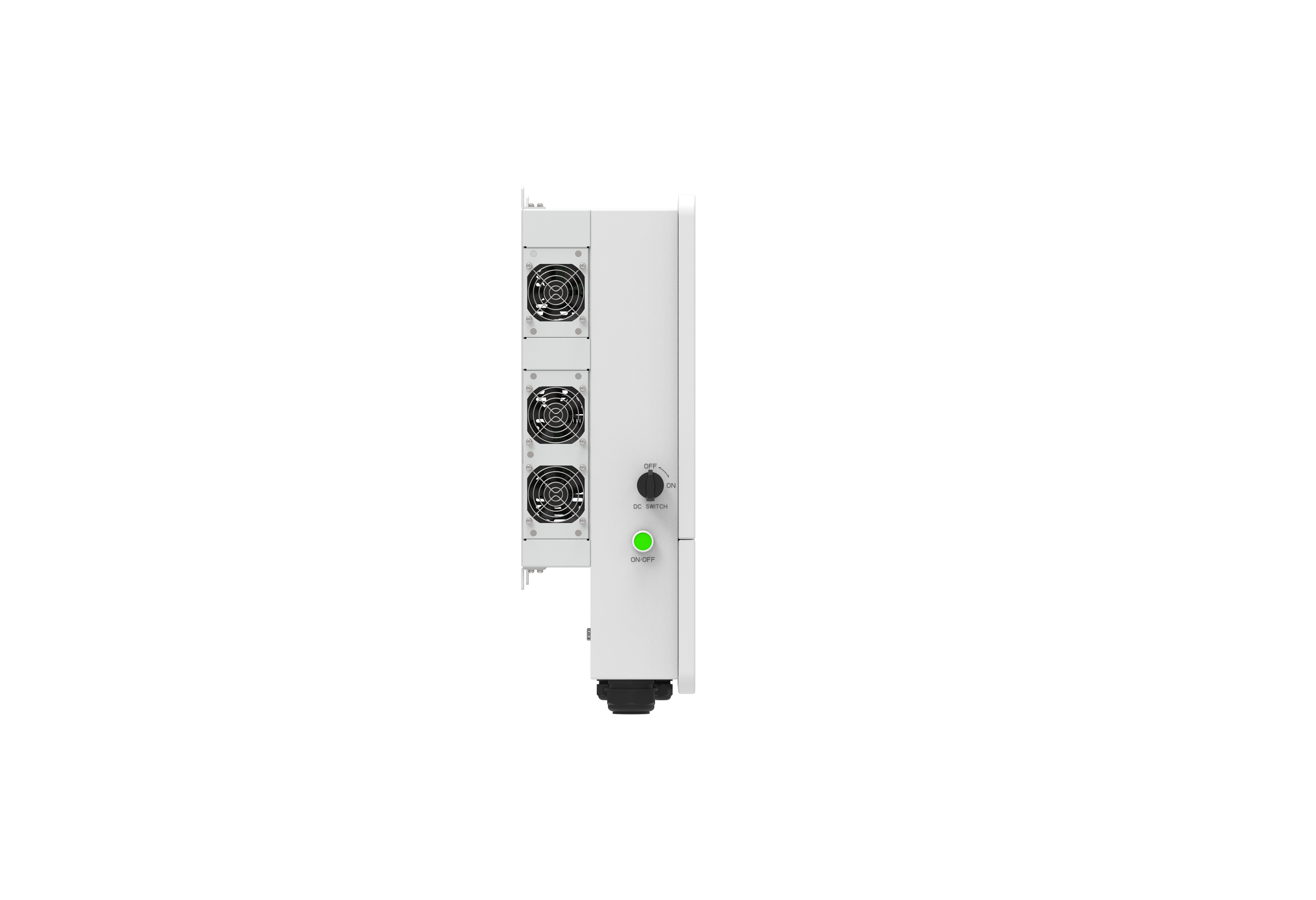

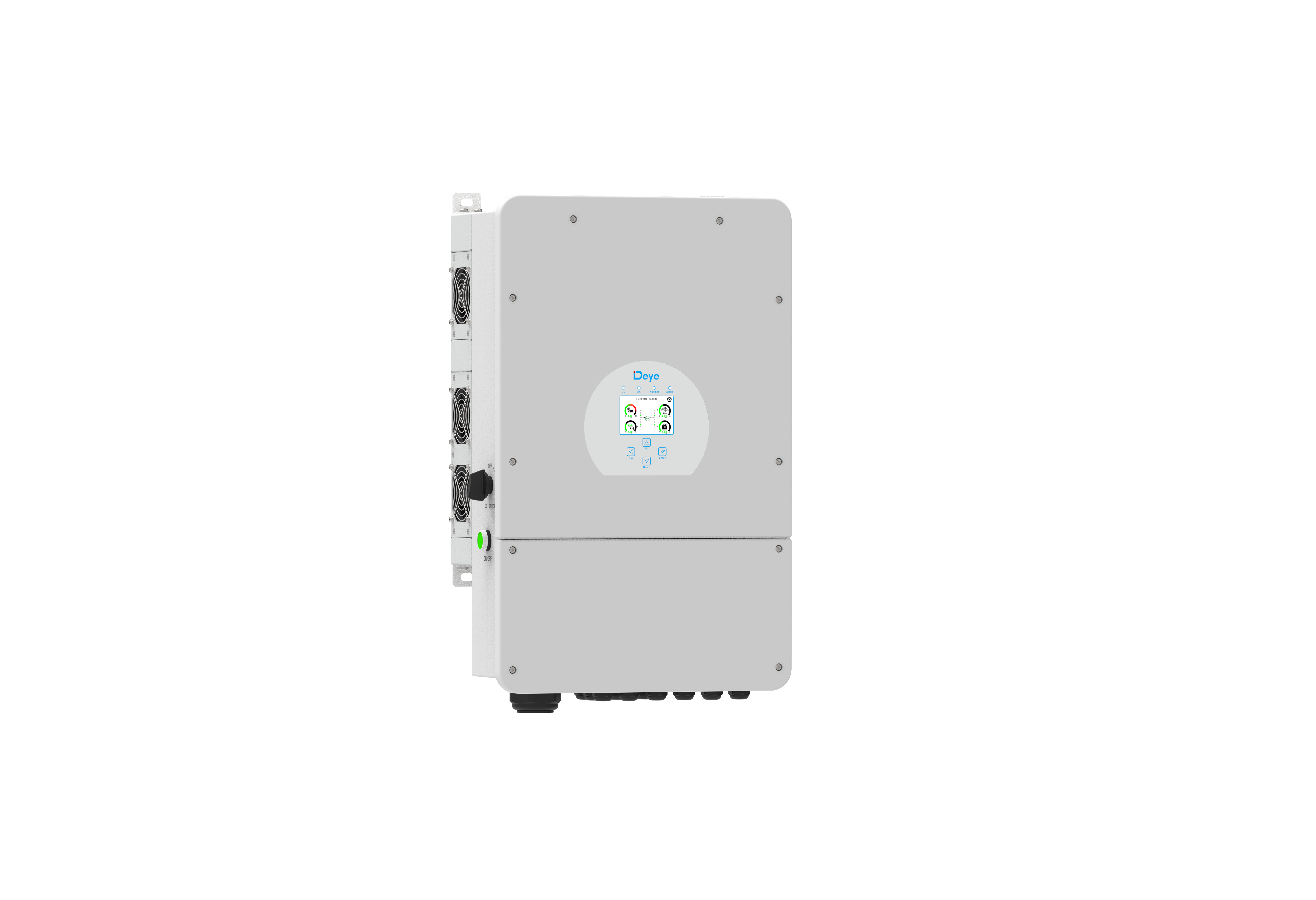

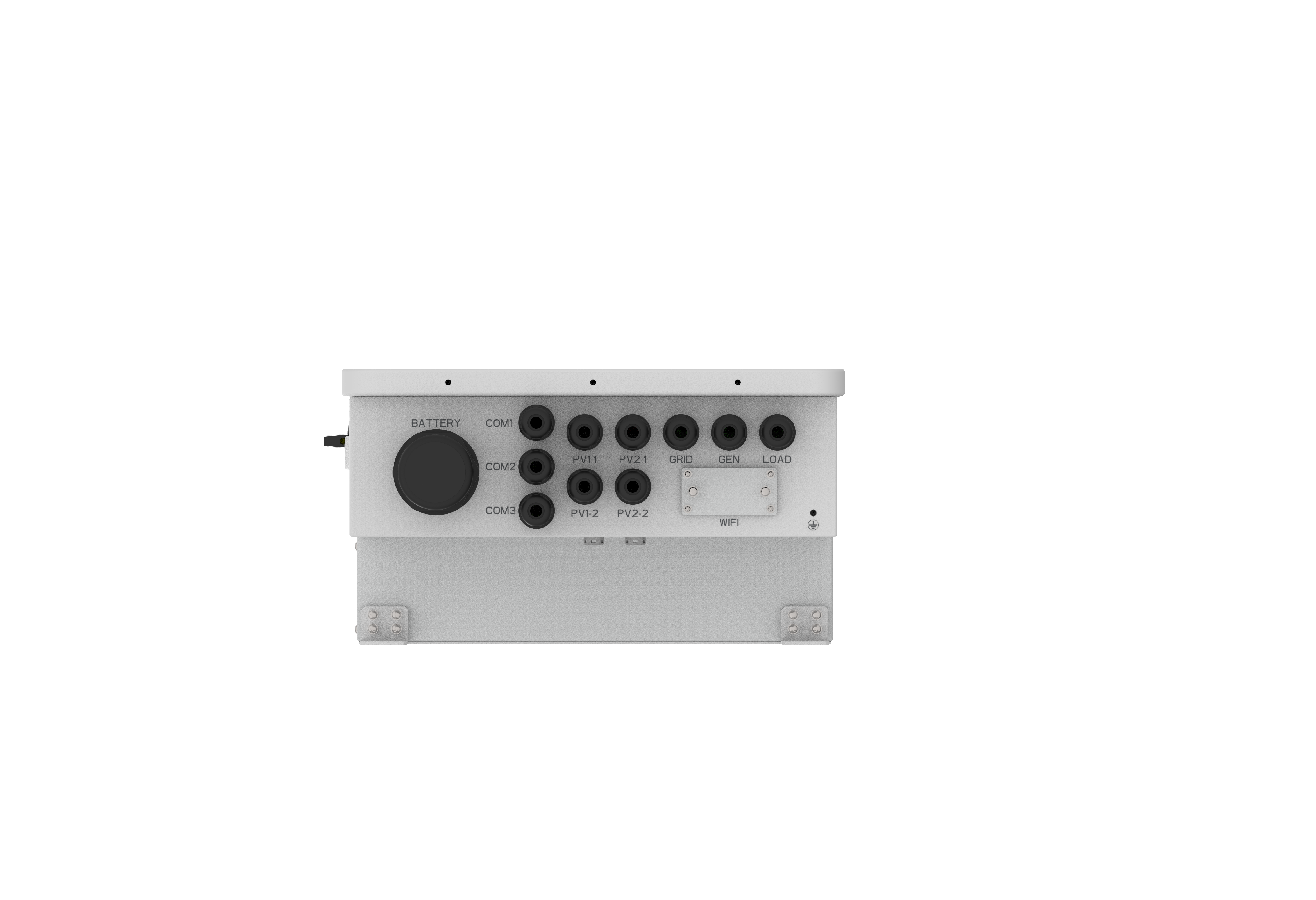

SUN-5/6/7.6/8K-SG01LP1-US

Single Phase Hybrid Inverter | 5-8kW | 2 MPPT | LV Battery Supported

Ningbo Deye Inverter Technology Co.，Ltd.

Remotely shutdown function

Smart Monitoring Platform

Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

Colorful touch LCD, IP65 protection degree
6 time periods for battery charging/discharging
Max. charging/discharging current of 190A
AC couple to retrofit existing solar system
Support storing energy from diesel generator
Max. 16 pcs parallel for on-grid and off-grid

operation; Support multiple batteries parallel

DOWNLOAD AREA

>> Download Datasheet << >> Download Manual <<

Technical Specifications

SUN-5K-SG01LP1-US
SUN-6K-SG01LP1-US
SUN-7.6K-SG01LP1-US
SUN-8K-SG01LP1-US
Feedback

Model	SUN-5K-SG01LP1-US	SUN-6K-SG01LP1-US	SUN-7.6K-SG01LP1-US	SUN-8K-SG01LP1-US
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range(V)	40-60
Max.Charging Current(A)	120	135	190	190
Max.Discharging Current(A)	120	135	190	190
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of battery input	1
PV String Input Data
Max PV Input Power（W）	6500	7800	9880	10400
Max PV Input Voltage（V）	500
Start-up Voltage（V）	125
MPPT Voltage Range（V）	150-425
Rated PV Input Voltage(V)	370
Max Input Short-Circuit Current（A）	22+22	44+22	44+44
Max Operating PV Input Current（A）	13+13	26+13	26+26
No.of MPP Trackers/No.of String Per MPP Tracker	2/1+1	2/2+1	2/2+2
AC Input/Output Data
Rated AC Input/Output Active Power（W）	5000	6000	7600	8000
Max AC Input/Output Apparent Power （VA）	5500	6600	8360	8800
Peak Power (off-grid)（W）	2 times of rated power,10s
Rated AC Input/Output Current（A）	20.8	25	31.7	33.3
Max AC Input/Output Current（A）	22.9	27.5	34.8	36.7
Max Continuous AC Passthrough (grid to load)（A）	40		50
Rated Input/Output Voltage/Range(V)	120/240;208 0.88Un＜U＜1.1Un
Grid Connection Form	2L+N+PE
Rated Input/Output Grid Frequency/Range	60Hz/55Hz-65Hz
Power Factor Adjustment Range	0.8 leading to 0.8lagging
Total Current Harmonic Distortion THDi	<3% (of nominal power)
DC Injection Current	<0.5%ln
Efficiency
Max Efficiency	97.6%
Euro Efficiency	96.5%
MPPT Efficiency	＞99%
Equipment Protection
Integrated	DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
Surge Protection Level	TYPE II(DC),TYPE II(AC)
Interface
Communication Interface	RS485/RS232/CAN
Monitor Mode	GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range	-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity	0~100%
Permissible Altitude	2000m
Noise	＜30 dB(A)
Ingress Protection(IP) Rating	TYPE3R
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC),OVC IV(AC)
Cabinet size（WHD）[mm]	420×670×233（Excluding connectors and brackets）
Weight[kg]	30
Warranty	5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Type Of Cooling	Intelligent air cooling
Grid Regulation	EN 50549,UNE 217002,NRS 097,IEEE 1547.1,SRD V2.0
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2,FCC,UL 1741
