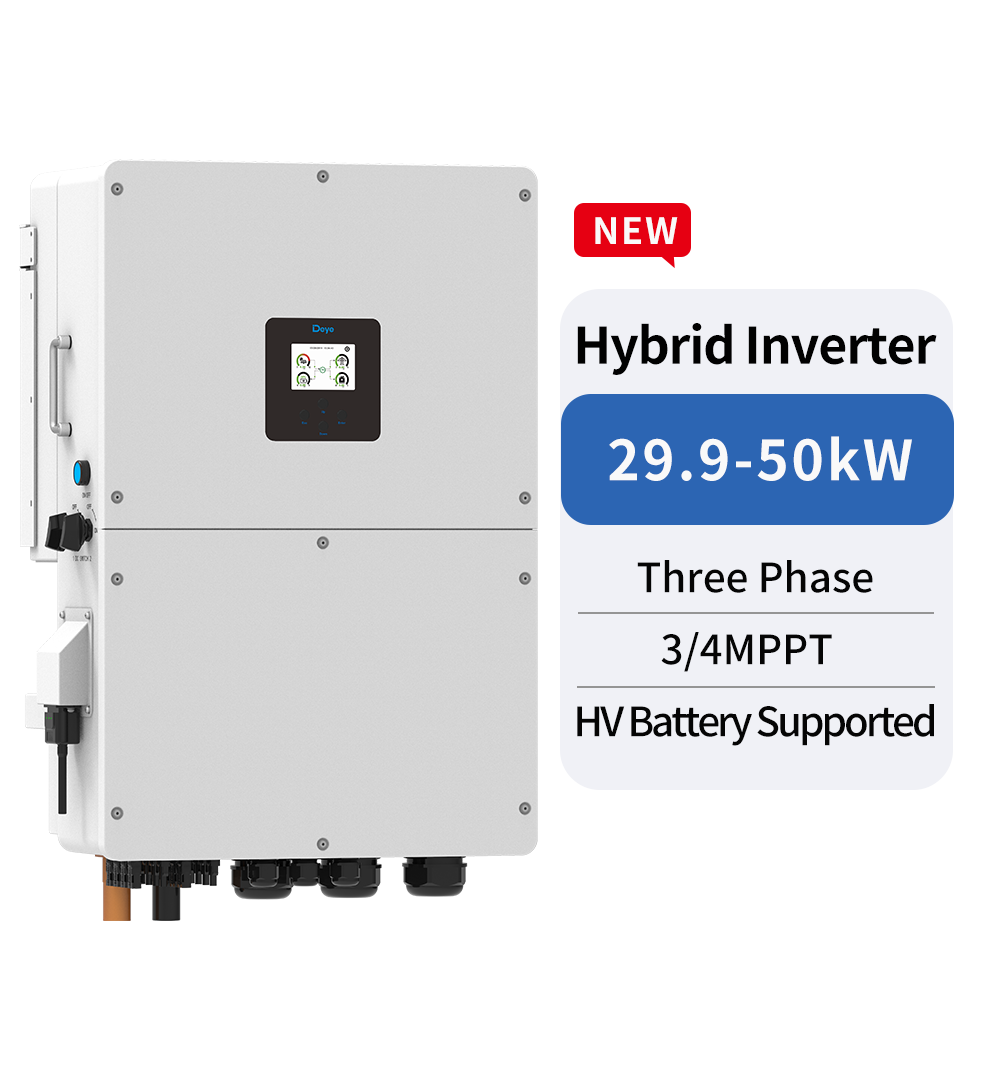

| Model |
SUN-29.9K-SG02HP3-EU-BM3 |
SUN-30K-SG02HP3
-EU-BM3 |
SUN-35K-SG02HP3
-EU-BM3 |
SUN-40K-SG02HP3
-EU-BM4 |
SUN-50K-SG02HP3
-EU-BM4 |
| Battery Input Data |
|
| Battery Type |
Lithium-ion |
| Battery Voltage Range(V) |
160-800 |
| Max. Charging/Discharging Current (A) |
100 |
| Charging Strategy for Li-ion Battery |
Self-adaption to BMS |
| Number of battery input |
1 |
| PV String Input Data |
|
|
Max. PV Access Power (W)
|
59800 |
60000 |
70000 |
80000 |
100000 |
| Max DC Input Power（W） |
47840 |
48000 |
56000 |
64000 |
80000 |
| Max DC Input Voltage（V） |
1000 |
| Start-up Voltage（V） |
180 |
| MPPT Voltage Range（V） |
150-850 |
| Rated DC Input Voltage(V) |
600 |
| Max Input Short-Circuit Current（A） |
55+55+55 |
55+55+55+55 |
| Max Operating PV Input Current（A） |
36+36+36 |
36+36+36+36 |
| No.of MPP Trackers/No.of String Per MPP Tracker |
3/2+2+2 |
4/2+2+2+2 |
| AC Input/Output Data |
|
| Rated AC Input/Output Active Power（W） |
29900 |
30000 |
35000 |
40000 |
50000 |
| Max AC Input/Output Apparent Power （VA） |
29900 |
33000 |
38500 |
44000 |
55000 |
| Peak Power (off-grid)（W） |
1.5 times of rated power,10s |
| Rated AC Input/Output Current（A） |
45.4/43.4 |
45.5/43.5 |
53.1/50.8 |
60.7/58.0 |
75.8/72.5 |
| Max AC Input/Output Current（A） |
45.4/43.4 |
50/47.9 |
58.4/55.8 |
66.7/63.8 |
83.4/79.8 |
| Max Continuous AC Passthrough (grid to load)（A） |
200 |
| Rated Input/Output Voltage/Range(V) |
220/380V,230/400V 0.85Un-1.1Un 3L+N+PE |
| Rated Input/Output Grid Frequency/Range |
50/45-55, 60/55-65 |
| Power Factor Adjustment Range |
0.8 leading-0.8 lagging |
| Total Current Harmonic Distortion THDi |
<3% (of nominal power) |
| DC Injection Current |
<0.5%ln |
| Efficiency |
|
| Max Efficiency |
97.60% |
| Euro Efficiency |
97.0% |
| MPPT Efficiency |
＞99% |
| Equipment Protection |
|
|
Integrated
|
DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage
Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit
Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection,
Residual Current Detection
|
| Surge Protection Level |
TYPE II(DC), TYPE II(AC) |
| Interface |
|
| LCD/LED Display |
LCD |
|
|
|
|
Monitor Mode
|
|
| General Data |
|
| Operating Temperature Range |
-40℃+60℃,＞45℃ Derating |
| Permissible Ambient Humidity |
0-100% |
| Permissible Altitude |
3000m |
| Noise |
≤ 65 dB(A) |
| Ingress Protection(IP) Rating |
IP 65 |
| Inverter Topology |
Non-Isolated |
| Over Voltage Category |
OVC II(DC),OVC III(AC) |
| Cabinet size（W*H*D）[mm] |
528*793*278（Excluding connectors and brackets） |
| Weight[kg] |
65 |
| Warranty |
5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy |
| Type Of Cooling |
Intelligent air cooling |
| Grid Regulation |
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G99, VDE-AR-N 4105 |
| Safety EMC/Standard |
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
