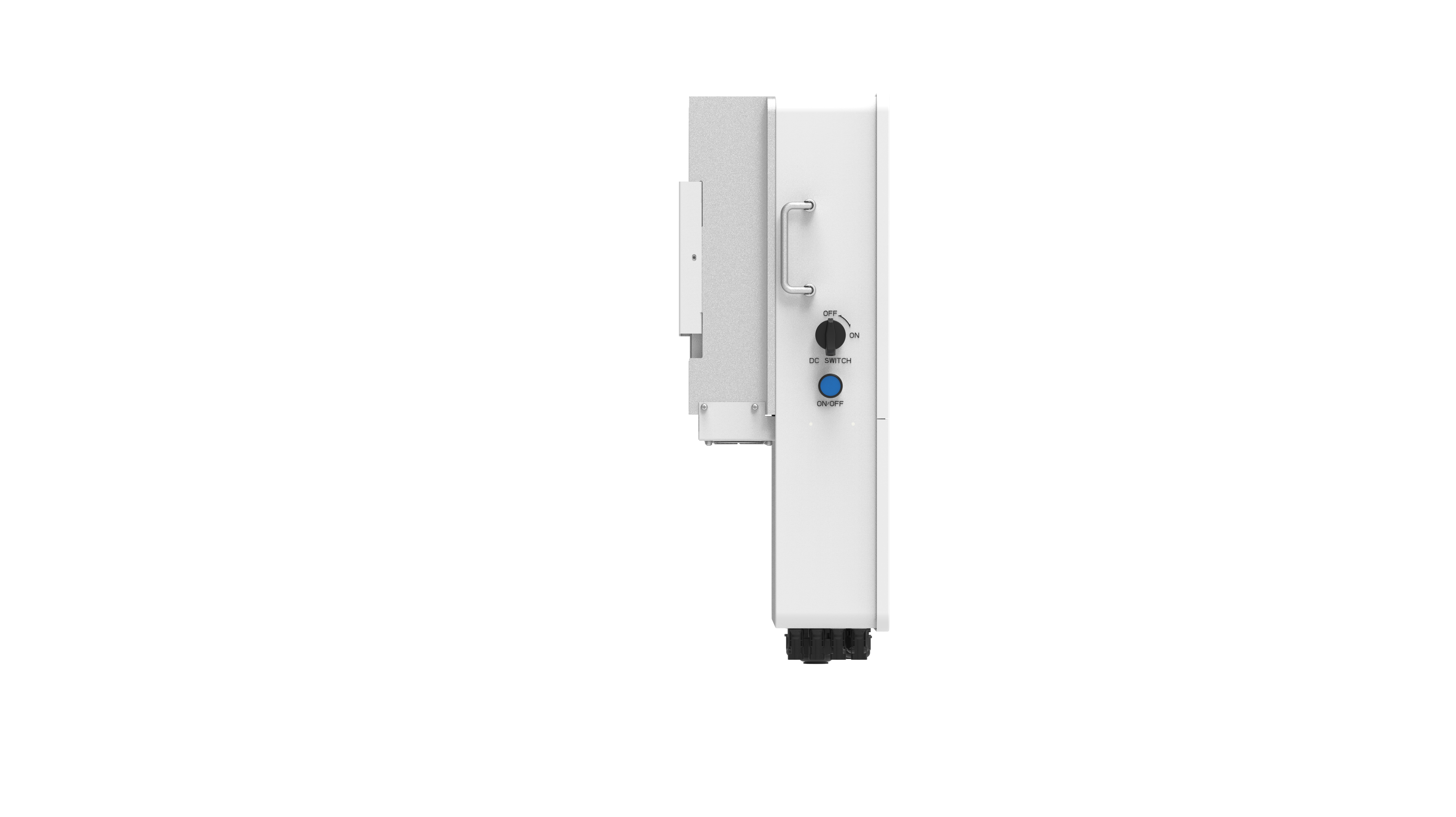

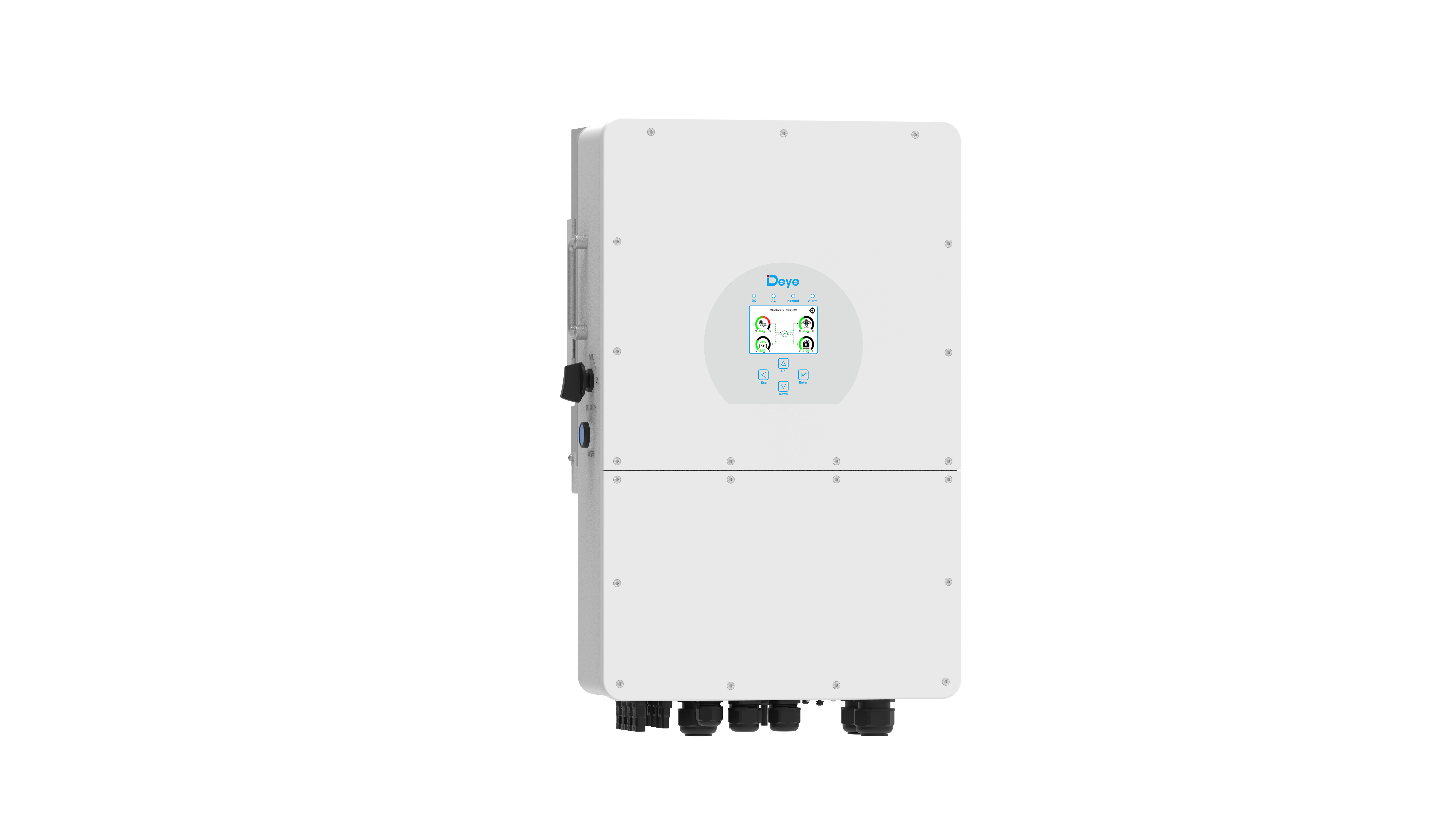

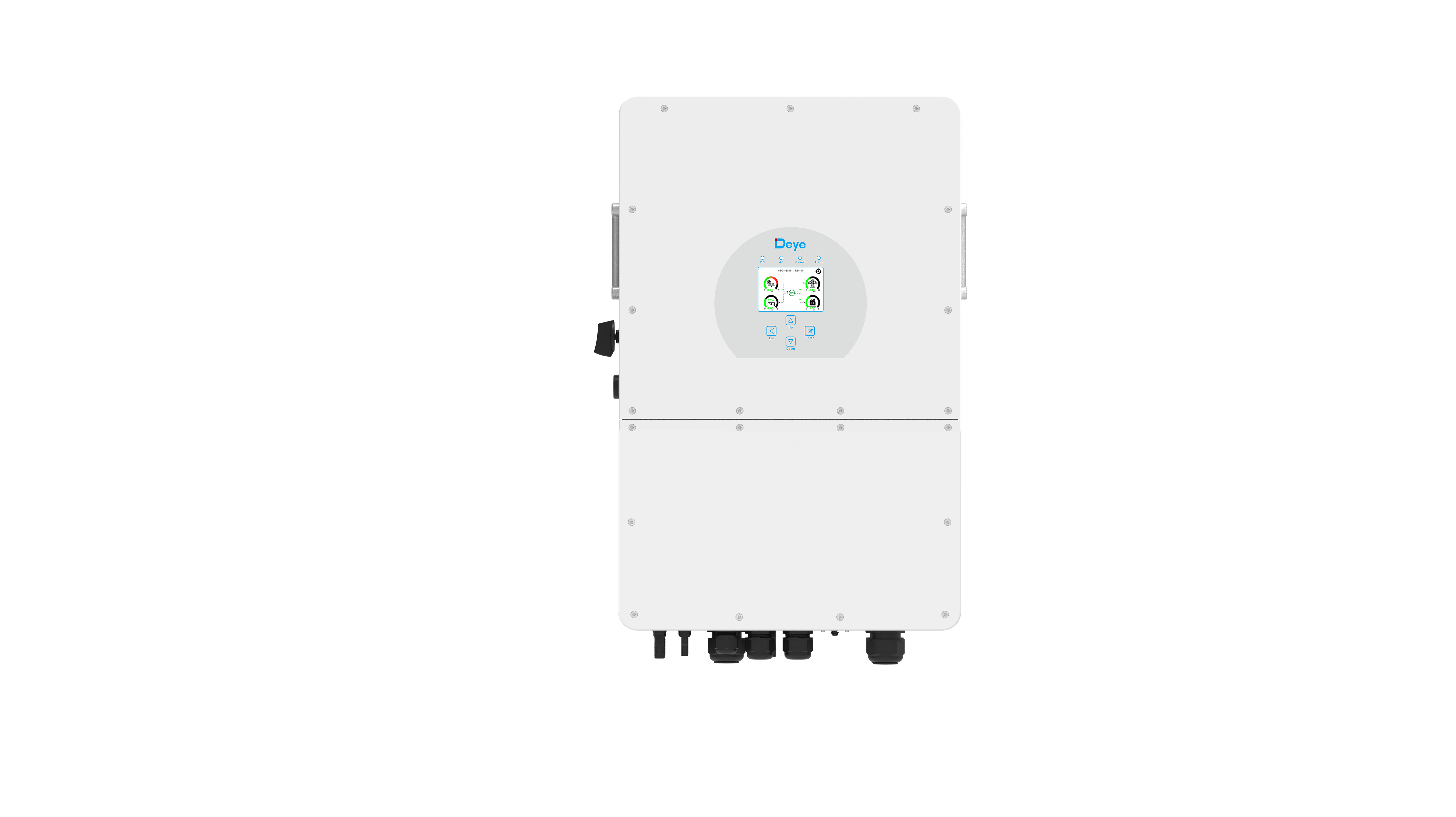

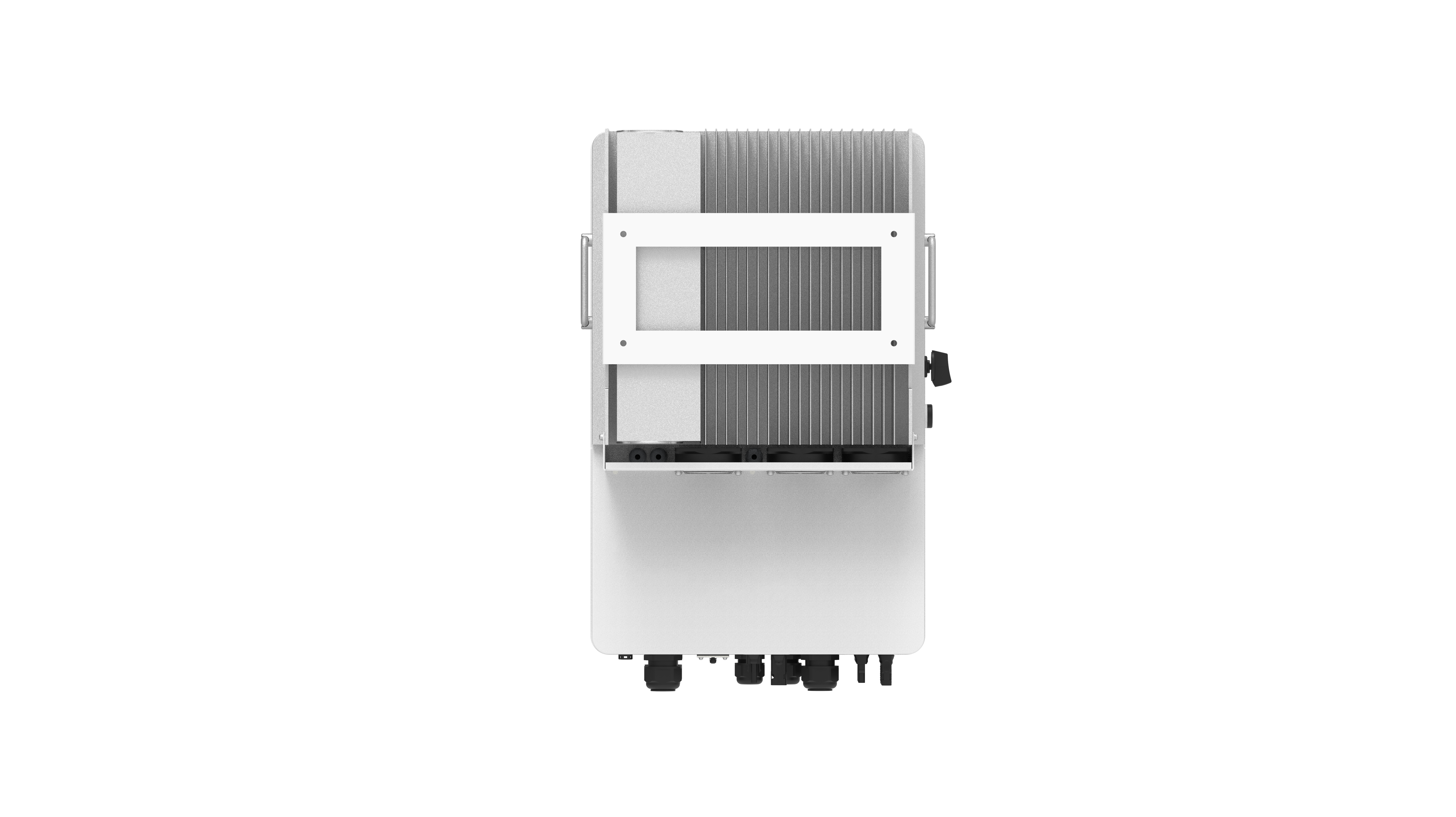

SUN-5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2

Three Phase Hybrid Inverter | 5-25kW | 2 MPPT | HV Battery Supported

Ningbo Deye Inverter Technology Co.，Ltd.

Remotely shutdown function

Smart Monitoring Platform

Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

100% unbalanced output
AC couple to retrofifit existing solar system
*Max. 10 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 50A
High voltage battery, higher effificiency
6 time periods for battery charging/discharging
Support storing energy from diesel generator

Technical Specifications

SUN-6K-SG01HP3-EU-AM2
SUN-8K-SG01HP3-EU-AM2
SUN-10K-SG01HP3-EU-AM2
SUN-12K-SG01HP3-EU-AM2
SUN-15K-SG01HP3-EU-AM2
SUN-20K-SG01HP3-EU-AM2
SUN-25K-SG01HP3-EU-AM2
Feedback

Model	SUN-5K -SG01HP3-EU-AM2	SUN-6K -SG01HP3-EU-AM2	SUN-8K -SG01HP3-EU-AM2	SUN-10K -SG01HP3-EU-AM2	SUN-12K -SG01HP3-EU-AM2	SUN-15K -SG01HP3-EU-AM2	SUN-20K -SG01HP3-EU-AM2	SUN-25K -SG01HP3-EU-AM2
Battery Input Data
Battery Type	Lithium-ion
Battery Voltage Range(V)	160-700
Max.Charging Current(A)	30	30	37					50
Max.Discharging Current(A)	30	30	37					50
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of battery input	1
PV String Input Data
Max. PV Access Power (W)	10000	12000	16000	20000	24000	30000	40000	50000
Max. PV Input Power (W)	8000	9600	12800	16000	19200	24000	32000	40000
Max. PV Input Voltage (V)	1000
Start-up Voltage（V）	180
MPPT Voltage Range（V）	150-850
Rated DC Input Voltage(V)	600							700
Max Input Short-Circuit Current（A）	30+30				39+30		39+39
Max Operating PV Input Current（A）	20+20				26+20		26+26
No.of MPP Trackers/No.of String Per MPP Tracker	2/1+1				2/2+1		2/2+2
AC Input/Output Data
Rated AC Input/Output Active Power（W）	5000	6000	8000	10000	12000	15000	20000	25000
Max AC Input/Output Apparent Power （VA）	5500	6600	8800	11000	13200	16500	22000	27500
Peak Power (off-grid)（W）	1.5 times of rated power,10s
Rated AC Input/Output Current（A）	7.6/7.3	9.1/8.7	12.2/11.6	15.2/14.5	18.2/17.4	22.8/21.8	30.4/29	37.9/36.3
Max AC Input/Output Current（A）	8.4/8	10/9.6	13.4/12.8	16.7/16	20/19.2	25/24	33.4/31.9	41.7/39.9
Max Continuous AC Passthrough (grid to load)（A）	40				80
Rated Input/Output Voltage/Range(V)	220/380V，230/400V 0.85Un-1.1Un
Grid Connection Form	3L+N+PE
Rated Input/Output Grid Frequency/Range	50Hz/45Hz-55Hz 60Hz/55Hz-65Hz
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Total Current Harmonic Distortion THDi	<3% (of nominal power)
DC Injection Current	<0.5%ln
Efficiency
Max Efficiency	97.6%
Euro Efficiency	97.0%
MPPT Efficiency	＞99%
Equipment Protection
Integrated	DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
Surge Protection Level	TYPE II(DC),TYPE II(AC)
Interface

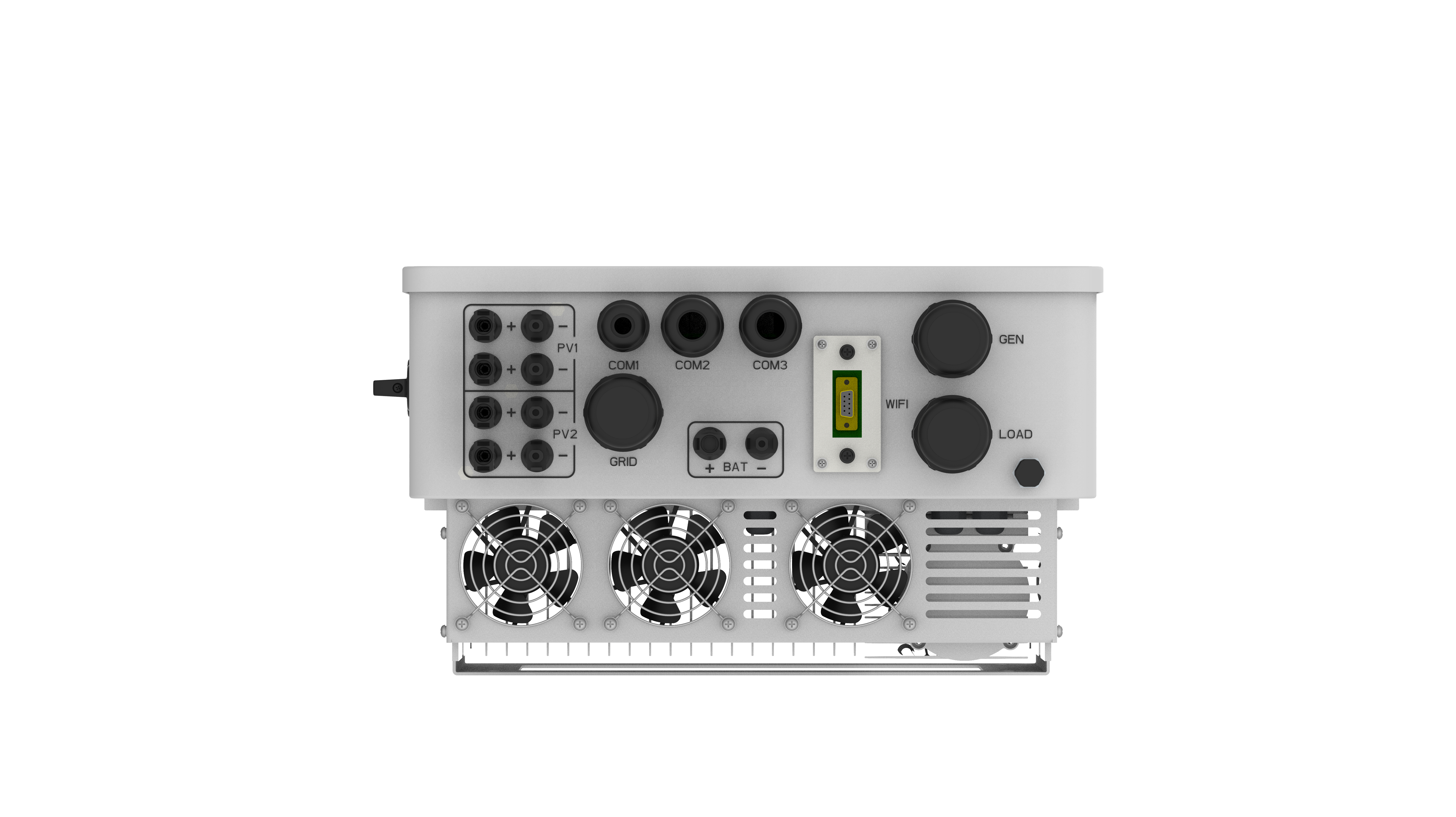

Communication Interface	RS485/RS232/CAN
Monitor Mode	GPRS/WIFI/Bluetooth/4G/LAN(optional)
LCD/LED Display	LCD
General Data
Operating Temperature Range	-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity	0-100%
Permissible Altitude	2000m
Noise	≤ 55 dB(A)
Ingress Protection(IP) Rating	IP 65
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC),OVC III(AC)
Cabinet size（WHD）[mm]	408638237（Excluding connectors and brackets）
Weight[kg]	30.5
Warranty	5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Type Of Cooling	natural cooling		Intelligent air cooling
Grid Regulation	IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,OVE-Richtlinie R25, G98, G99, VDE-AR-N 4105
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
