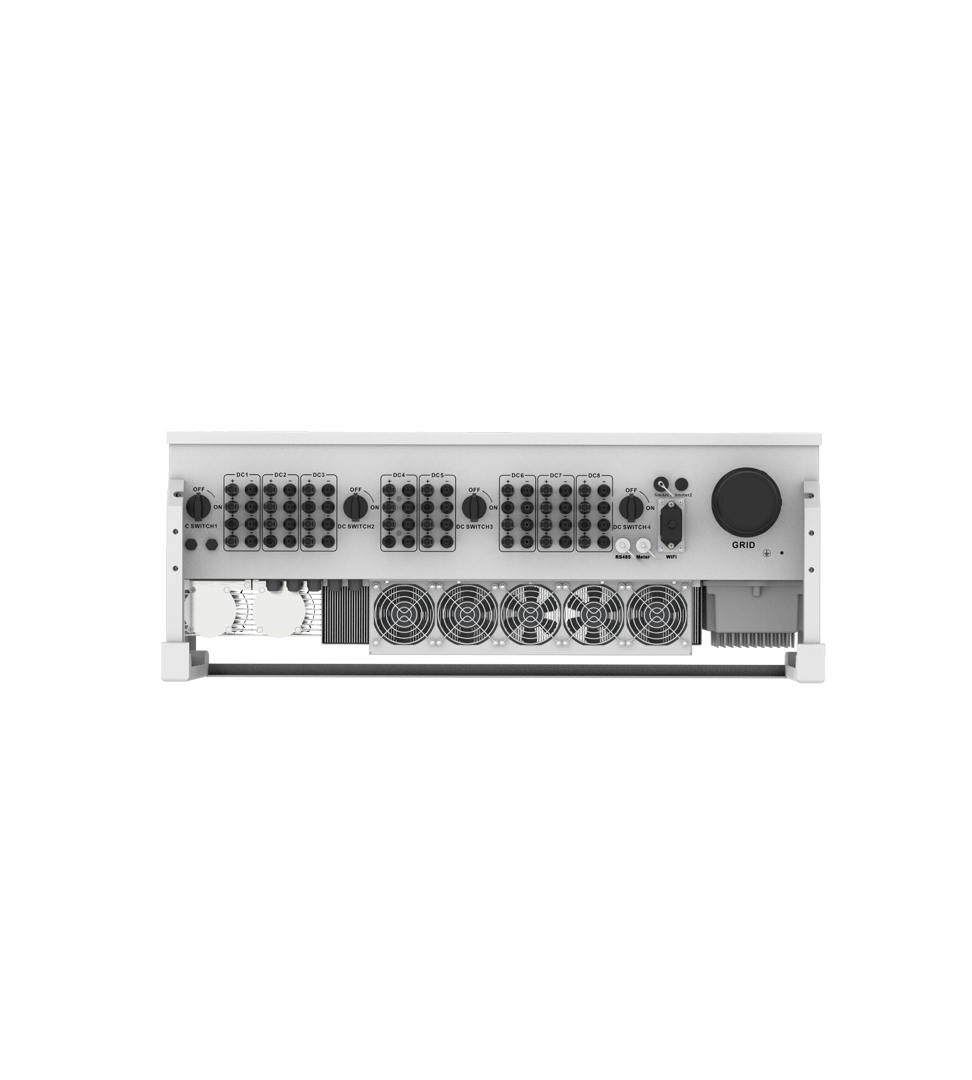

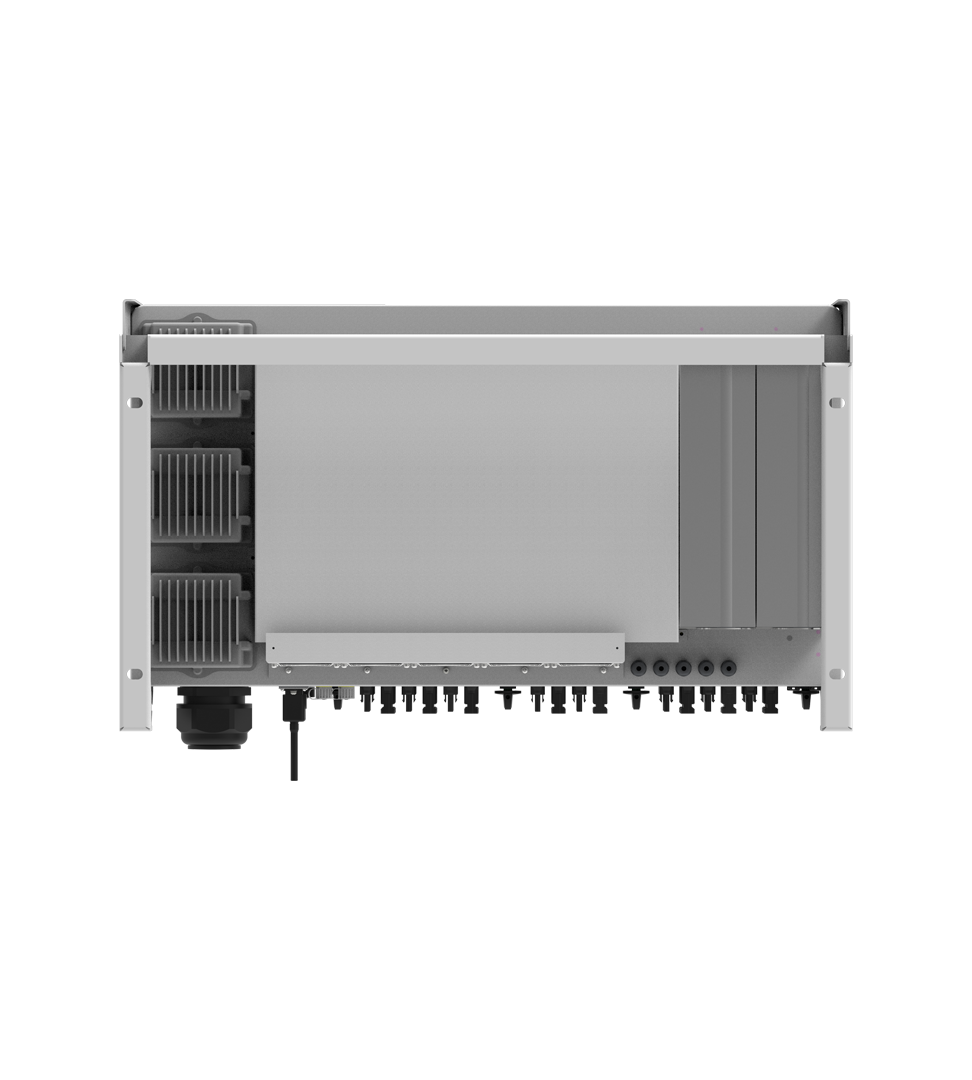

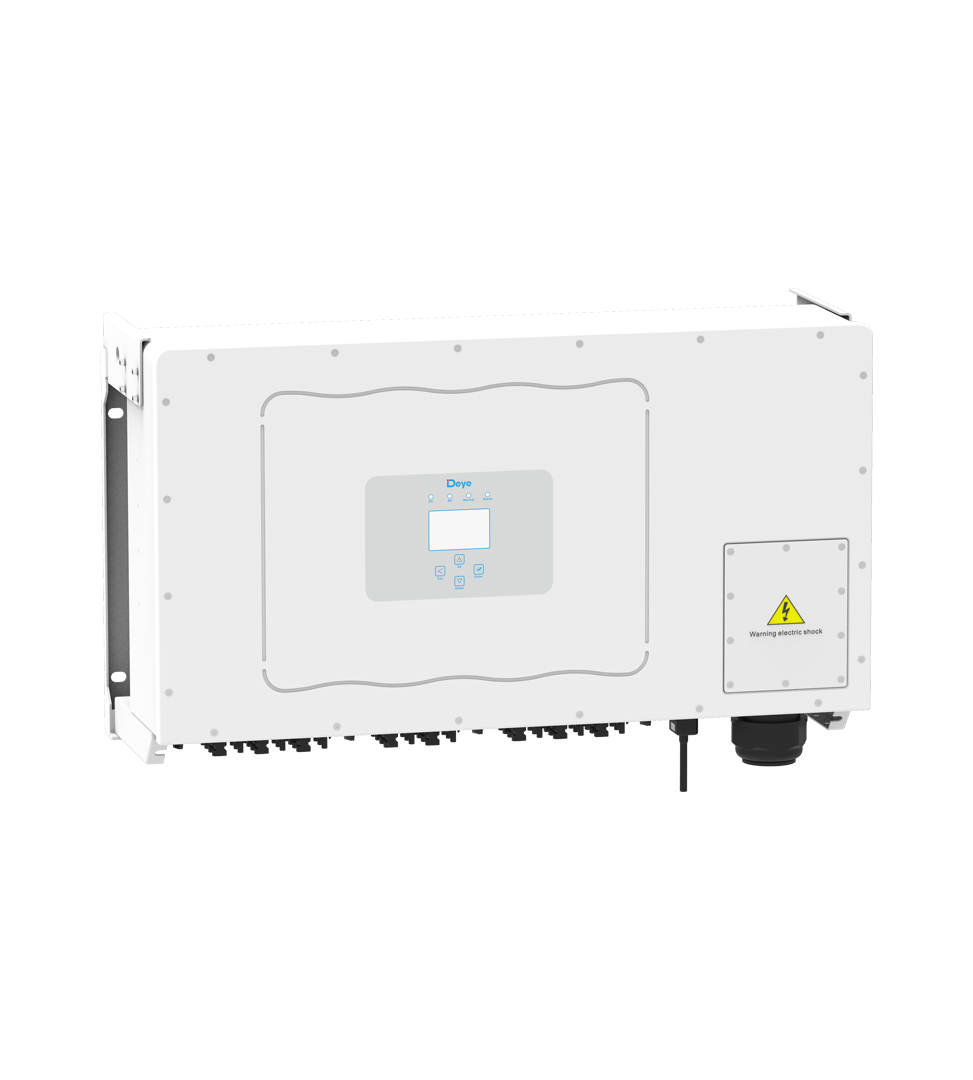

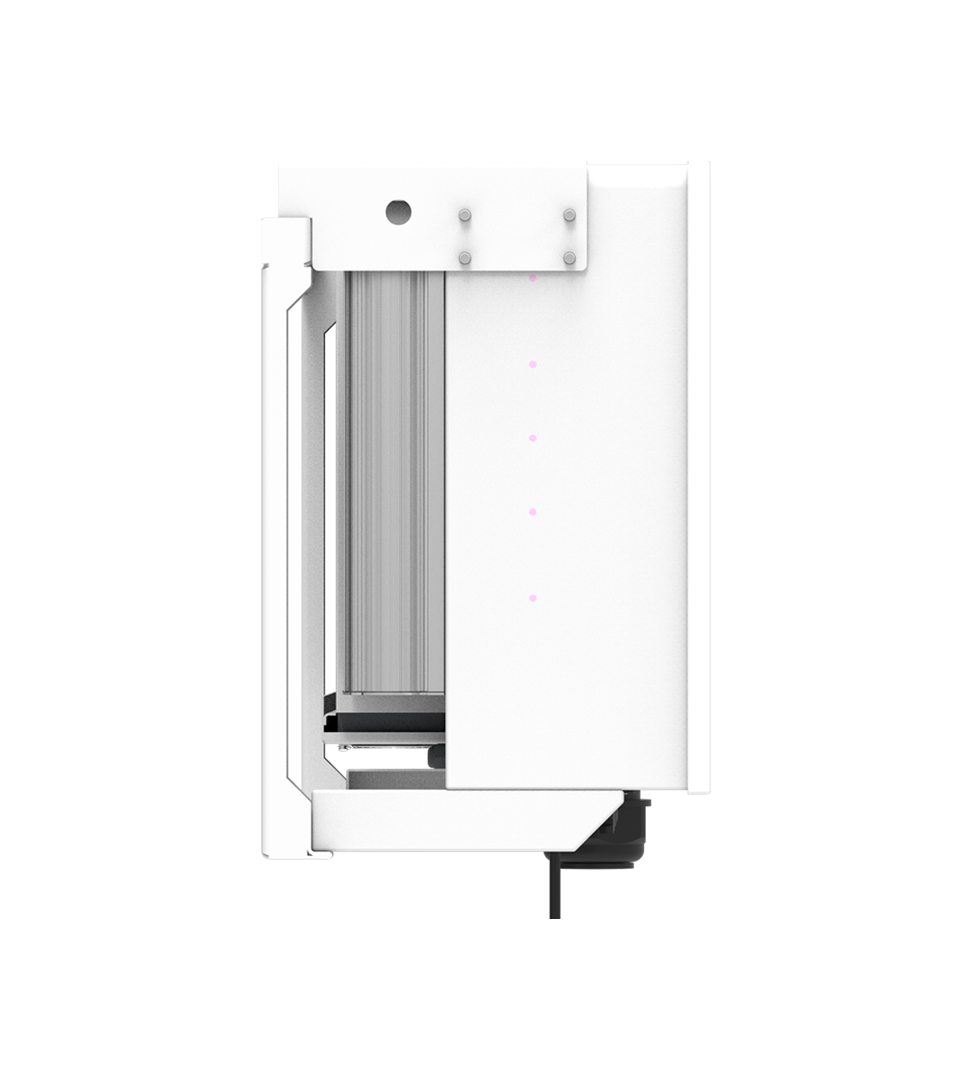

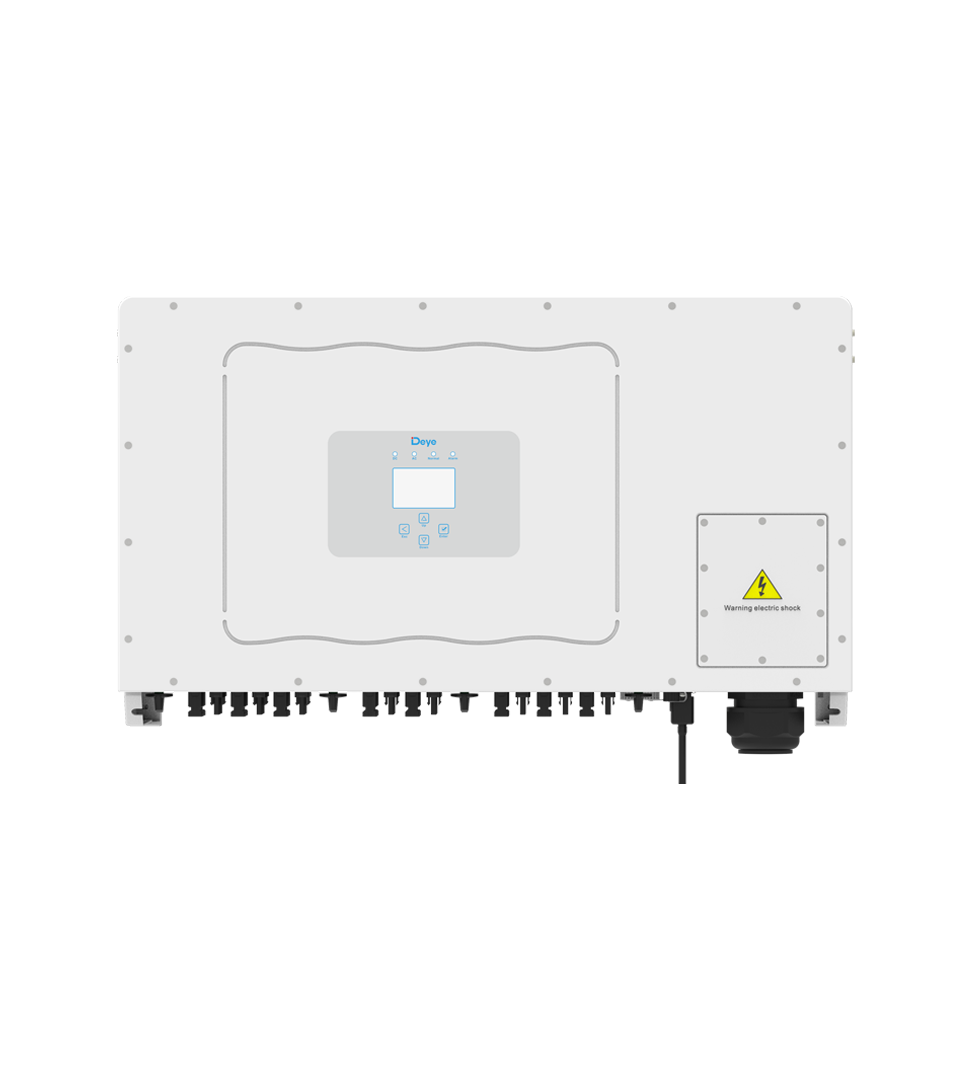

SUN-120/125/130/135/136-G01P3-EU-AM8

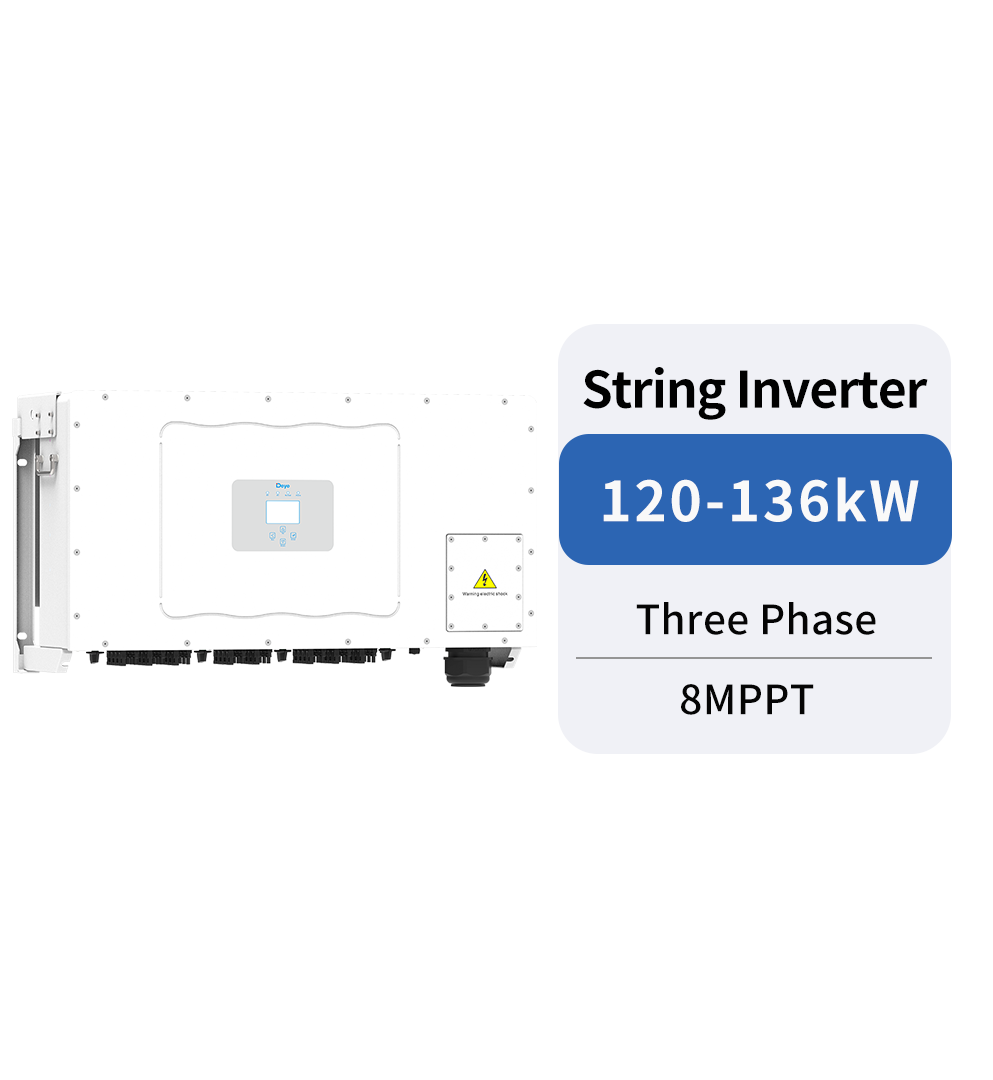

Three Phase | 120-136kW | 8 MPPT

Ningbo Deye Inverter Technology Co.，Ltd.

Remotely shutdown function

Smart Monitoring Platform

Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

8 MPP trackers, Max. effiffifficiency up to 98.8%
Zero export application, VSG application
String intelligent monitoring (optional)
Wide output voltage range
Anti-PID function (Optional)
Type II DC/AC SPD

DOWNLOAD AREA

>> Download Certificate <<

certificate_emc+eniec61000-2

certificate_iec61727+iec62116+iec61683+iec60068
certificate_lvd+en62109

certificate_tuvmark+en62109

eudeclaration-sun-120-136k-g01p3-eu-am8+231012003

certificate_dubai-1

certificatefrance+en50549-1 0

certificateen50549-10-1

Technical Specifications

SUN-120K-G01P3
SUN-125K-G01P3
SUN-130K-G01P3
SUN-135K-G01P3
SUN-136K-G01P3
Feedback

Model	SUN-120K-G01P3	SUN-125K-G01P3	SUN-130K-G01P3	SUN-135K-G01P3	SUN-136K-G01P3
PV String Input Date
Max. PV Input Power(kW)	180	187.5	195	202.5	204
Max. PV Input Voltage(V)	1100
Start-up Voltage(V)	250
MPPT voltage range(V)	200-1000
Rated PV Input voltage(V)	600
Max. Input Short Circuit Current (A)	60+60+60+60+60+60+60+60
Max. Operating PV Input Current(A)	40+40+40+40+40+40+40+40
No. of MPP Trackers/No. of Strings per MPP Tracker	8/4+4+4+4+4+4+4+4
AC Output Side
Rated AC Output Active Power(kW)	120	125	130	135	136
Max. AC Output Apparent Power(kVA)	132	135	135	135	136
Rated AC output current (A)	181.9/174	189.4/181.2	197/188.5	204.6/195.7	206.1/197.2
Max. AC Output Current(A)	200/191.4	204.6/195.7	204.6/195.7	204.6/195.7	206.1/197.2
Rated output voltage/range (V)	220/380V, 230/400V 0.85Un-1.1Un
Grid Connection Form	3L+N+PE
Rated Output Grid Frequency/range(Hz)	50/45-55, 60/55-65
Power Factor Adjustment Range	0.8 leading to 0.8lagging
Total Current Harmonic Distortion THDi	<3%
DC Injection Current	<0.5%ln
Efficiency
Max. Efficiency	98.8%
Euro Efficiency	98.2%
MPPT Efficiency	＞99%
Equipment Protection
DC Reverse Polarity Protection	Yes
AC Output Overcurrent Protection	Yes
AC Output Overvoltage Protection	Yes
AC Output Short Circuit Protection	Yes
Thermal Protection	Yes
Insulation Impedance Detection	Yes
DC Component Monitoring	Yes
Arc Fault Circuit Interrupter (AFCI)	Optional
Anti-islanding Protection	Yes
Residual Current Detection	Yes
Surge Protection Level	TYPE II(DC),TYPE II(AC)
DC Switch	Yes
Interface
Communication Interface	RS485/RS232
Monitor Mode	GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range (°C)	‘-25 to +60℃, >45℃ Derating
Permissible Ambient Humidity	0~100%
Permissible Altitude (m)	4000m
Noise (dB)	≤ 65
Ingress Protection(IP) Rating	IP 65
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC),OVC III(AC)
Cabinet Size (WxHxD mm)	1006mm516mm325.5mm（Excluding connectors and brackets）
Weight [kg]	103
Warranty	5 years
Type Of Cooling	Intelligent air cooling
Grid Regulation	IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
