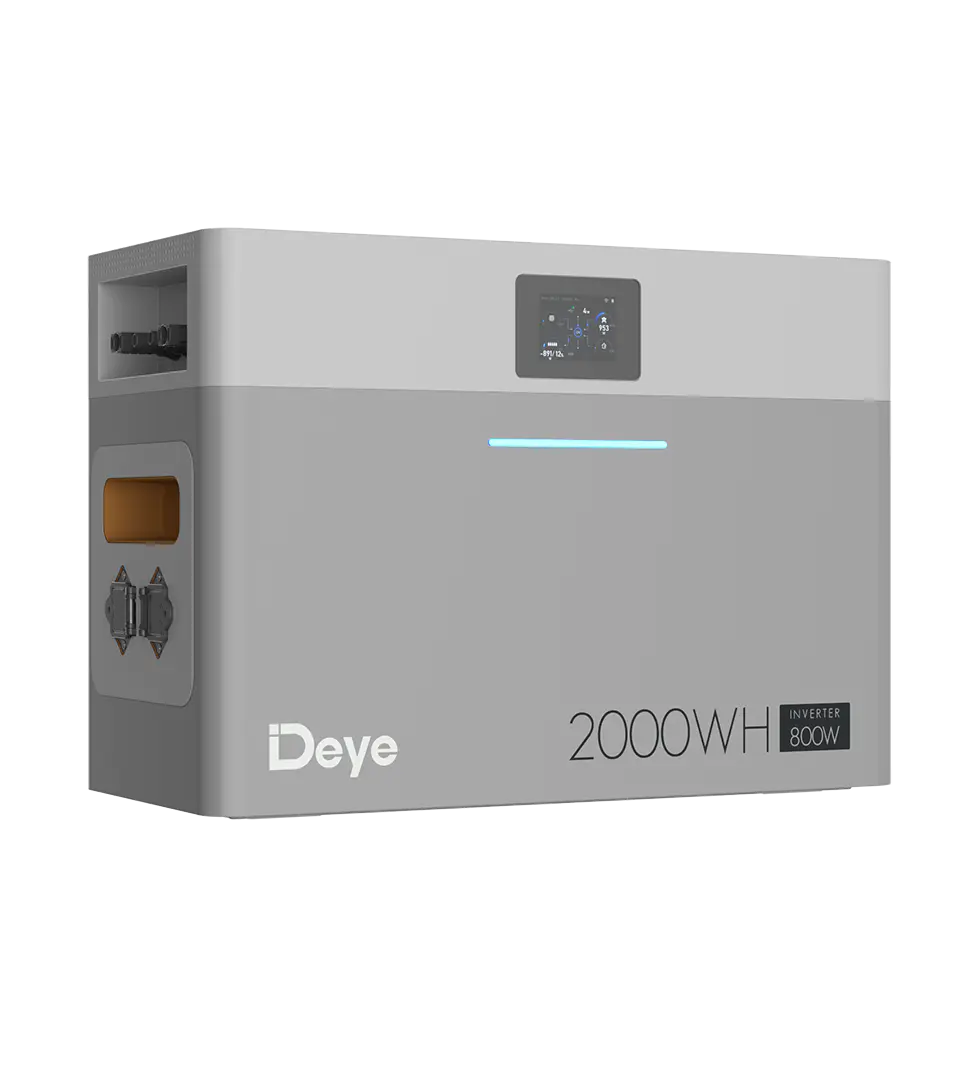

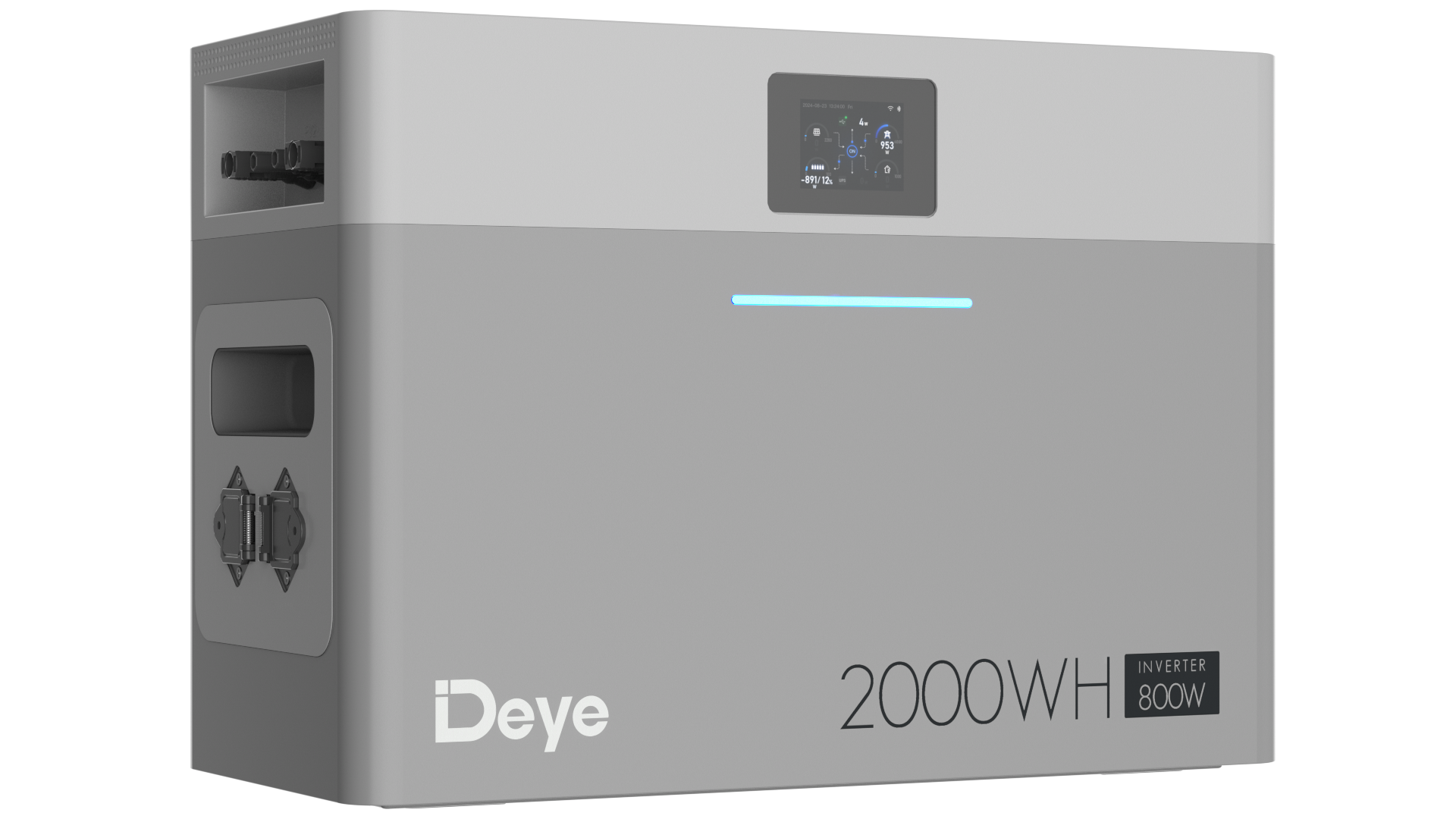

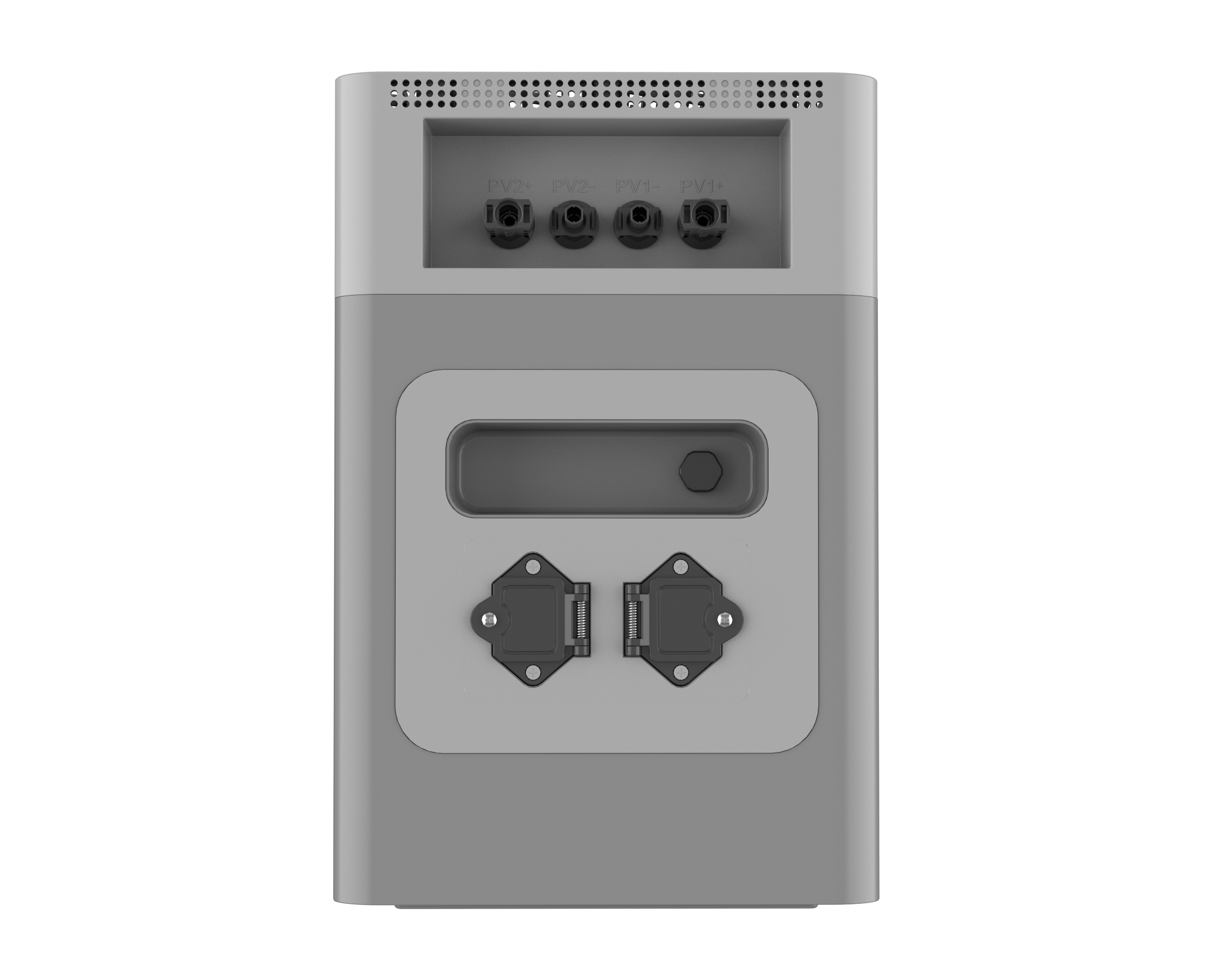

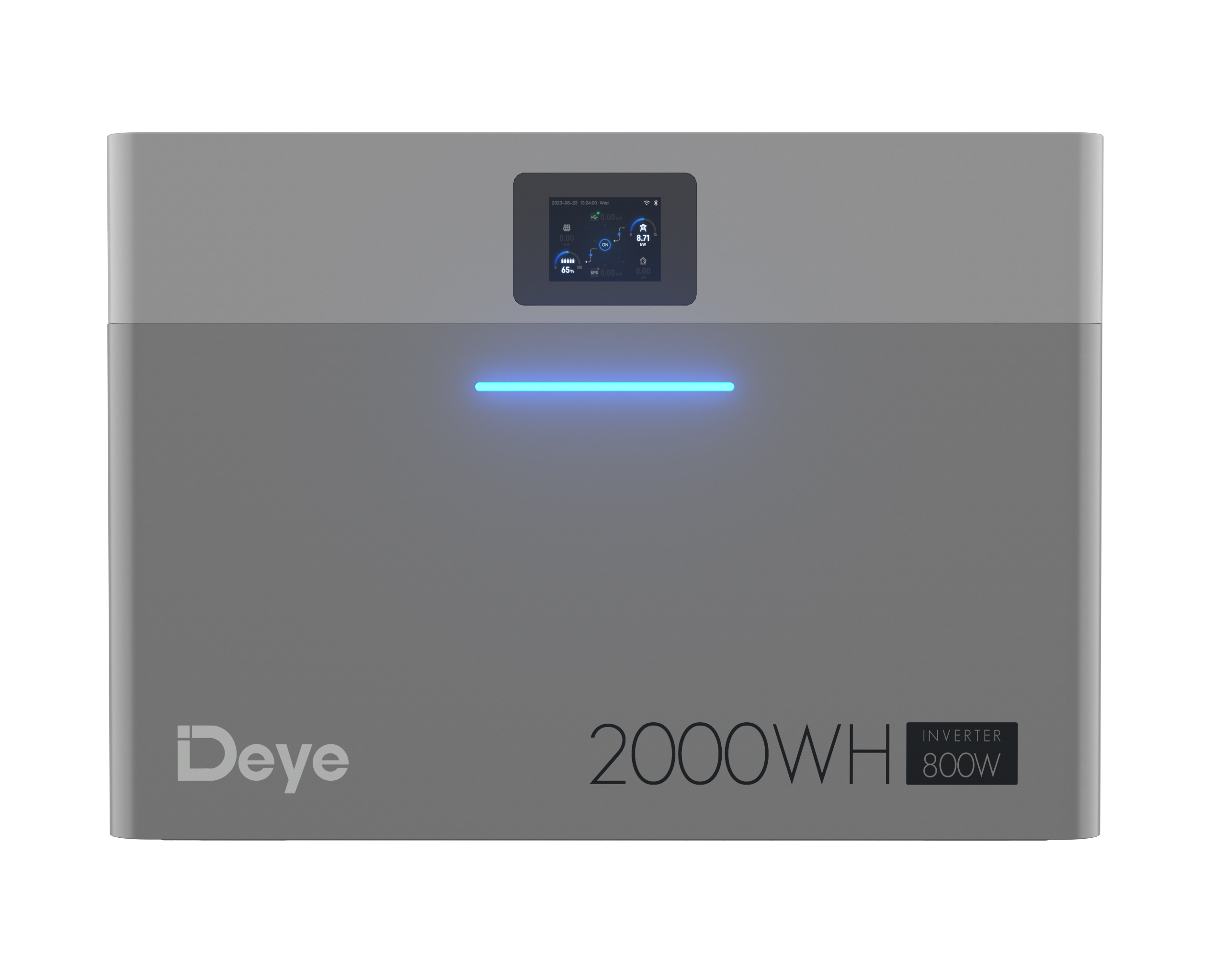

SUN-BK(60-100)-2.0KWH-EU-AM2

Suitable for on-grid, off-grid, and portable use

Ningbo Deye Inverter Technology Co.，Ltd.

Remotely shutdown function

Smart Monitoring Platform

Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

Hybrid Grid-Tied Mode Self-consumption
Off-Grid Mode Standalone & portable energy storage
AC-Coupled Mode Upgrade the existing PV balcony system to ESS
UPS-Grade Backup Power Grid-tie and off-grid switchover time is less than 4ms
1000W Rated Power AC Charge/Discharge
Quiet Operation Fanless design with natural cooling

DOWNLOAD AREA

>> Download Datasheet <<

Technical Specifications

SUN-BK60-2.0KWH-EU-AM2
SUN-BK80-2.0KWH-EU-AM2
SUN-BK100-2.0KWH-EU-AM2
Feedback

Model	SUN-BK60-2.0KWH-EU-AM2	SUN-BK80-2.0KWH-EU-AM2	SUN-BK100-2.0KWH-EU-AM2
AC Technical Speciﬁcation
Nominal Input / Output Power / UPS Power	600 / 660W	800 / 880W	1000 / 1000W
AC Input / Output Frequency and Voltage	50Hz ( 45Hz ~ 55Hz ) , 60Hz ( 55Hz ~ 65Hz ) , L / N ( PE ) , 220 / 230 Vac
Grid Type	Single phase
Rated Grid Input / Output Current	2.8A / 2.7A	3.7A / 3.5A	4.6A / 4.4A
Max.Grid Input / Output Current	3.0A / 2.9A	4.0A / 3.9A	5.0A / 4.8A
Peak Power ( oﬀ-grid )	2 time of rated power, 10s
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Max. Bypass ( Grid to Load )	10A
DC Injection Current	THD<3% ( Linear load<1.5% ) mA
PV Technical Speciﬁcation
Max. PV Access Power	1320W	1760W	2200W
Max. PV Input Power	960W	1280W	1600W
Max. PV Input Current	18A+18A
Max. PV Short-Circuit Current	27A+27A
Rated PV Input Voltage	42.5V ( 20V ~ 55V )
Start Up DC Voltage	25Vdc
MPPT Voltage Range	20 ~ 55V
Number of MPPT	2
Battery Chemistry	LiFePO4
Battery Nominal Voltage	51.2V
Battery Nominal Energy	2000Wh
Battery Operating Voltage	44.8V ~57.6V
Battery Cycle Life	≥6000 ( @25°C±2°C, 0.5C / 0.5C, 70%EOL )
Other Technical Speciﬁcation
Display	Colorful Touch LCD & APP & Battery LED ( SOC, Alarm )
Communication Interfaces	Wi-Fi, Bluetooth
Dimension ( W × D × H )	450 × 210 × 321mm
Operating Temperature Range	-10°C ~ 50°C
Max. Operating Altitude	2000m
Relative Humidity	0% ~ 95% ( No Condensing )
Safety EMC / Standard	IEC/EN61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Grid Regulation	VDE 4105,IEC 61727/62116,VDE 0126,AS 4777.2,CEI0-21,EN 50549-1,G98,G99,C10-11, UNE217002,NBR16149/NBR 16150
Battery Certiﬁcation	UN38.3, IEC 62619
Installation Style	Floor-Mounted
Warranty	10 years
Model	AE-F2.0
Battery Technical Speciﬁcation
Battery Chemistry	LiFePO4
Battery Nominal Voltage	51.2V
Battery Nominal Energy	2000Wh
Max. Charging / Discharging Current	40A
Battery Operating Voltage	44.8V ~ 57.6V
Battery Cycle Life	≥6000 ( @25°C±2°C, 0.5C / 0.5C, 70%EOL )
Parallel Capability	5 pcs*
Other Technical Speciﬁcation
Display	LED ( SOC, Alarm )
Communication Interfaces	CAN2.0, LoRa
Dimension ( W × D × H )	450 × 210 × 244mm
Weight Approximate ( kg )	20
Operating Temperature Range	-10°C ~ 50°C
Max. Operating Altitude	2000m
Relative Humidity	0% ~ 95% ( No Condensing )
Certiﬁcation	UN38.3, IEC 62619, CE
Installation Style	Floor-Mounted
Warranty	10 years
