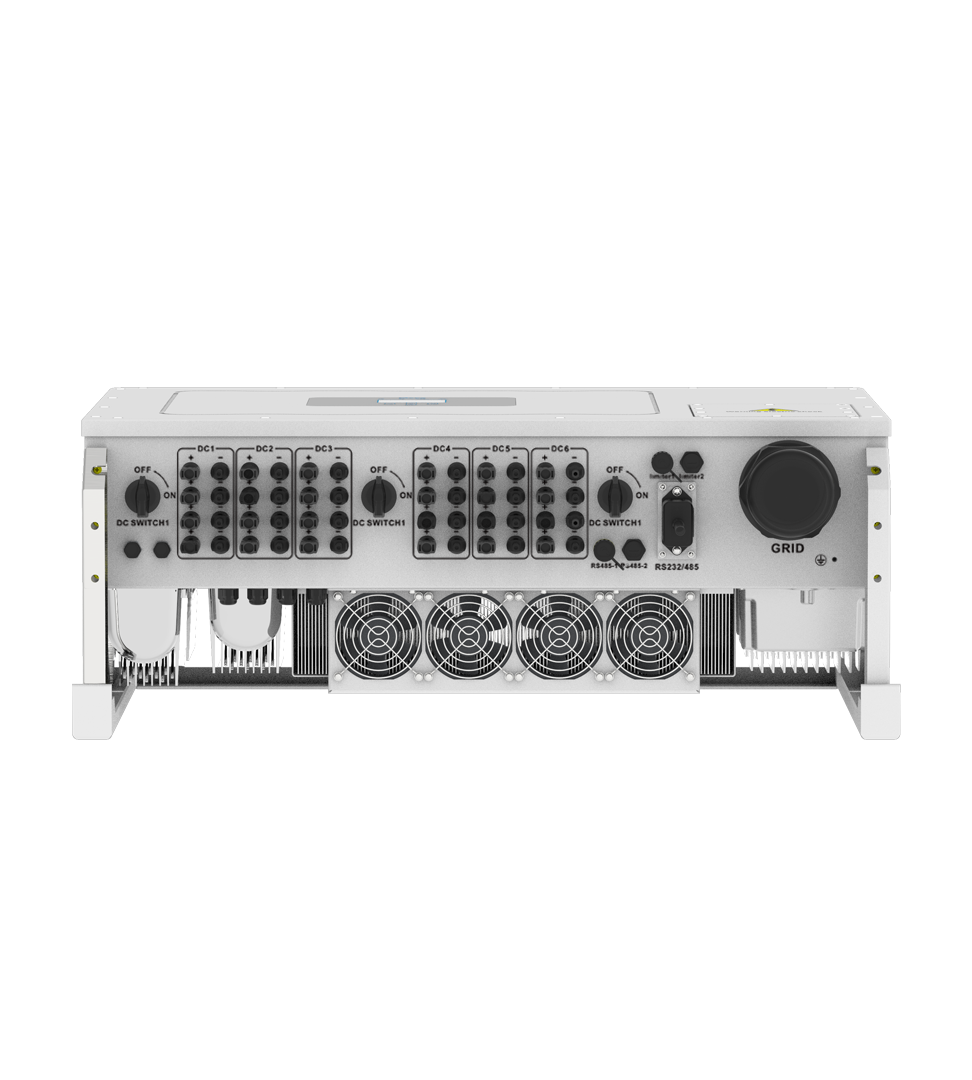

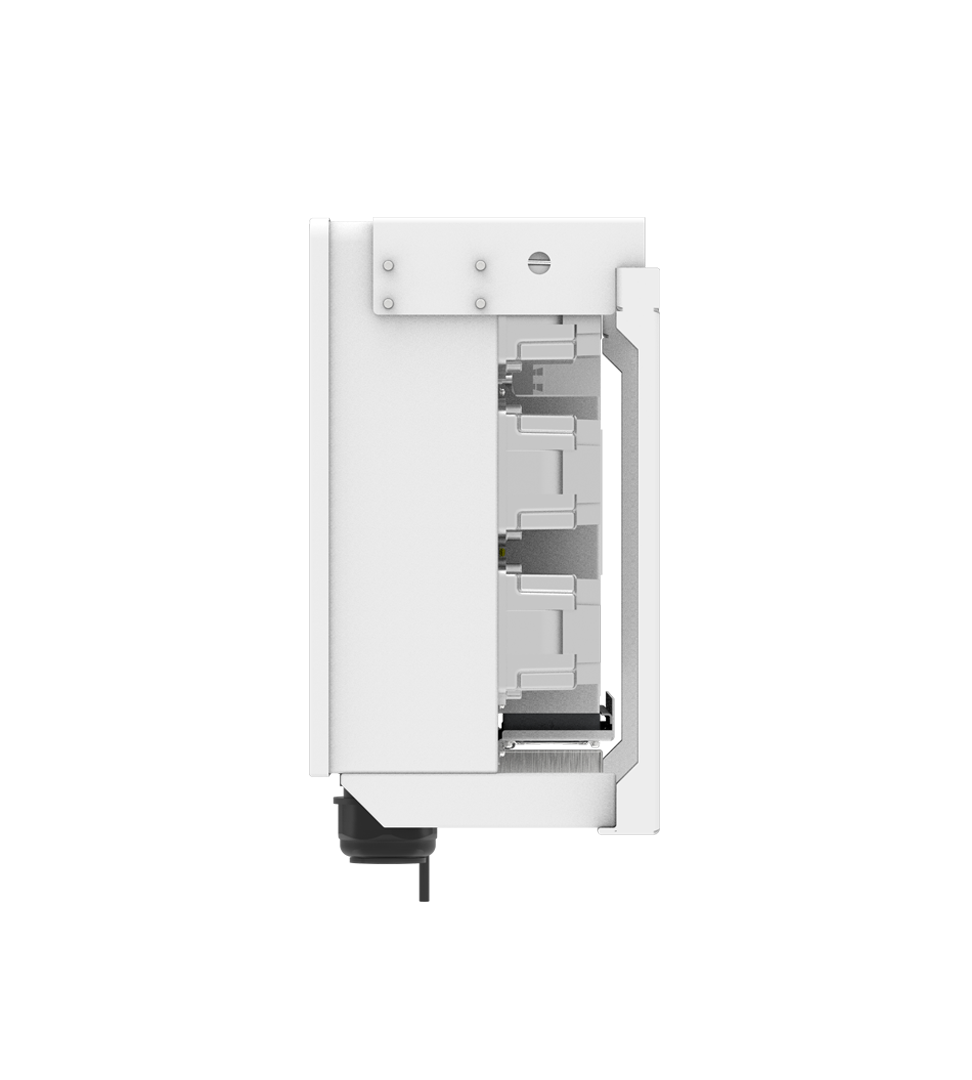

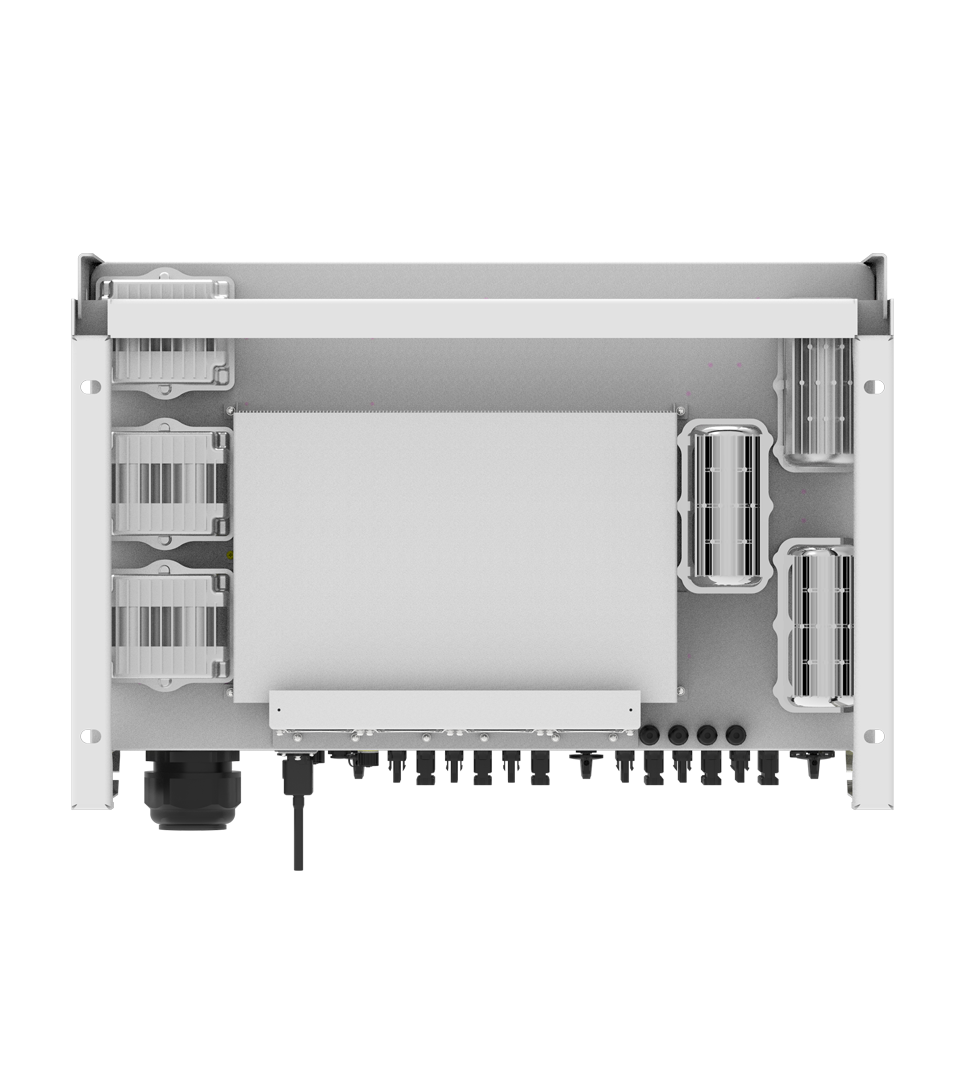

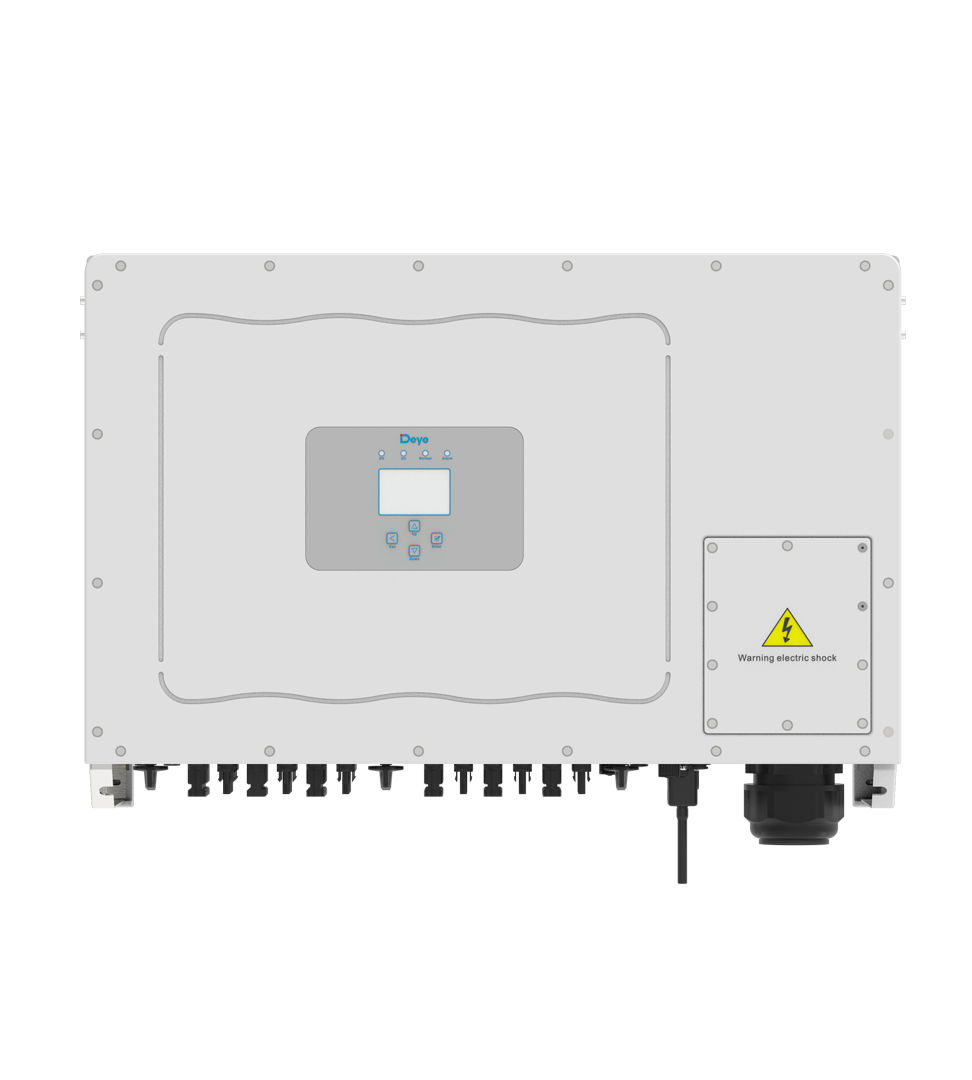

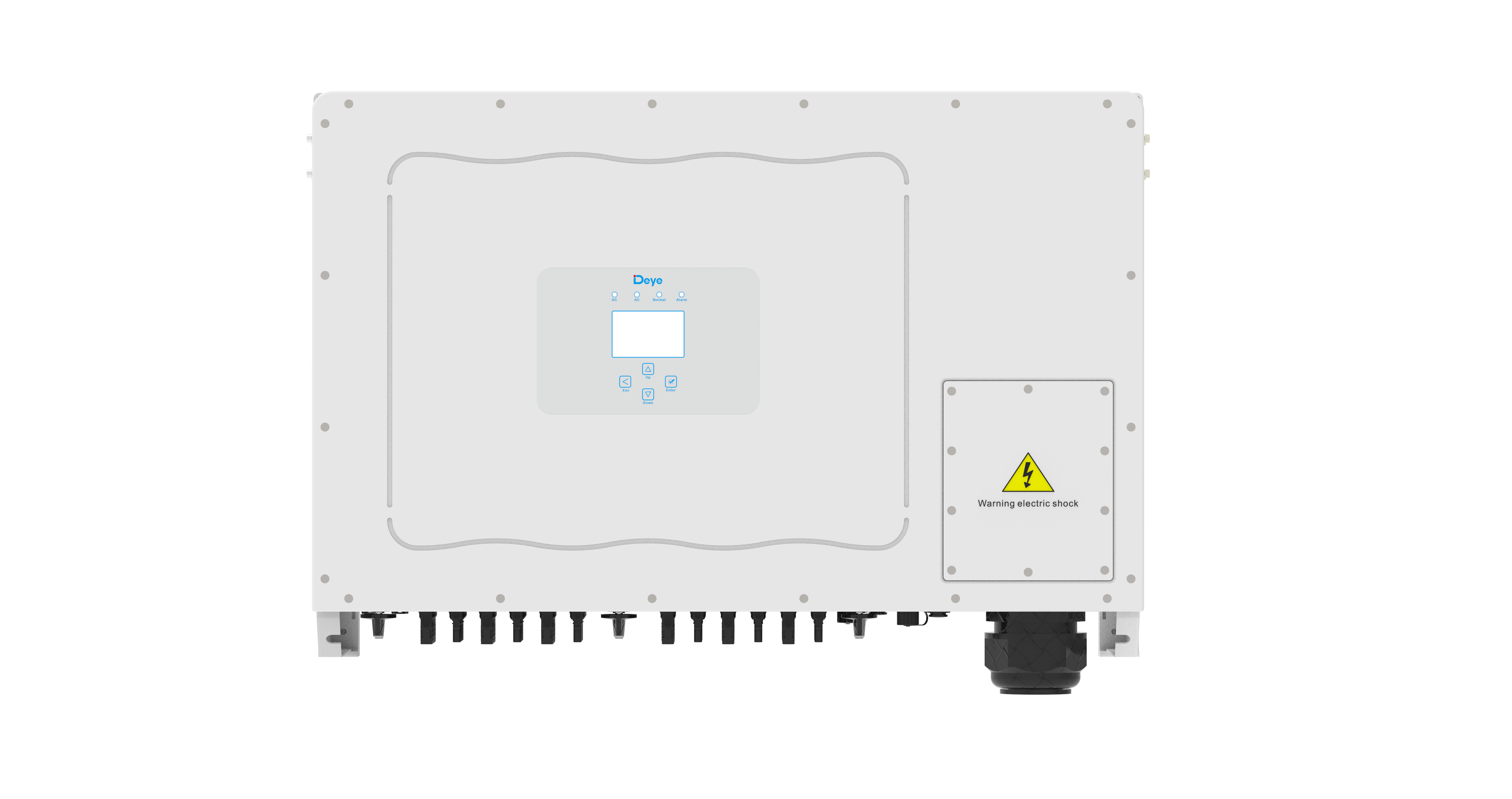

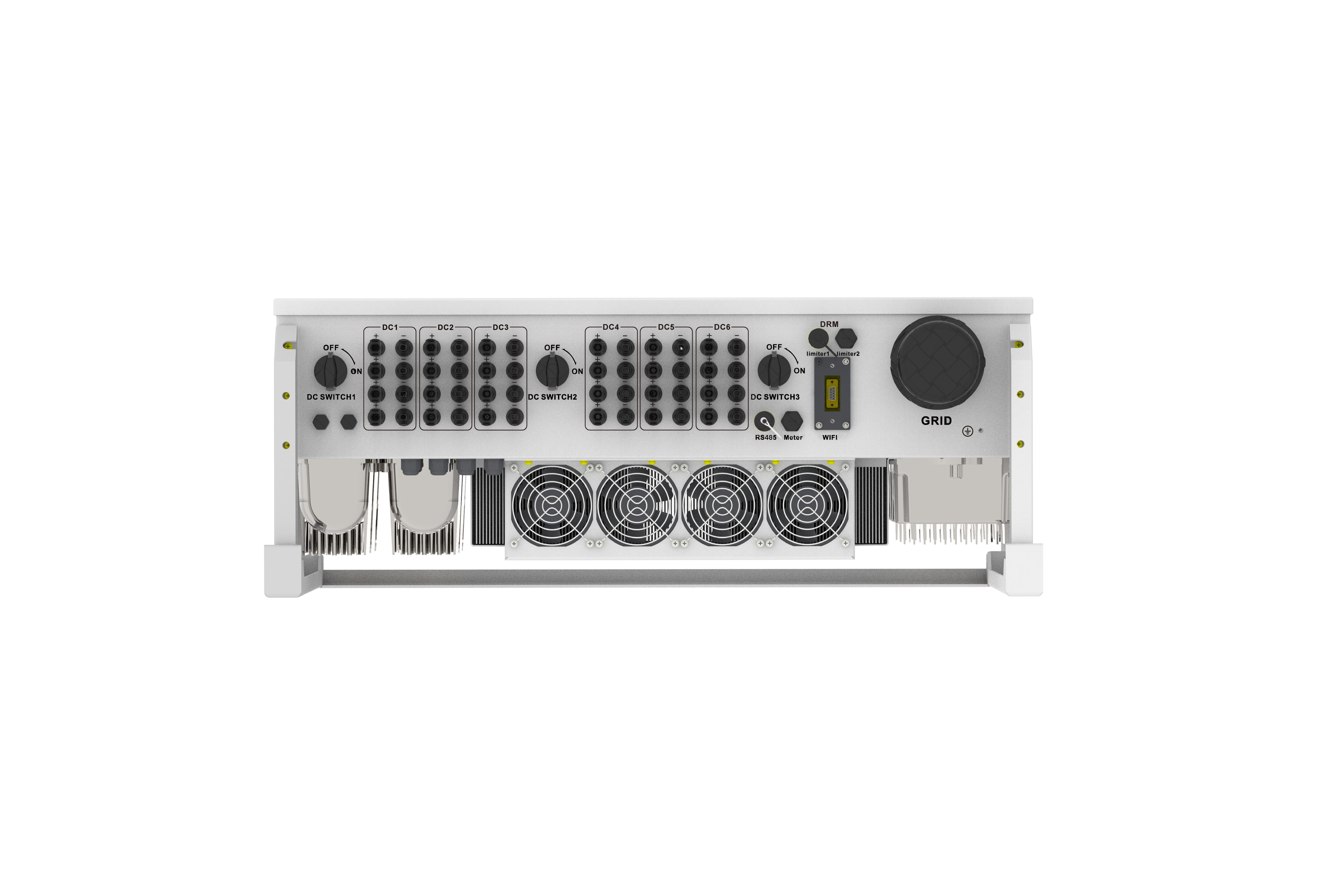

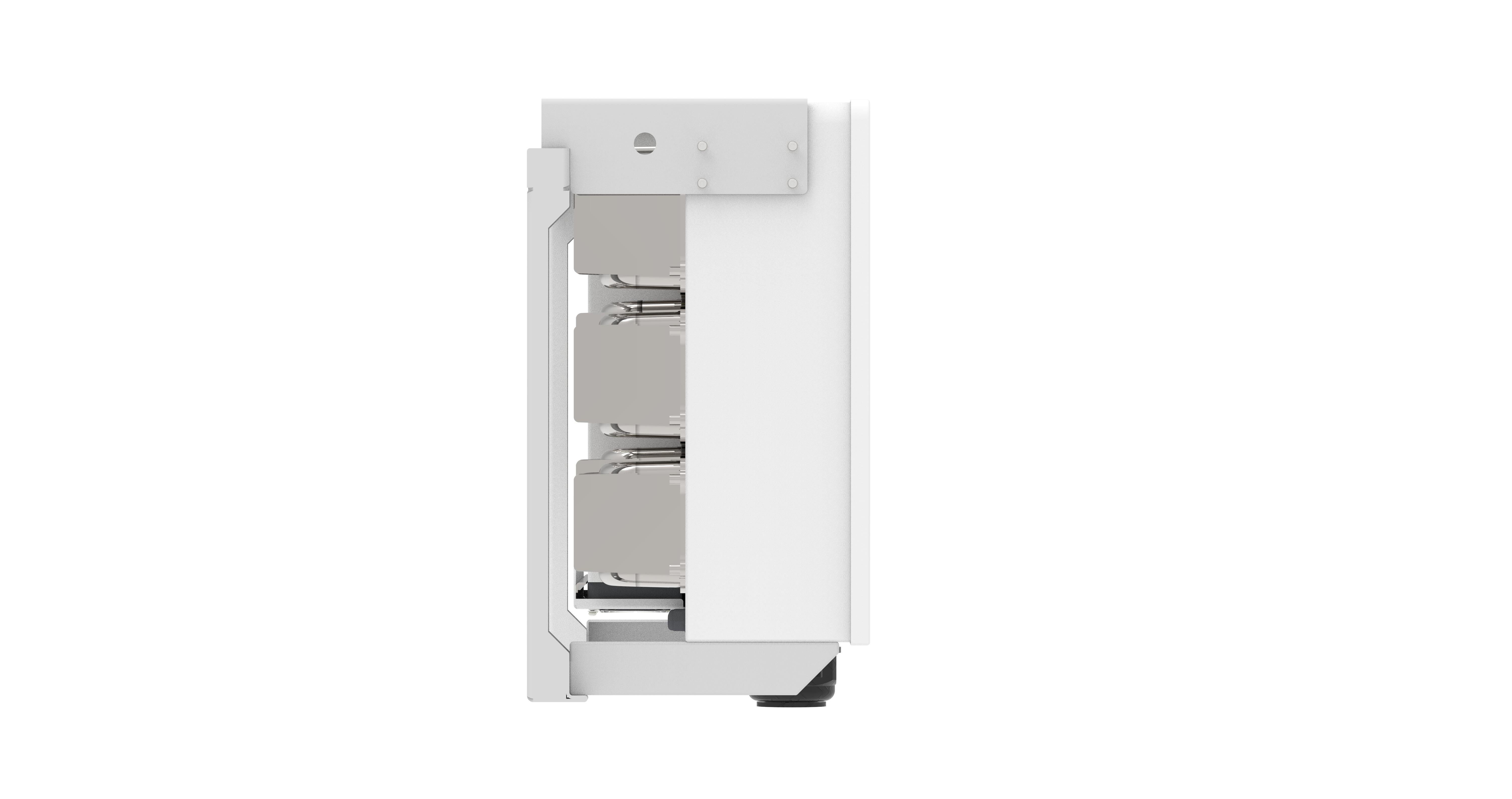

SUN-70/75/80/90/100/110K-G03 | 70-110kW | Three Phase | 6 MPPT

Higher yields / Safe & Reliable / Smart / User-friendly

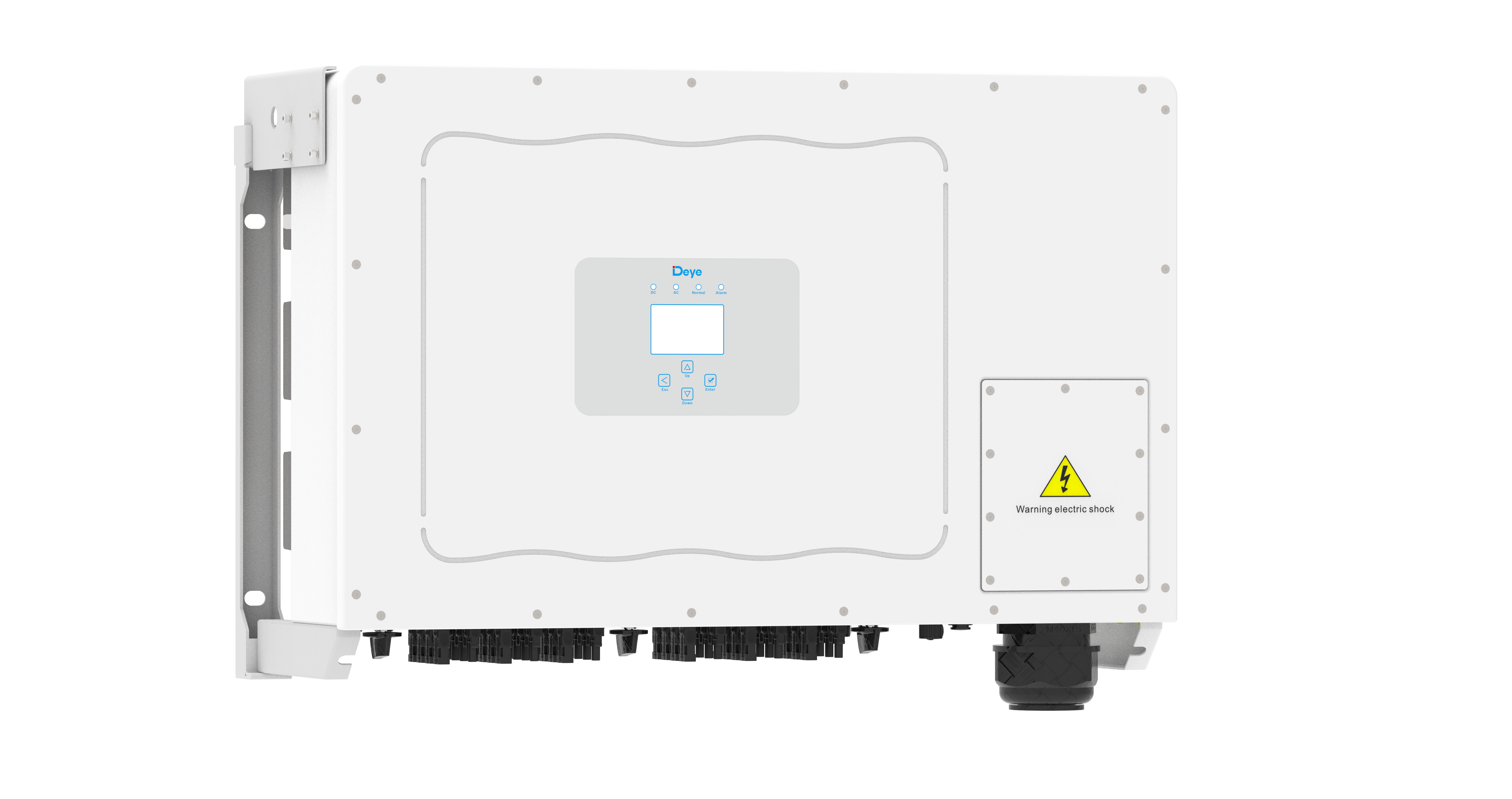

The Deye 70-110K grid-connected inverter is suited for medium and large-scale commercial rooftops and ground-mounted solar PV system in which reliability and stability are important. the full series inverter has 30% DC input oversizing ratio and 10% AC output overloading ratio, offering a faster return on investment.

SUN-70/75/80/90/100/110K-G03 | 70-110kW | Three Phase | 6 MPPT

Ningbo Deye Inverter Technology Co.，Ltd.

Remotely shutdown function

Smart Monitoring Platform

Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

Max. 6 MPP trackers, Max. efficiency up to 98.8%
Zero export application, VSG application
String intelligent monitoring (optional)
Wide output voltage range
Type II DC/AC SPD
Anti-PID function (Optional)

DOWNLOAD AREA

Technical Specifications

SUN-70K-G03
SUN-75K-G03
SUN-80K-G03
SUN-90K-G03
SUN-100K-G03
SUN-110K-G03
Feedback

Model	SUN-70K-G03	SUN-75K-G03	SUN-80K-G03	SUN-90K-G03	SUN-100K-G03	SUN-110K-G03
PV String Input Date
Max. PV Input Power(kW)	91	97.5	104	135	150	150
Max. PV Input Voltage(V)	1000
Start-up Voltage(V)	250
MPPT voltage range(V)	200-850
Rated PV Input voltage(V)	600
Max. Input Short Circuit Current (A)	60+60+60+60			60+60+60+60+60+60
Max. Operating PV Input Current(A)	40+40+40+40			40+40+40+40+40+40
No. of MPP Trackers/No. of Strings per MPP Tracker	4/4+4+4+4			6/4+4+4+4+4+4
AC Output Side
Rated AC Output Active Power(kW)	70	75	80	90	100	110
Max. AC Output Apparent Power(kVA)	77	82.5	88	99	110	121
Rated AC output current (A)	106.1/101.5	113.6/108.7	121.2/115.9	136.4/130.4	151.5/144.9	166.7/159.4
Max. AC Output Current(A)	116.7/111.6	125/119.6	133.3/127.5	150/143.5	166.7/159.4	183.3/175.4
Rated output voltage/range (V)	220/380V, 230/400V 0.85Un-1.1Un
Grid Connection Form	3L+N+PE
Rated Output Grid Frequency/range(Hz)	50/45-55, 60/55-65
Power Factor Adjustment Range	0.8 leading to 0.8lagging
Total Current Harmonic Distortion THDi	<3%
DC Injection Current	<0.5%ln
Efficiency
Max. Efficiency	98.7%			98.8%
Euro Efficiency	98.1%			98.2%
MPPT Efficiency	＞99%
Equipment Protection
DC Polarity Reverse Connection Protection	yes
AC Output Overcurrent Protection	yes
AC Output Overvoltage Protection	yes
AC Output Short Circuit Protection	yes
Thermal Protection	yes
DC Terminal Insulation Impedance Monitoring	yes
DC Component Monitoring	yes
Ground Fault Current Monitoring	yes
Power Network Monitoring	yes
Arc Fault Circuit Interrupter (AFCI)	Optional
Island Protection Monitoring	yes
Earth Fault Detection	yes
Overvoltage Load Drop Protection	yes
Residual Current (RCD) Detection	yes
Surge Protection Level	TYPE II(DC),TYPE II(AC)
Interface
Communication Interface	RS485/RS232
Monitor Mode	GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range (°C)	-25 to +60℃, >45℃ Derating
Permissible Ambient Humidity	0~100%
Permissible Altitude (m)	4000m
Noise (dB)	≤ 55
Ingress Protection(IP) Rating	IP 65
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC),OVC III(AC)
Cabinet Size (WxHxD mm)	824mm516mm312.7mm（Excluding connectors and brackets）
Weight [kg]	81
Warranty [year]	5 years
Type Of Cooling	Intelligent air cooling
Grid Regulation	IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
