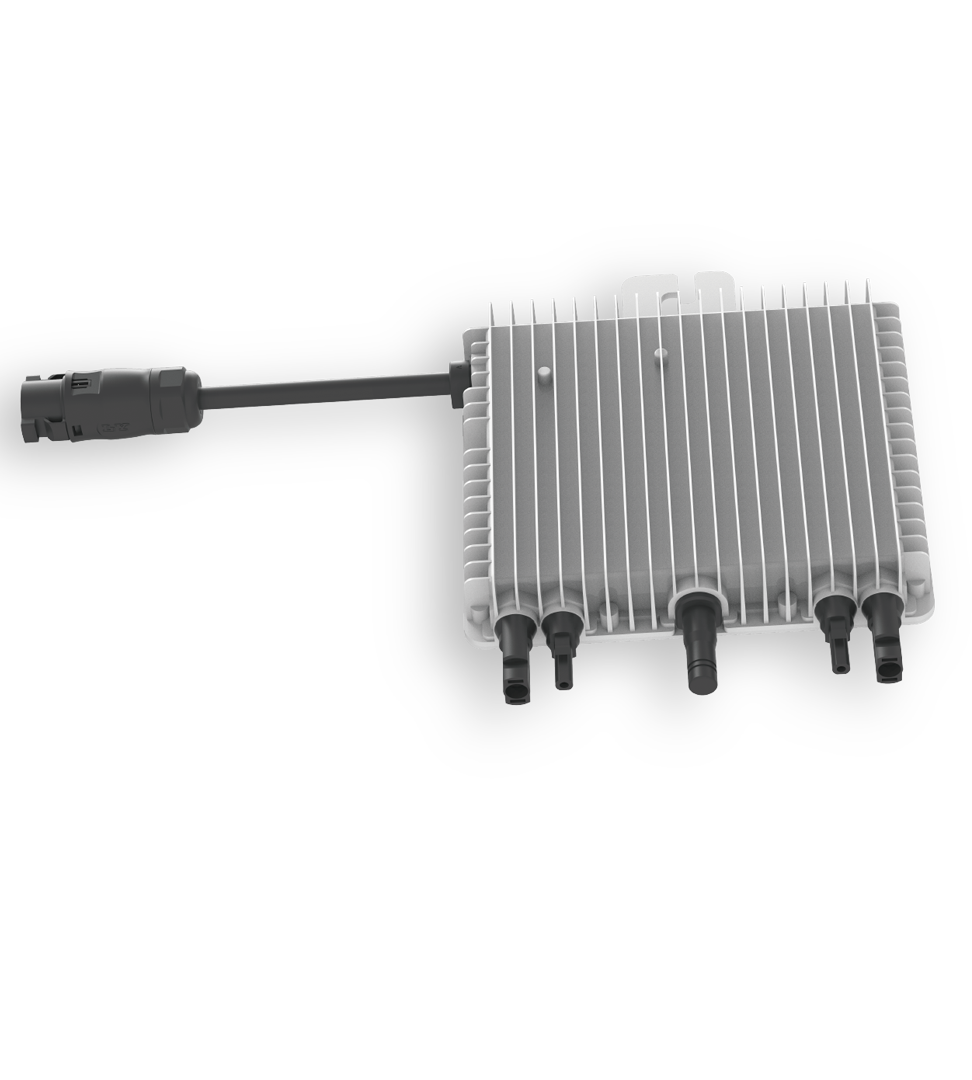

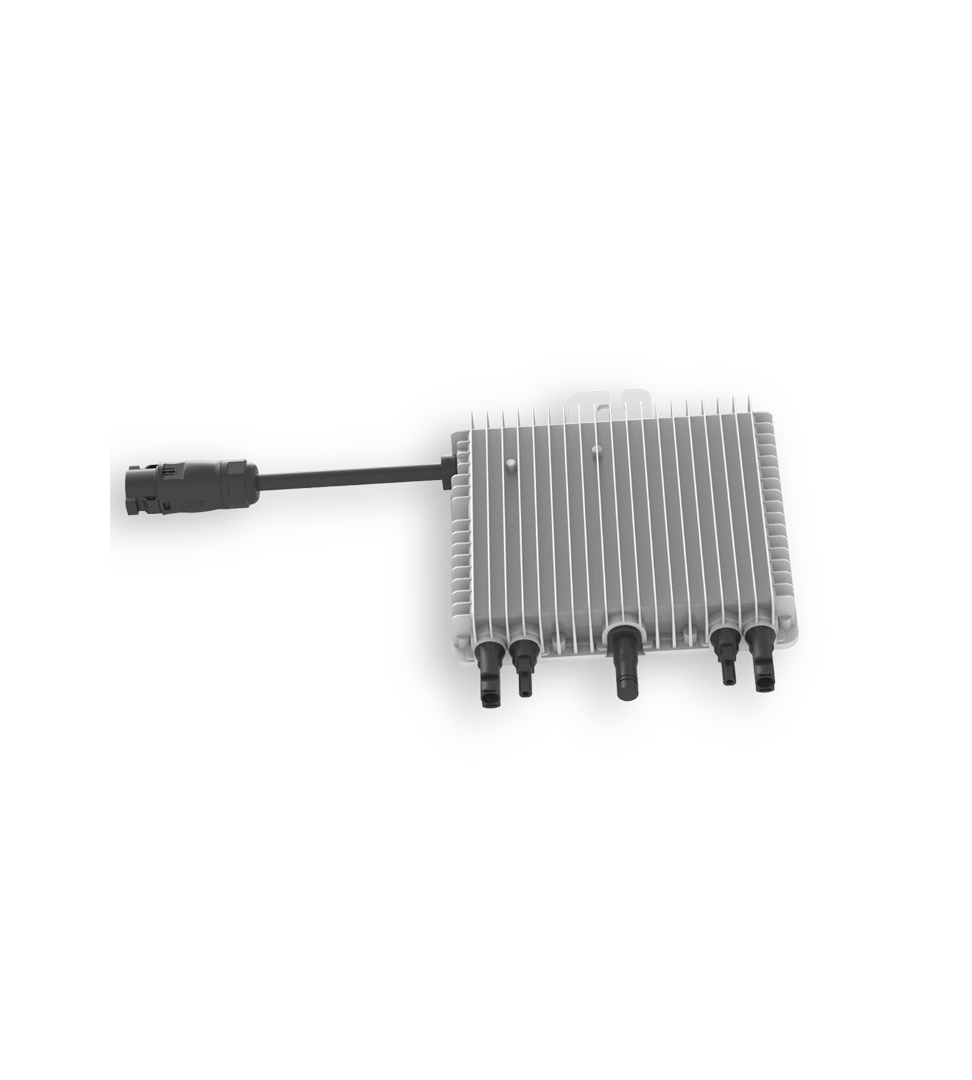

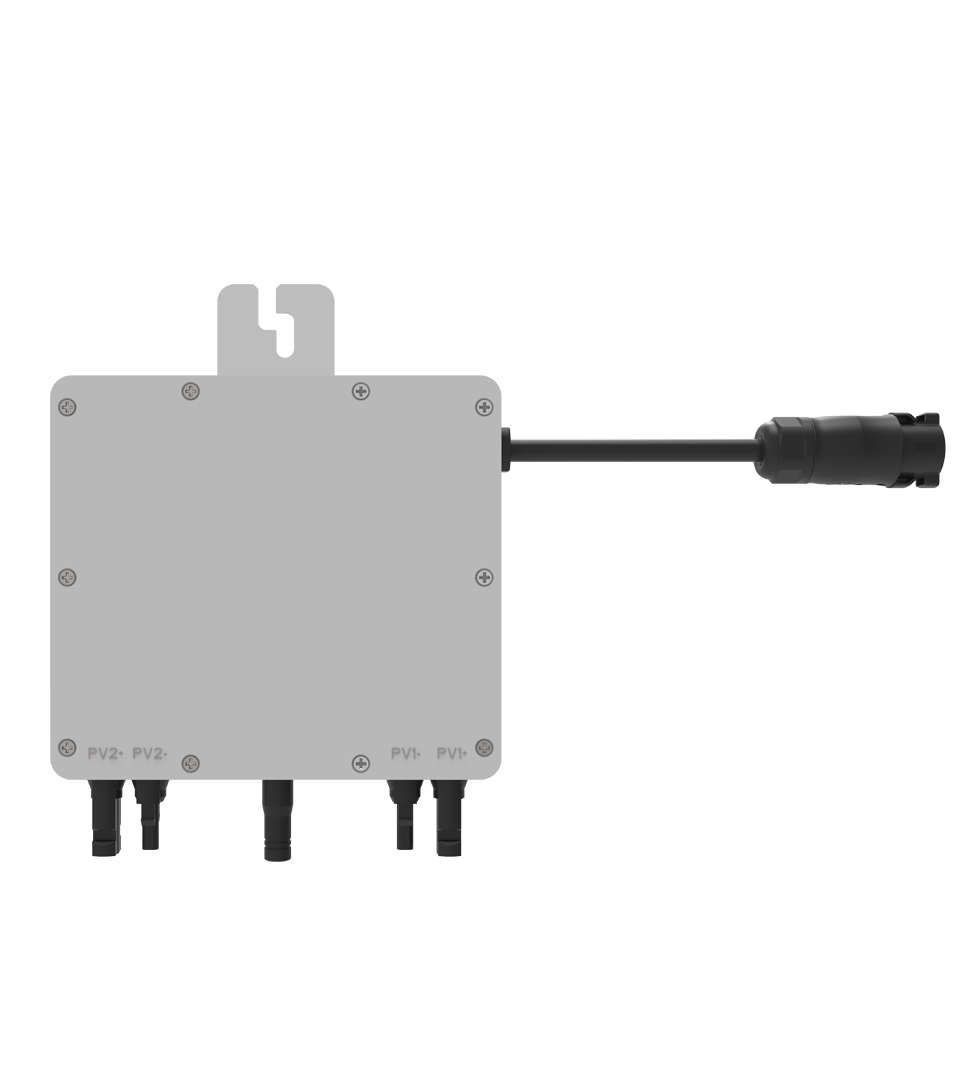

SUN-M60/80/100G3-EU-Q0 | 600-1000W | Single Phase | 2 MPPT | Micro Inverter

Higher returns / Safe / Smart / User-friendly

Remotely shutdown function

Smart Monitoring Platform

Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

IP67 protection degree, 15 years warranty
2 MPP trackers, module level monitoring
WIFI communication
Rapid shutdown function

DOWNLOAD AREA

>> Download Certificate << eniec61000-6-1：2019
en62920：2017_a1：2021
iec62109-1：2010en62109-1：2010
eniec62311：2020
cei0-21：2022-03_v1：2022-11
eudeclaration-sun-m60-100g3-eu-q0-230926002

Technical Specifications

SUN-M60G3-EU-Q0
SUN-M80G3-EU-Q0
SUN-M100G3-EU-Q0
Feedback

Model	SUN-M60G3-EU-Q0	SUN-M80G3-EU-Q0	SUN-M100G3-EU-Q0
Input data (DC)
Recommended Input Power (STC)	210-420W (2 Pieces)	210-600W (2 Pieces)	210-700W (2 Pieces)
Maximum Input DC Voltage (V)	60
MPPT Voltage Range (V)	25-55
Full Load DC Voltage Range (V)	30-55	33-55	40-55
Max. DC Short Circuit Current (A)	2×19.5
Max. Input Current (A)	2×13
No.of MPP Trackers	2
No.of Strings per MPP Tracker	1
Output Data (AC)
Max. Output Apparent Power (VA)	600	800	1000
Rated Output Power (W)	600	800	1000
Rated Output Current (A)	2.8/2.7	3.7/3.5	4.6/4.4
Max.AC Output Current (A)	2.8/2.7	3.7/3.5	4.6/4.4
Grid Connection Form Rated output voltage/range (V)	L+N+PE 220V/184V-242V 230V/ 195.5V-253V
Rated Grid Frequency/range (Hz)	50Hz/45Hz-55Hz 60Hz/55Hz-65Hz
Power Factor	>0.99
Total Harmonics Current Distortion (THDi)	<3%
Maximum Units per Branch	8	6	5
Efficiency
Max Effificiency	96.5%
Static MPPT efficiency	99%
Night Time Power Consumption	50mW
Mechanical Data
Ambient Temperature Range	-40-65℃, >45℃ derating
Cabinet Size (WxHxD mm)	190×212×40 (Excluding Connectors and Brackets)
Weight (kg)	2.8
cooling	Free Cooling
Enclosure Environmental Rating	IP67
Features
Communication	WIFI
Grid Connection Standard	IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, VDE-AR-N 4105
Safety EMC / Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Warranty	15 years

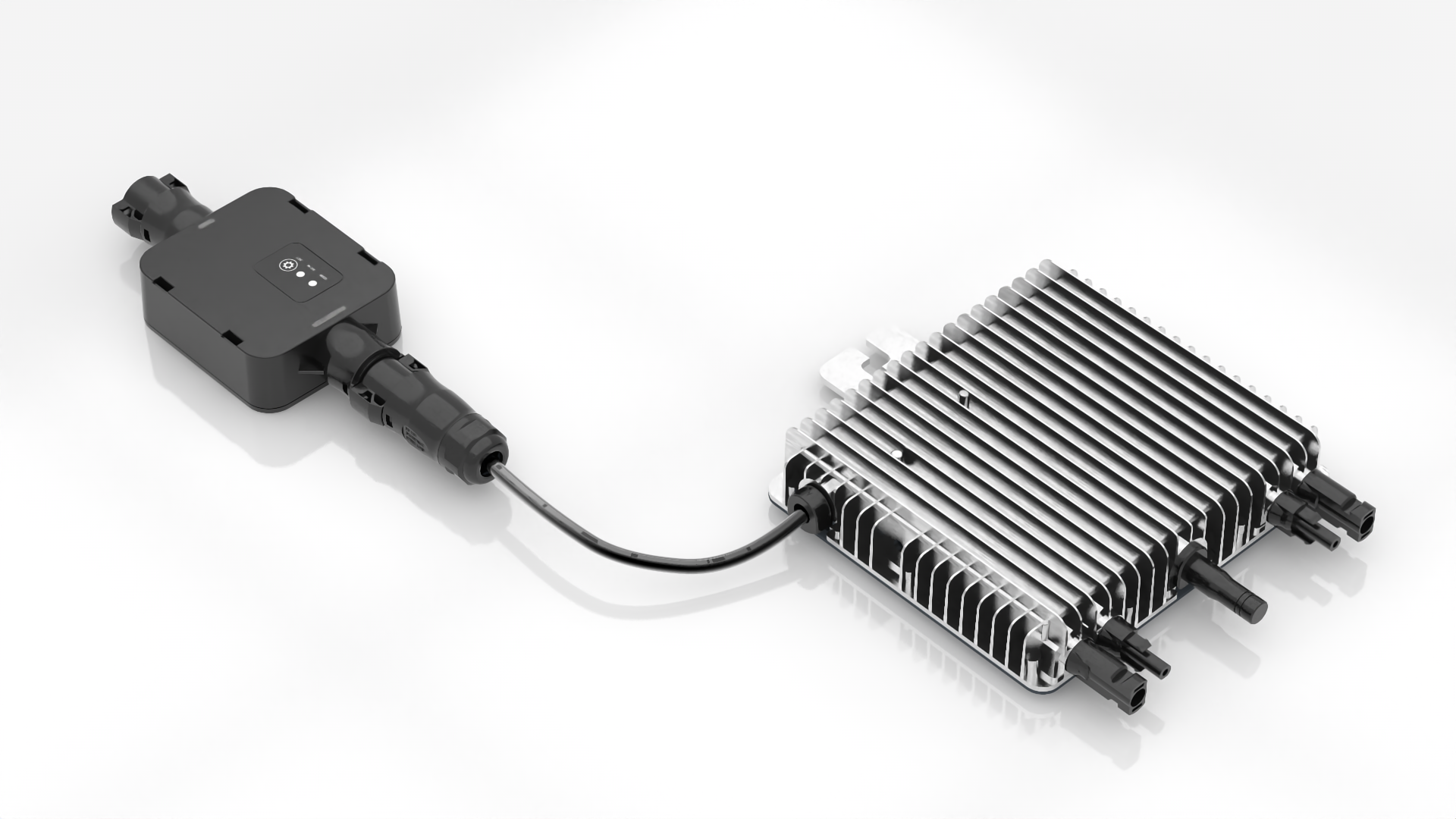

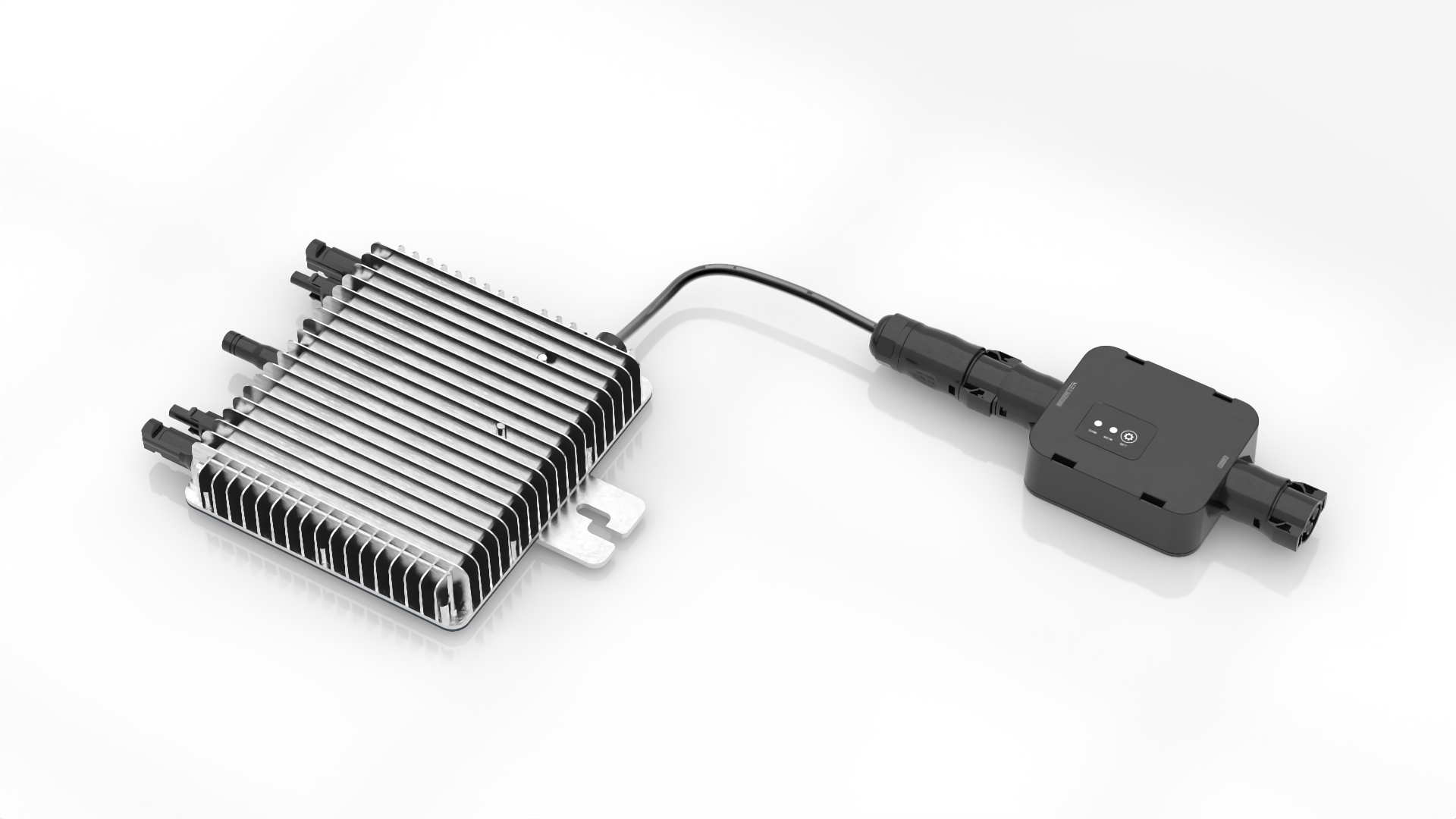

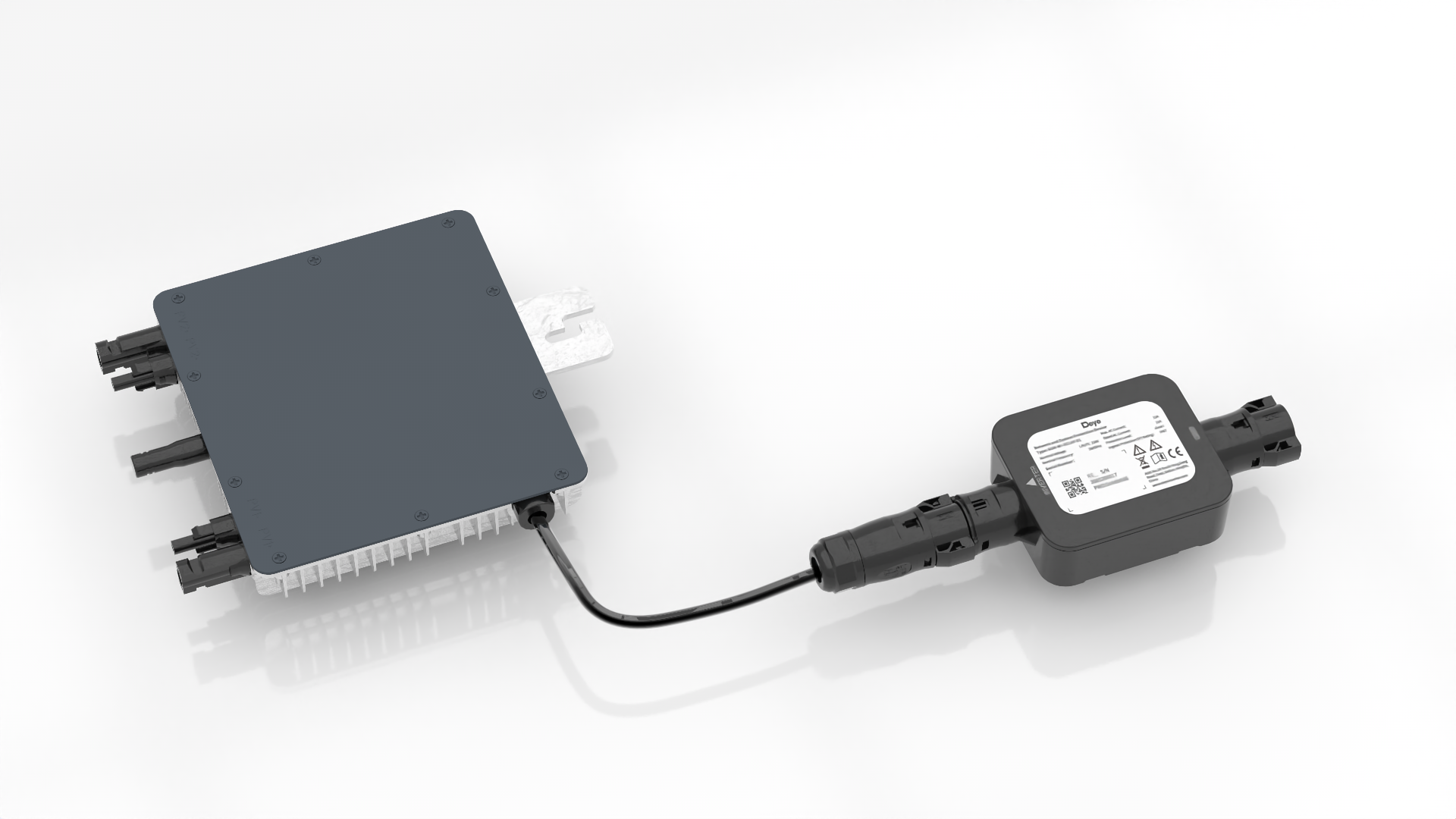

Network and System Protection Device	SUN-MI-RELAY-01
AC Intput Data (Inverter)
Nominal Voltage	220V/230V
Nominal Frequency	50Hz
Max AC Current	12A
Nominal AC Current	12A
Matching Inverter	MicroInverter
AC Output Data(Grid)
Nominal Voltage	220V/230V
Nominal Frequency	50Hz
Max AC Current	12A
Nominal AC Current	12A
General Data
Ambient Temperature Range	-40-65℃
Humidity	0%-100% RH
Cabinet Size (WxHxD mm)	111×95×37.7 (Excluding Connectors and Brackets)
Weight (kg)	0.34
Enclosure Environmental Rating	IP67
Communication	Wireless/WIFI
Safety EMC / Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2, VDE-AR-N 4105
Warranty	15 Years
