Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

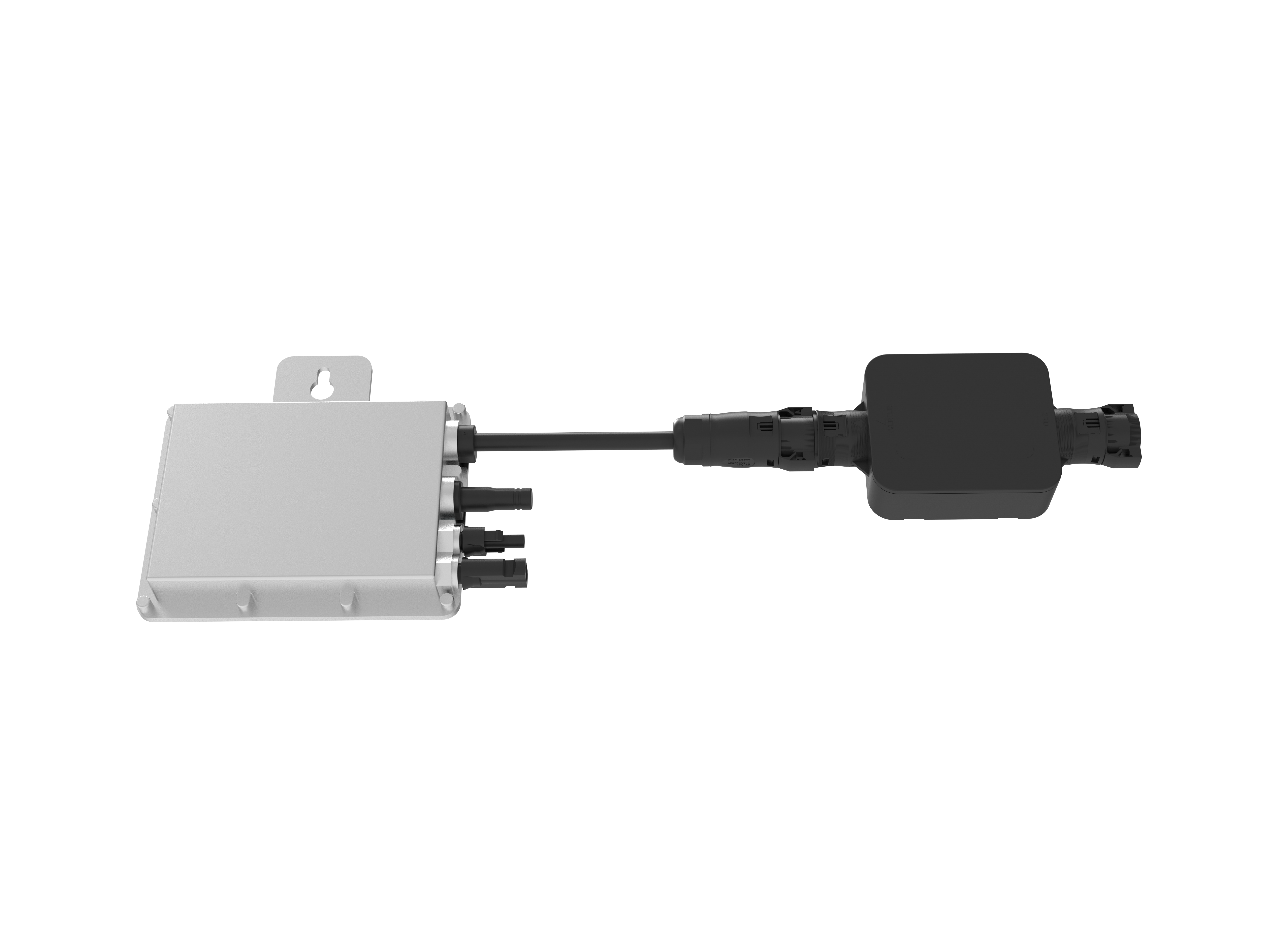

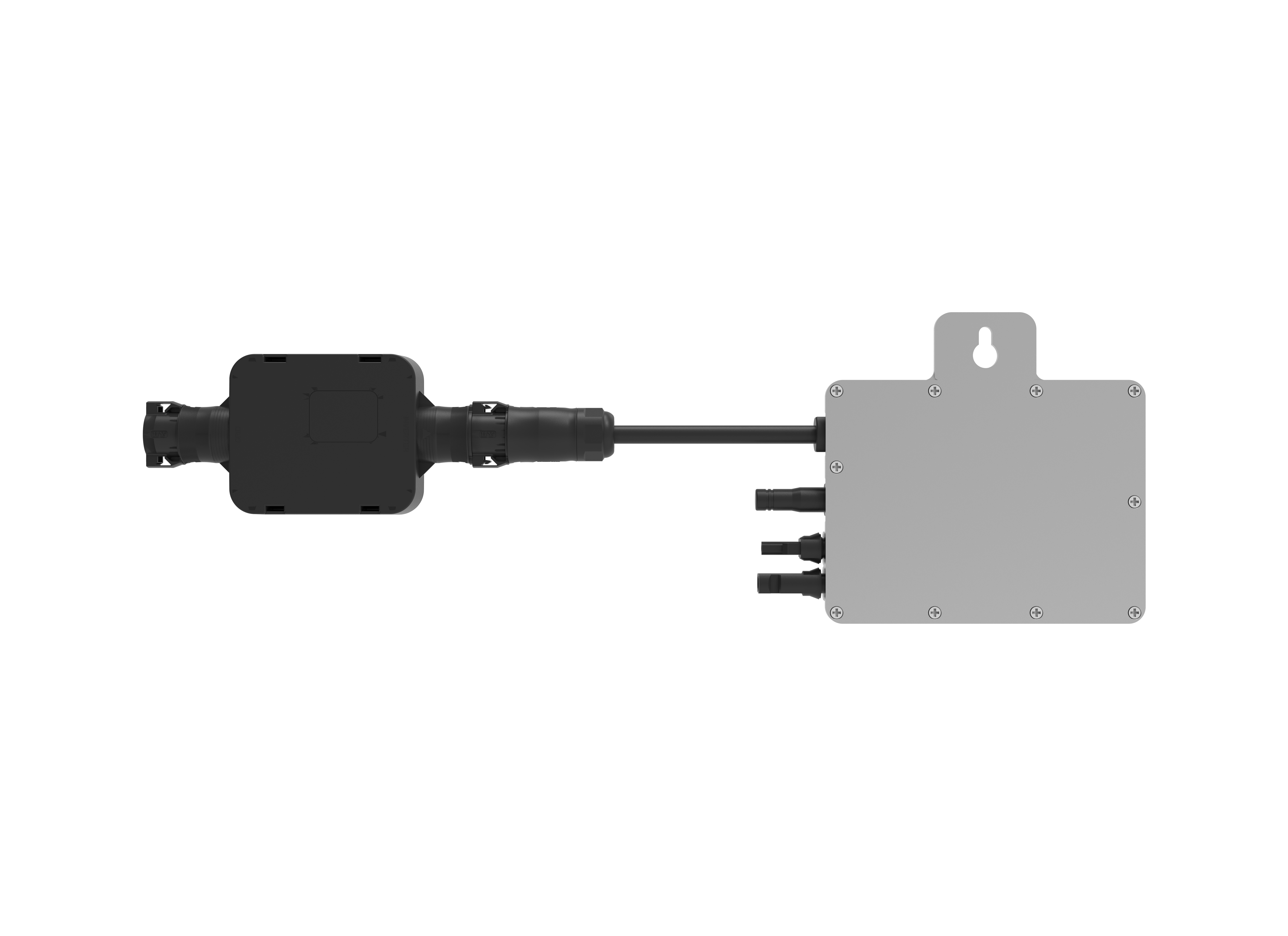

Model
|
SUN-M30G3-EU-Q0
|
SUN-M40G3-EU-Q0
|
SUN-M50G3-EU-Q0
|
Input data (DC)
|
|||
Recommended Input Power (STC)
|
210-420W (1 Pieces)
|
210-560W (1 Pieces)
|
210-700W (1 Pieces)
|
Maximum Input DC Voltage (V)
|
60
|
||
MPPT Voltage Range (V)
|
25-55
|
||
Full Load DC Voltage Range (V)
|
30-55
|
33-55
|
40-55
|
Max. DC Short Circuit Current (A)
|
19.5
|
||
Max. Input Current (A)
|
13
|
||
No.of MPP Trackers
|
1
|
||
No.of Strings per MPP Tracker
|
1
|
||
Output Data (AC)
|
|||
Max. Output Apparent Power (VA)
|
300
|
400
|
500
|
Rated Output Power (W)
|
300
|
400
|
500
|
Rated Output Current (A)
|
1.4/1.4
|
1.9/1.8
|
2.3/2.2
|
Max.AC Output Current(A)
|
1.4/1.4
|
1.9/1.8
|
2.3/2.2
|
Grid Connection Form Rated output voltage/range (V) | L+N+PE 220V/184V-242V 230V/ 195.5V-253V | ||
Rated Grid Frequency/range(Hz)
|
50Hz/45Hz-55Hz 60Hz/55Hz-65Hz
|
||
Power Factor AdjustmentRange
|
>0.99
|
||
Current Harmonic Distortion THDi
|
<3%
|
||
DC ComponentOf Grid
|
<0.5%ln
|
||
Maximum Units per Branch
|
17 | 13 | 10 |
Efficiency
|
|||
Max Efficiency
|
96.5%
|
||
MPPT Efficiency
|
99%
|
||
Mechanical Data
|
|||
Night Time Power Consumption
|
50mW
|
||
Ambient Temperature Range
|
-40-65℃, >45℃ derating
|
||
Cabinet Size (WxHxD mm)
|
144×189×31.5 (Excluding Connectors and Brackets)
|
||
Weight (kg)
|
1.7
|
||
cooling
|
Free Cooling
|
||
Enclosure Environmental Rating
|
IP67
|
||
Features
|
|||
Communication
|
WIFI
|
||
Grid Connection Standard
|
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, VDE-AR-N 4105 | ||
Safety EMC / Standard
|
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
|
||
Warranty
|
10 years
|
||
|
|
||
Network and System Protection Device
|
SUN-MI-RELAY-01
|
||
AC Intput Data (Inverter)
|
|
||
Nominal Voltage
|
220V/230V
|
||
Nominal Frequency
|
50Hz
|
||
Max AC Current
|
12A
|
||
Nominal AC Current
|
12A
|
||
Matching Inverter
|
MicroInverter
|
||
AC Output Data(Grid)
|
|
||
Nominal Voltage
|
220V/230V
|
||
Nominal Frequency
|
50Hz
|
||
Max AC Current
|
12A
|
||
Nominal AC Current
|
12A
|
||
General Data
|
|
||
Ambient Temperature Range
|
-40-65℃
|
||
Humidity
|
0%-100% RH
|
||
Cabinet Size (WxHxD)
|
111mm*95mm*37.7mm (Excluding Connectors and Brackets)
|
||
Weight
|
340g
|
||
Enclosure Environmental Rating
|
IP67
|
||
Communication
|
Wireless/WIFI
|
||
Safety EMC / Standard
|
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2, VDE-AR-N 4105
|
||
Warranty
|
10 Years
|
Model |
SUN-M30G3-EU-Q0
|
SUN-M40G3-EU-Q0
|
SUN-M50G3-EU-Q0
|
Input data (DC) | |||
Recommended Input Power (STC) | 210-420W (1 Pieces) | 210-560W (1 Pieces) | 210-700W (1 Pieces) |
Maximum Input DC Voltage (V) |
60
|
||
MPPT Voltage Range (V) | 25-55 | ||
Full Load DC Voltage Range (V) | 30-55 | 33-55 | 40-55 |
Max. DC Short Circuit Current (A) | 19.5 | ||
Max. Input Current (A) | 13 | ||
No.of MPP Trackers | 1 | ||
No.of Strings per MPP Tracker | 1 | ||
Output Data (AC) | |||
Max. Output Apparent Power (VA) | 300 | 400 | 500 |
Rated Output Power (W) | 300 | 400 | 500 |
Rated Output Current (A) | 1.4/1.4 | 1.9/1.8 | 2.3/2.2 |
Max.AC Output Current(A) |
1.4/1.4 |
1.9/1.8 |
2.3/2.2 |
Grid Connection Form Rated output voltage/range (V) | L+N+PE 220V/184V-242V 230V/ 195.5V-253V | ||
Rated Grid Frequency/range(Hz) | 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz | ||
Power Factor AdjustmentRange | >0.99 | ||
Current Harmonic Distortion THDi | <3% | ||
DC ComponentOf Grid |
<0.5%ln |
||
Maximum Units per Branch | 17 | 13 | 10 |
Efficiency | |||
Max Efficiency | 96.5% | ||
MPPT Efficiency | 99% | ||
Mechanical Data | |||
Night Time Power Consumption |
50mW
|
||
Ambient Temperature Range |
-40-65℃, >45℃ derating
|
||
Cabinet Size (WxHxD mm) | 144×189×31.5 (Excluding Connectors and Brackets) | ||
Weight (kg) | 1.7 | ||
cooling | Free Cooling | ||
Enclosure Environmental Rating | IP67 | ||
Features | |||
Communication | WIFI | ||
Grid Connection Standard | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, VDE-AR-N 4105 | ||
Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||
Warranty | 10 years | ||
Network and System Protection Device | SUN-MI-RELAY-01 | ||
AC Intput Data (Inverter) | |||
Nominal Voltage | 220V/230V | ||
Nominal Frequency | 50Hz | ||
Max AC Current | 12A | ||
Nominal AC Current | 12A | ||
Matching Inverter | MicroInverter | ||
AC Output Data(Grid) | |||
Nominal Voltage | 220V/230V | ||
Nominal Frequency | 50Hz | ||
Max AC Current | 12A | ||
Nominal AC Current | 12A | ||
General Data | |||
Ambient Temperature Range | -40-65℃ | ||
Humidity | 0%-100% RH | ||
Cabinet Size (WxHxD) | 111mm*95mm*37.7mm (Excluding Connectors and Brackets) | ||
Weight | 340g | ||
Enclosure Environmental Rating | IP67 | ||
Communication | Wireless/WIFI | ||
Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2, VDE-AR-N 4105 | ||
Warranty | 10 Years |
Model |
SUN-M30G3-EU-Q0
|
SUN-M40G3-EU-Q0
|
SUN-M50G3-EU-Q0
|
Input data (DC) | |||
Recommended Input Power (STC) | 210-420W (1 Pieces) | 210-560W (1 Pieces) | 210-700W (1 Pieces) |
Maximum Input DC Voltage (V) |
60
|
||
MPPT Voltage Range (V) | 25-55 | ||
Full Load DC Voltage Range (V) | 30-55 | 33-55 | 40-55 |
Max. DC Short Circuit Current (A) | 19.5 | ||
Max. Input Current (A) | 13 | ||
No.of MPP Trackers | 1 | ||
No.of Strings per MPP Tracker | 1 | ||
Output Data (AC) | |||
Max. Output Apparent Power (VA) | 300 | 400 | 500 |
Rated Output Power (W) | 300 | 400 | 500 |
Rated Output Current (A) | 1.4/1.4 | 1.9/1.8 | 2.3/2.2 |
Max.AC Output Current(A) |
1.4/1.4 |
1.9/1.8 |
2.3/2.2 |
Grid Connection Form Rated output voltage/range (V) | L+N+PE 220V/184V-242V 230V/ 195.5V-253V | ||
Rated Grid Frequency/range(Hz) | 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz | ||
Power Factor AdjustmentRange | >0.99 | ||
Current Harmonic Distortion THDi | <3% | ||
DC ComponentOf Grid |
<0.5%ln |
||
Maximum Units per Branch | 17 | 13 | 10 |
Efficiency | |||
Max Efficiency | 96.5% | ||
MPPT Efficiency | 99% | ||
Mechanical Data | |||
Night Time Power Consumption |
50mW
|
||
Ambient Temperature Range |
-40-65℃, >45℃ derating
|
||
Cabinet Size (WxHxD mm) | 144×189×31.5 (Excluding Connectors and Brackets) | ||
Weight (kg) | 1.7 | ||
cooling | Free Cooling | ||
Enclosure Environmental Rating | IP67 | ||
Features | |||
Communication | WIFI | ||
Grid Connection Standard | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, VDE-AR-N 4105 | ||
Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||
Warranty | 10 years | ||
Network and System Protection Device | SUN-MI-RELAY-01 | ||
AC Intput Data (Inverter) | |||
Nominal Voltage | 220V/230V | ||
Nominal Frequency | 50Hz | ||
Max AC Current | 12A | ||
Nominal AC Current | 12A | ||
Matching Inverter | MicroInverter | ||
AC Output Data(Grid) | |||
Nominal Voltage | 220V/230V | ||
Nominal Frequency | 50Hz | ||
Max AC Current | 12A | ||
Nominal AC Current | 12A | ||
General Data | |||
Ambient Temperature Range | -40-65℃ | ||
Humidity | 0%-100% RH | ||
Cabinet Size (WxHxD) | 111mm*95mm*37.7mm (Excluding Connectors and Brackets) | ||
Weight | 340g | ||
Enclosure Environmental Rating | IP67 | ||
Communication | Wireless/WIFI | ||
Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2, VDE-AR-N 4105 | ||
Warranty | 10 Years |
