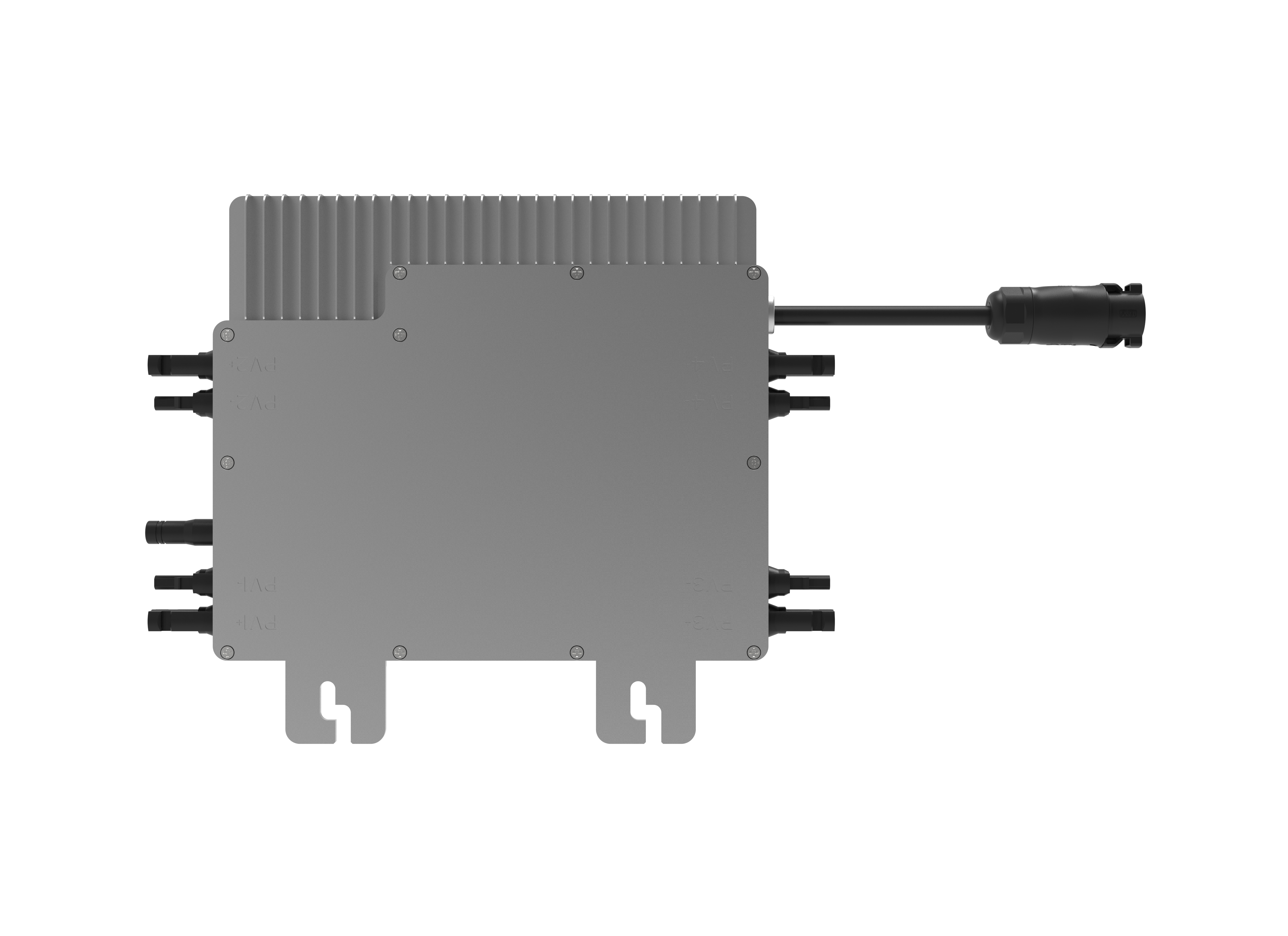

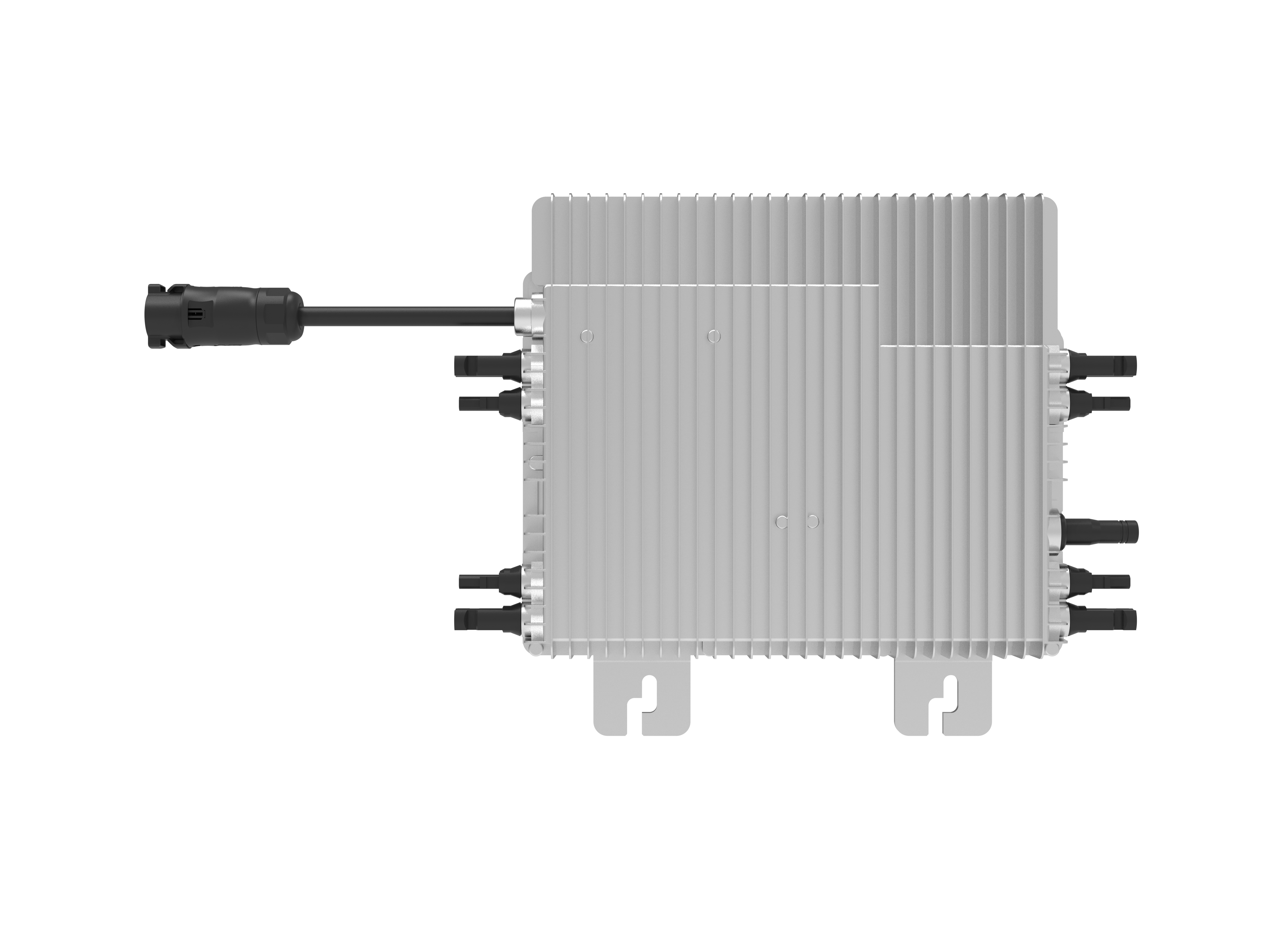

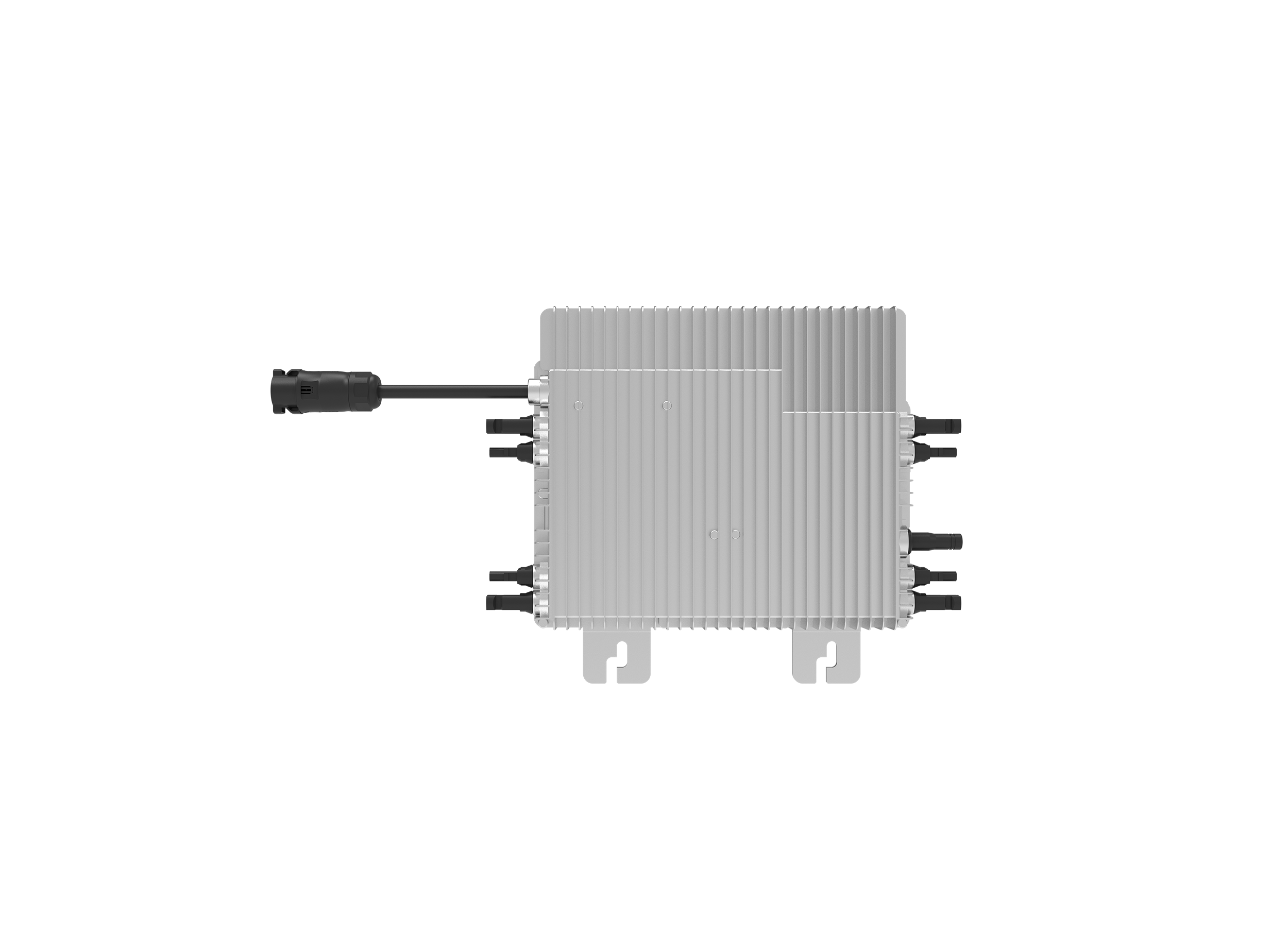

SUN-M130/160/200G3-EU-Q0-P1|1300-2000W | Single Phase | 4 MPPT | Micro Inverter

Higher returns / Safe / Smart / User-friendly

Remotely shutdown function

Smart Monitoring Platform

Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

IP67 protection degree, 10 years warranty
WIFI communication
Max. DC input current of 18A, adapt to 600W PV module
4 MPP trackers, module level monitoring
Rapid shutdown function

DOWNLOAD AREA

>> Download Datasheet <<

Technical Specifications

SUN-M130G3-EU-Q0-P1
SUN-M160G3-EU-Q0-P1
SUN-M200G3-EU-Q0-P1
Feedback

Model	SUN-M130G3-EU-Q0-P1	SUN-M160G3-EU-Q0-P1	SUN-M200G3-EU-Q0-P1
Input data (DC)
Recommended Input Power (STC)	210-460W (4 Pieces)	210-560W (4 Pieces)	210-700W (4 Pieces)
Maximum Input DC Voltage (V)	60
MPPT Voltage Range (V)	25-55
Full Load DC Voltage Range (V)	30-55	30-55	30-55
Max. DC Short Circuit Current (A)	4×27
Max. Input Current (A)	4×18
No.of MPP Trackers	4
No.of Strings per MPP Tracker	1
Output Data (AC)
Max. Output Apparent Power (VA)	1300	1600	2000
Rated Output Power (W)	1300	1600	2000
Rated Output Current (A)	6/5.7	7.3/7	9.1/8.7
Max.AC Output Current(A)	6/5.7	7.3/7	9.1/8.7
Grid Connection Form Rated output voltage/range (V)	L+N+PE 220V/184V-242V 230V/ 195.5V-253V
Rated Grid Frequency/range(Hz)	50Hz/45Hz-55Hz 60Hz/55Hz-65Hz
Power Factor AdjustmentRange	>0.99
Current Harmonic Distortion THDi	<3%
DC ComponentOf Grid	<0.5%ln
Maximum Units per Branch	4	4	3
Efficiency
Max Efficiency	96.5%
MPPT Efficiency	99%
Mechanical Data
Night Time Power Consumption	50mW
Ambient Temperature Range	-40-65℃, >45℃ derating
Cabinet Size (WxHxD mm)	306×258×36.5 (Excluding Connectors and Brackets)
Weight (kg)	5
cooling	Free Cooling
Enclosure Environmental Rating	IP67
Features
Communication	WIFI
Grid Connection Standard	IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, VDE-AR-N 4105
Safety EMC / Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Warranty	10 years
