SUN1300-2000G3-EU-230 | 1300-2000W | Single Phase | 4 MPPT | Micro-inverter | Rapid Shutdown inverter

Higher yields Safe Smart User-friendly

Microinverter

SUN1300-2000G3-EU-230 | 1300-2000W | Single Phase | 4 MPPT | Micro-inverter | Rapid Shutdown

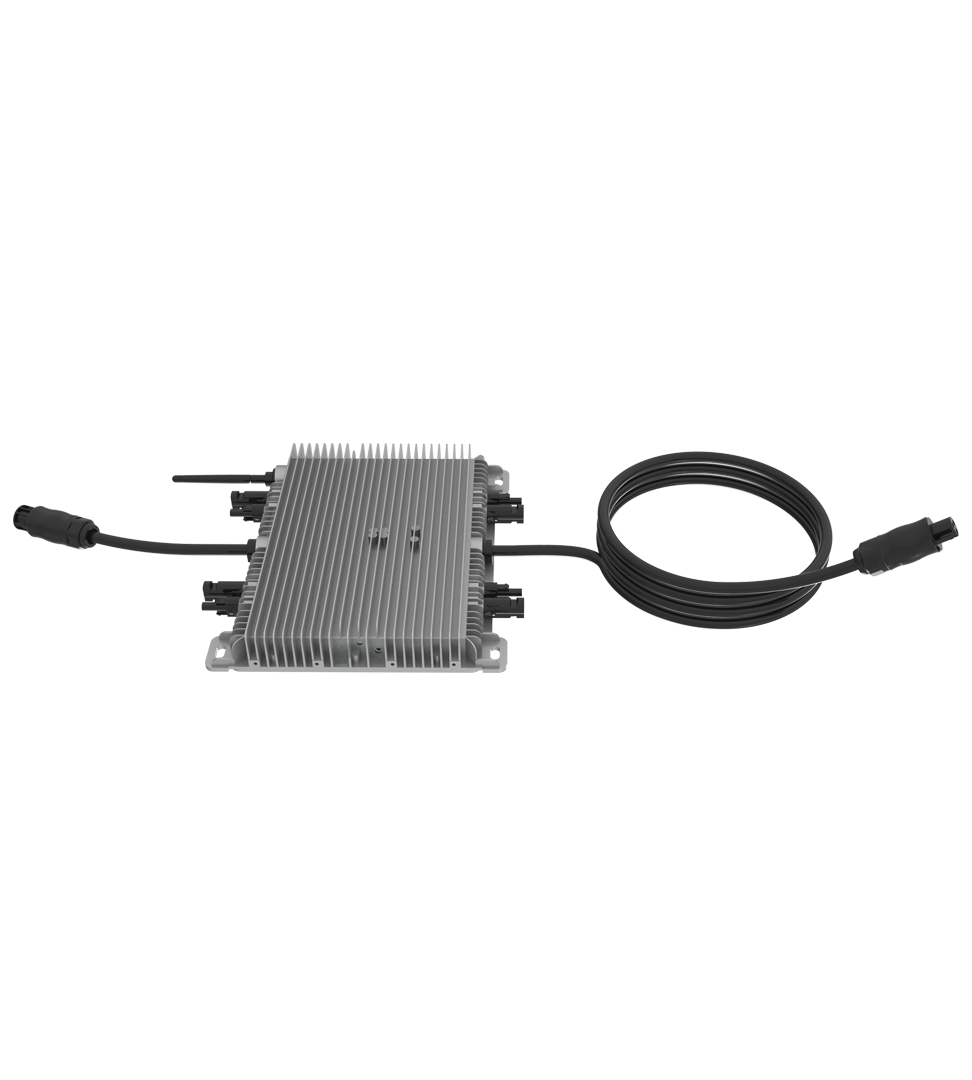

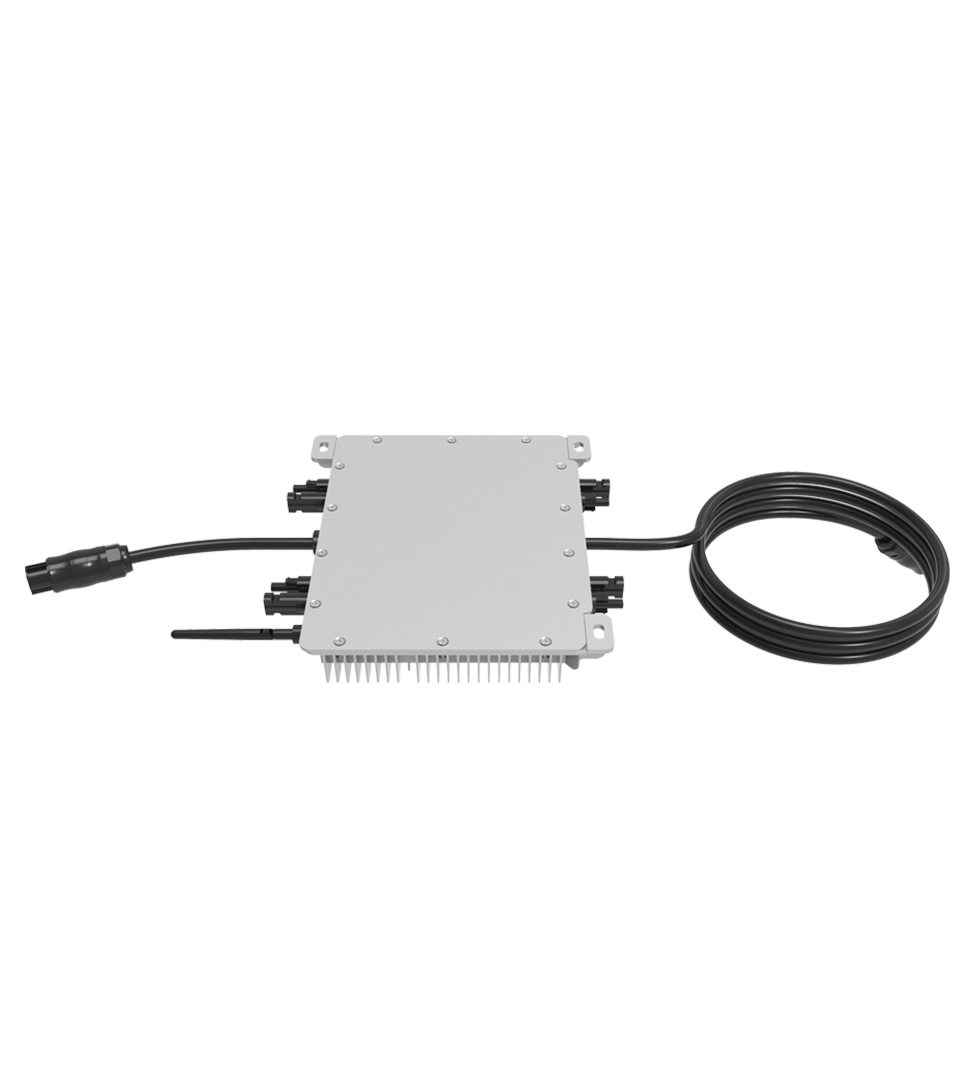

The SUN 1300-2000G3 is a new generation grid-tied microinverter with intelligent networking and monitoring systems to ensure maximum efficiency. High efficiency, high reliability of the SUN 1300-2000G3 with 4 independent MPPT inputs, Maximum AC output power reaching 2000W. It comes with 2pcs AC cables, while in parallel, a great flexibility on the installation.

Microinverter

SUN1300-2000G3-EU-230 | 1300-2000W | Single Phase | 4 MPPT | Micro-inverter | Rapid Shutdown

  • Rapid shutdown function
  • IP67 protection degree,10 years warranty
  • PLC, Zigbee or WIFI communication
  • 4 MPP trackers, module level monitoring
  • Max. DC input current of 12.5A,adapt to 600W PV module

Technical Specifications

  • Model

    SUN1300G3-EU-230

    SUN1600G3-EU-230

    SUN1800G3-EU-230

    SUN2000G3-EU-230

    Input Data (DC)

    Recommended input Power (STC)

    210~400W (4 Pieces)

    210~500W (4 Pieces)

    210~500W (4 Pieces)

    210~600W (4 Pieces)

    Maximum input DC Voltage

    60V

    MPPT Voltage Range

    25~55V

    Operating DC Voltage Range

    20~60V

    Max. DC Short Circuit Current

    16A

    Max. input Current

    10.5A×4

    12.5A×4 12.5A×4 12.5A×4

    Output Data (AC)

    Rated output Power

    1300W

    1600W

    1800W

    2000W

    Maximum output Power

    1430W

    1760W

    1980W

    2200W

    Maximum output Current

    6.2A

    7.7A

    8.6A

    9.6A

    Nominal Voltage / Range

    230V / 184-265V

    Nominal Frequency / Range

    50 / 60Hz

    Extended Frequency/Range

    45~55Hz / 55~65Hz

    Power Factor

    >0.99

    Maximum units per branch

    4

    4

    3

    3

    Efficiency

    CEC Weighted Efficiency

    95%

    Peak Inverter Efficiency

    96.5%

    Static MPPT Efficiency

    99%

    Night Time Power Consumption

    50mW

    >

    Mechanical Data

    Ambient Temperature Range

    -40~65℃

    Size (mm)

    267W×300H×42.5D (Without mounting bracket and cable)

    Weight (kg)

    5.2

    Cooling

    Natural cooling

    Enclosure Environmental Rating

    IP67

    Features

    Compatibility

    Compatible with 60~72 cell PV modules

    Communication

    Power line / WIFI / Zigbee

    Compliance

    EN50549、VDE0126、VDE4105、IEC62109、CE、INMETRO

    Warranty

    10 years
