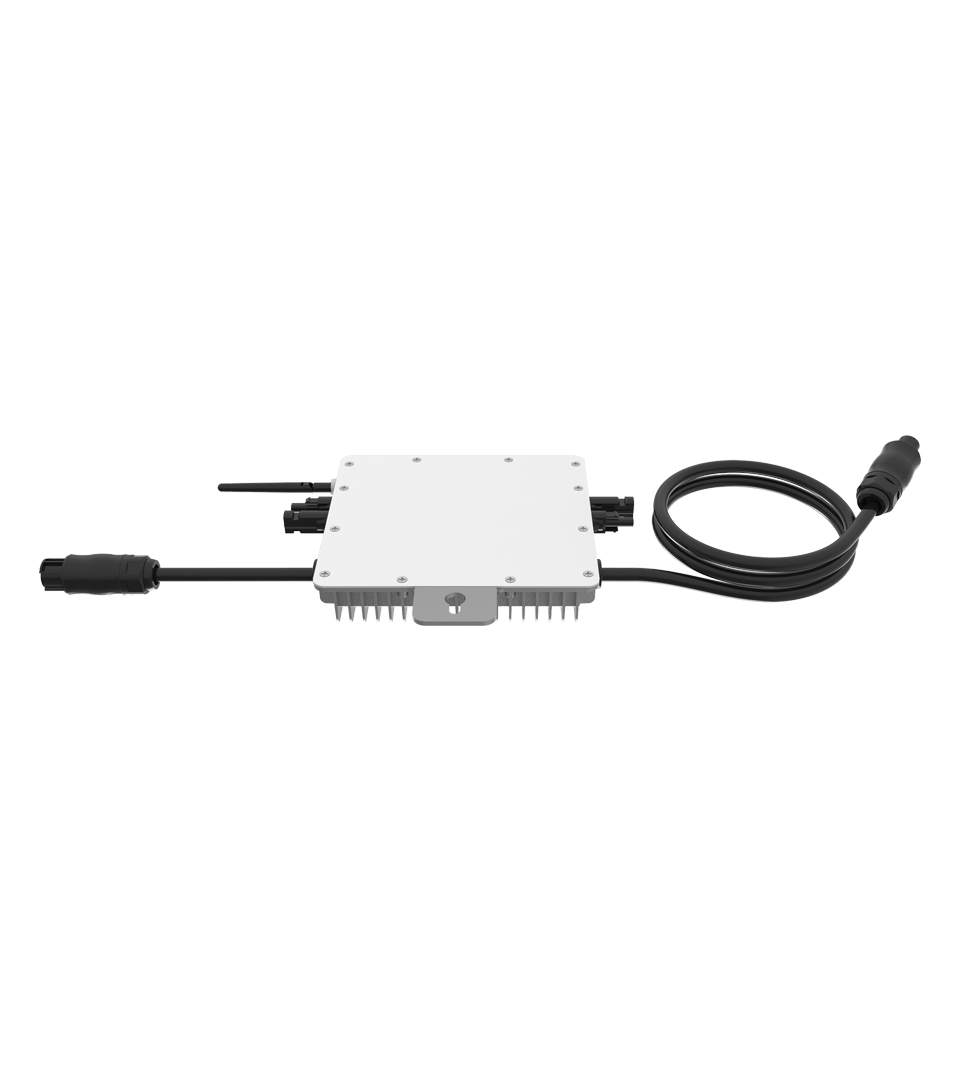

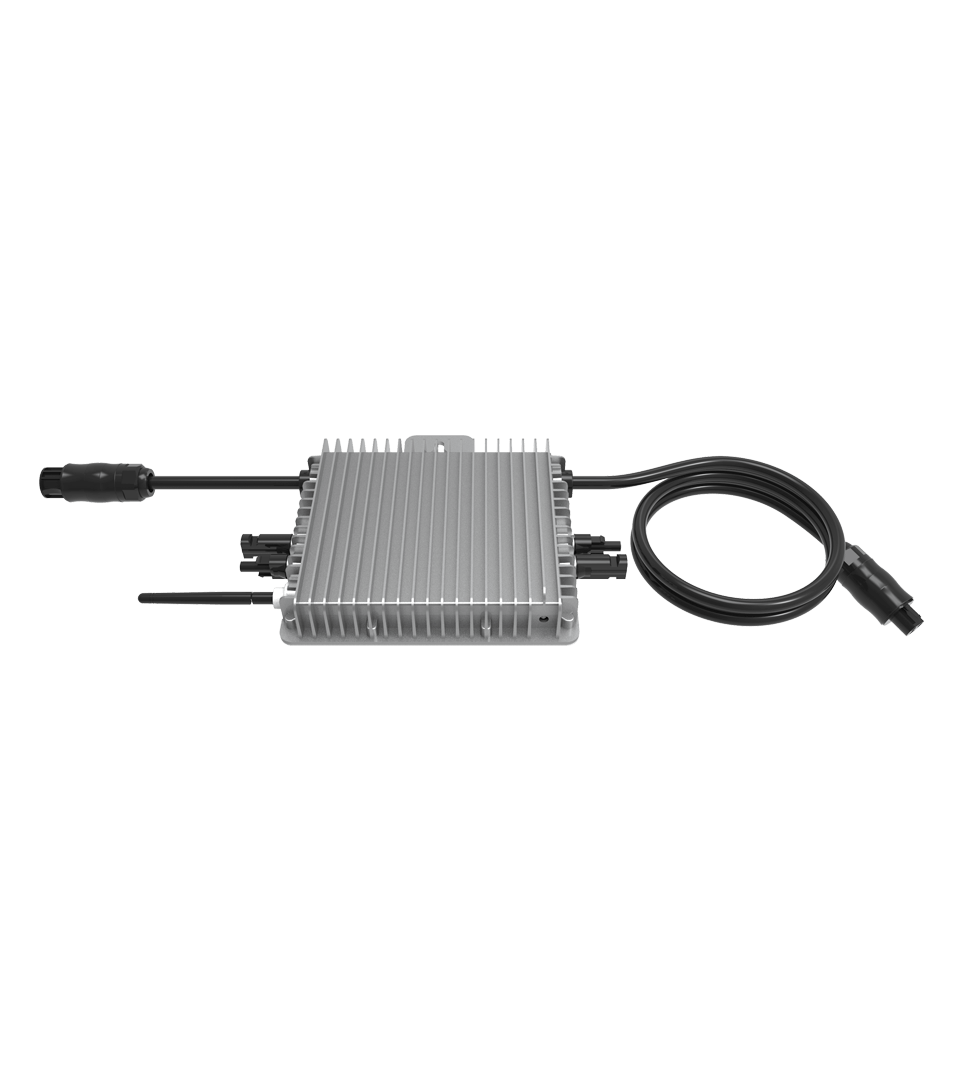

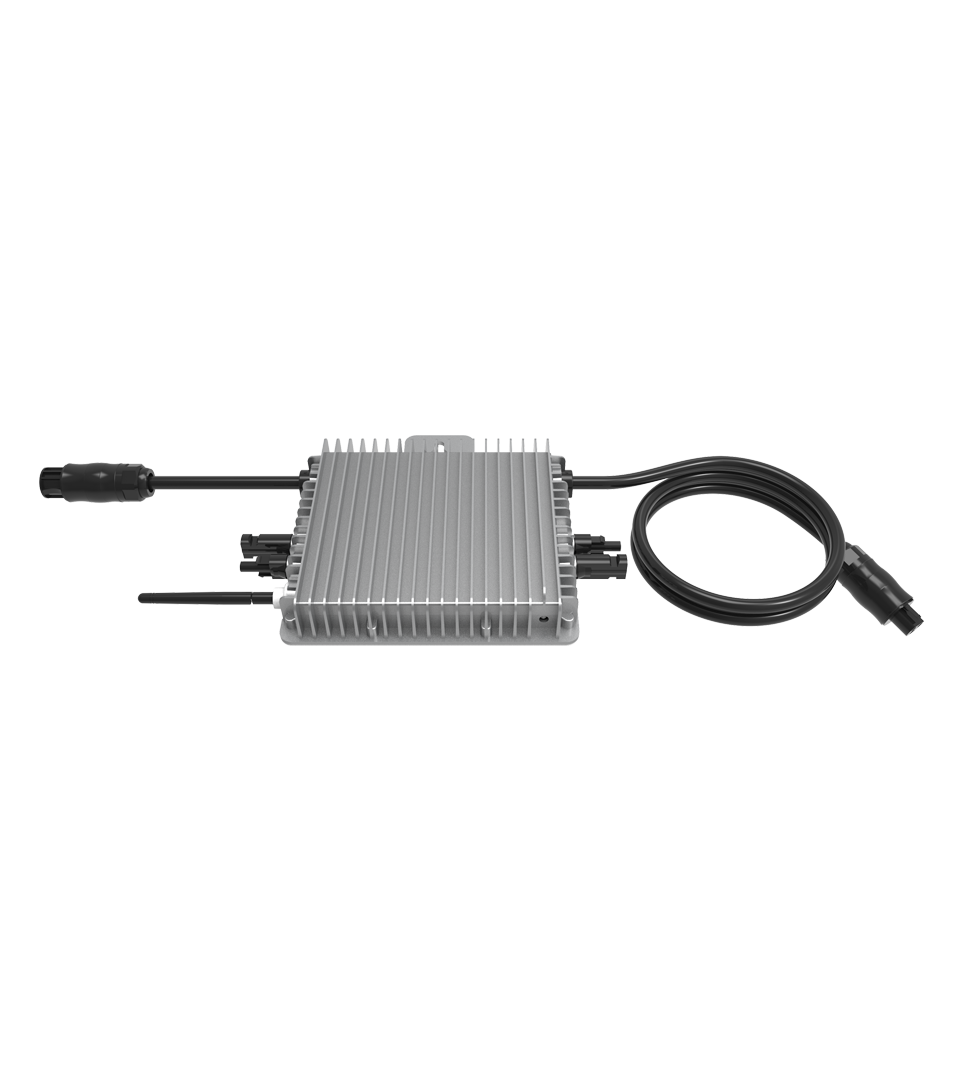

SUN600/800/1000G3-EU-230 |600-1000W| Single Phase | 2 MPPT | Micro-inverter | Rapid Shutdown inverter

Higher yields Safe Smart User-friendly

Microinverter

SUN600/800/1000G3-EU-230 |600-1000W| Single Phase | 2 MPPT | Micro-inverter | Rapid Shutdown

The SUN 600/800/1000G3 is a new generation grid-tied microinverter with intelligent networking and monitoring systems to ensure maximum efficiency. The SUN 600/800/1000G3 is optimized to accommodate today’s high output PV modules effectively with up to 500W output and dual MPPT. Also, it supports rapid shutdown application, ensuing your investment safe.

Microinverter

SUN600/800/1000G3-EU-230 |600-1000W| Single Phase | 2 MPPT | Micro-inverter | Rapid Shutdown

  • Module level monitoring, safer and smarter
  • Max. DC input current 12.5A, adapt to 500W PV module
  • Rapid shutdown function
  • IP67 protection degree,10 years warranty
  • PLC, Zigbee or WIFI communication
  • 2 MPP trackers, module level monitoring

Technical Specifications

  • Model

    SUN600G3-EU-230

    SUN800G3-EU-230 SUN1000G3-EU-230

    Input Data (DC)

    Recommended input Power (STC)

    210~400W (2 Piece)

    210~600W (2 Piece) 210~600W (2 Pieces)

    Maximum input DC Voltage

    60V

    MPPT Voltage Range

    25~55V

    Operating DC Voltage Range

    20~60V

    Max. DC Short Circuit Current

    16A

    Max. input Current

    10.5A×2

    12.5A×2 12.5A×2

    Output Data (AC)

    Rated output Power

    600W

    800W 1000W

    Maximum output Power

    660W

    880W 1100W

    Maximum output Current

    2.9A

    3.8A 4.8A

    Nominal Voltage / Range

    230V / 184-265V

    Nominal Frequency / Range

    50 / 60Hz

    Extended Frequency/Range

    45~55Hz / 55~65Hz

    Power Factor

    >0.99

    Maximum units per branch

    8

    6 5

    Efficiency

    CEC Weighted Efficiency

    95%

    Peak Inverter Efficiency

    96.5%

    Static MPPT Efficiency

    99%

    Night Time Power Consumption

    50mW


    Mechanical Data

    Ambient Temperature Range

    -40~65℃

    Size (mm)

    212W×229H×40D (Without mounting bracket and cable)

    Weight (kg)

    3.5

    Cooling

    Natural cooling

    Enclosure Environmental Rating

    IP67

    Features

    Compatibility

    Compatible with 60~72 cell PV modules

    Communication

    Power line / WIFI / Zigbee

    Compliance

    EN50549、VDE0126、VDE4105、IEC62109、CE、INMETRO

    Warranty

    10 years
