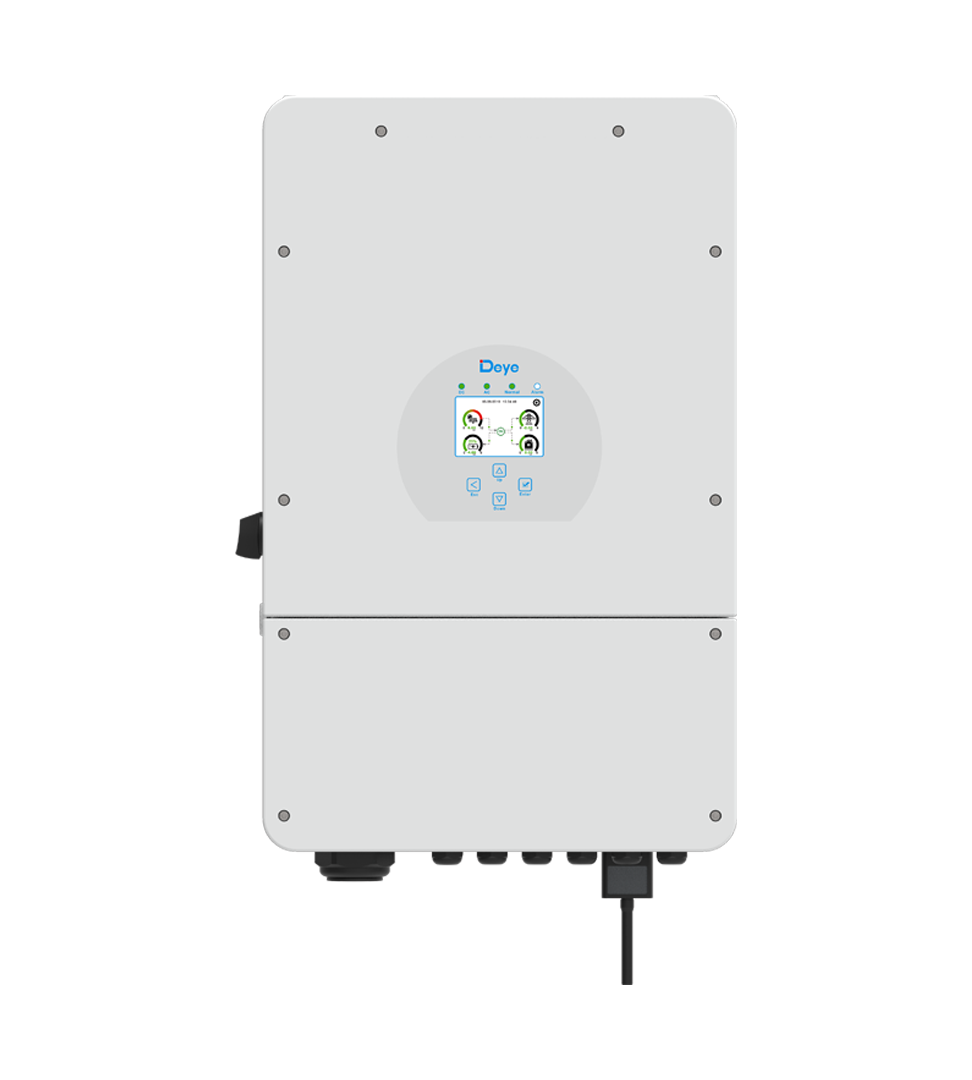

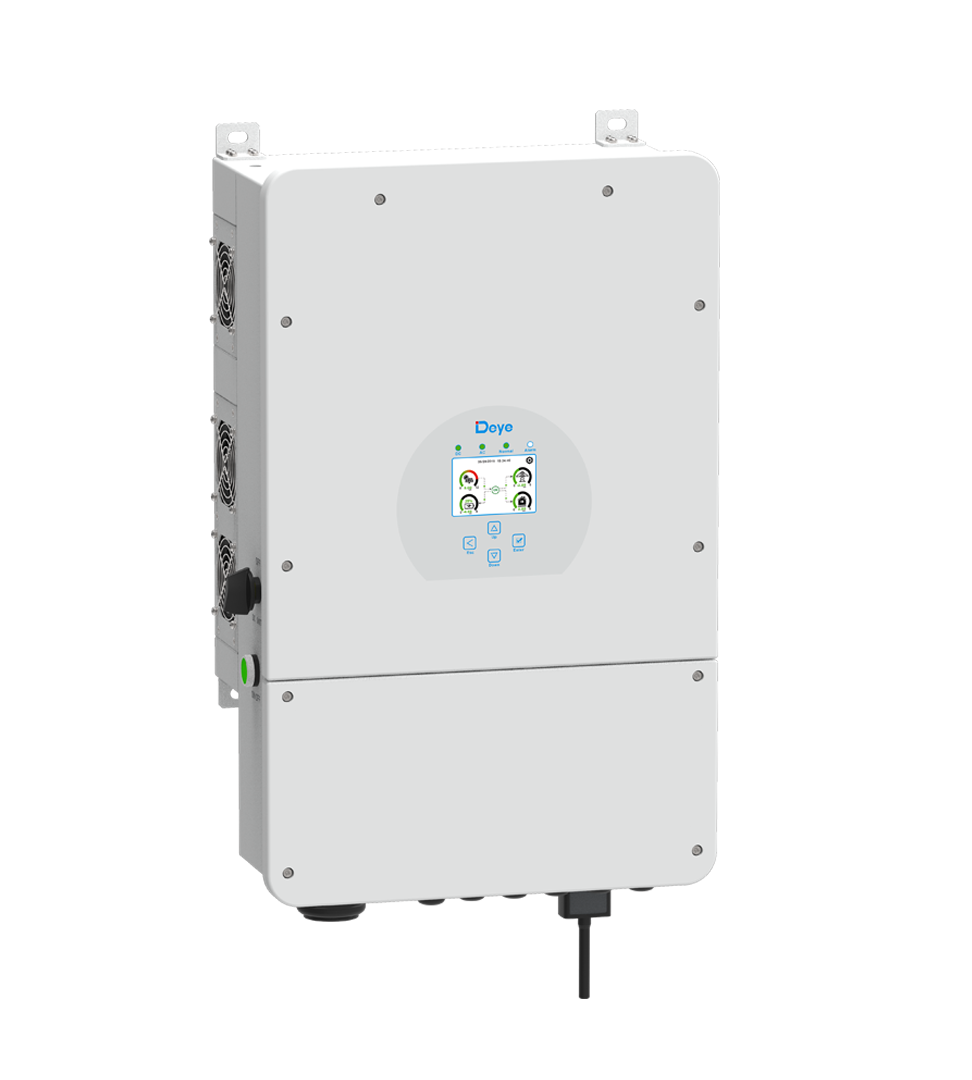

SUN-5/6K-SG01LP1-US SUN-7.6/8K-SG01LP1-US/EU | 5-8kW | Single Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery

Higher yields / Safe & Reliable / Smart / User-friendly

The series, SUN-5/6K-SG01LP1-US SUN-7.6/8K-SG01LP1-US/EU, is a single-phase low voltage (48V) hybrid inverter that enables enhanced energy independence and maximizes self-consumption through export limit feature and “time of use” function. With the frequency droop control algorithm, this series product supports single phase and three phase parallel application, and the Max. parallel units is up to 16pcs.

Remotely shutdown function

Smart Monitoring Platform

Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

  • Colorful touch LCD, IP65 protection degree
  • 6 time periods for battery charging/discharging
  • Max. charging/discharging current of 190A
  • Max.16pcs parallel
  • DC couple and AC couple to retrofit existing solar system
  • Support storing energy from diesel generator
  • Max. battery charge efficiency of 95.4%
  • Unique Smart Load application and Grid peak shaving function
  • 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well
  • Certified by UL, CE, IEC, VDE, NRS, VFR, AS4777.2, CEI and INMETRO etc.

Technical Specifications

  • SUN-5K-SG01LP1-US
  • SUN-6K-SG01LP1-US
  • SUN-7.6K-SG01LP1-US/EU
  • SUN-8K-SG01LP1-US/EU
