Energy Meter

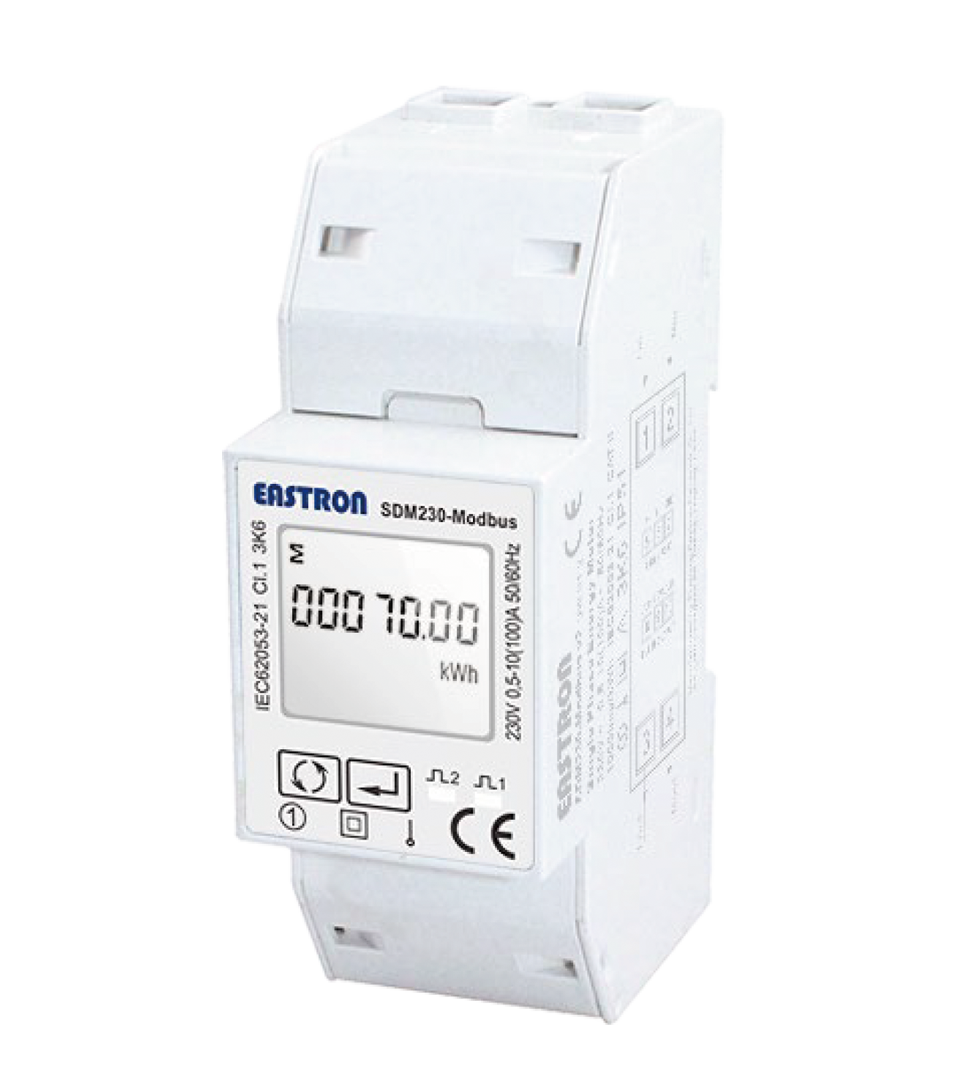

The SDM 230 Modbus Single-phase electronic type guide rail mounting electric energy meters. It is used to monitor and display the grid power (voltage, current frequency and energy), and transfer this info to solar inverter via RS485 communication in zero-export system.   The SDM 230 Modbus series three phase four wire electronic energy meter (din-rail) is designed based on power monitoring and energy metering demands for PV power plants etc. Mainly applied into the measurement and display for the grid parameters in the zero-export system, including grid voltage, current, active power, reactive power, frequency, etc.

Accessory & Monitoring

Energy Meter

  • Local LCD display, RS485 communication
  • Adopting the standard DIN35mm din rail mounting
  • Small volume, easy installation and easy communication
  • Positive and reverse active power, four quadrant reactive power metering

Technical Specifications

  • Model

    SDM 230 Modbus

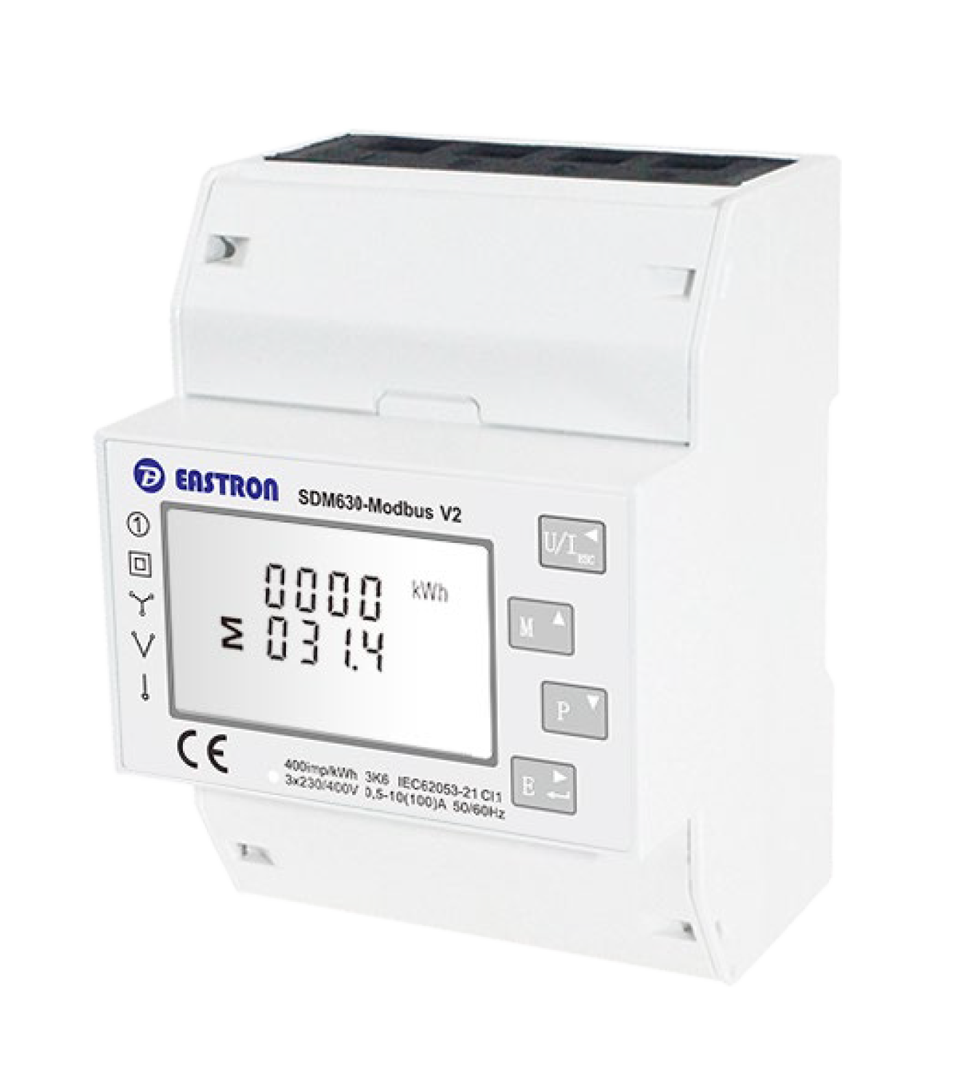

    SDM 630-Modbus V2

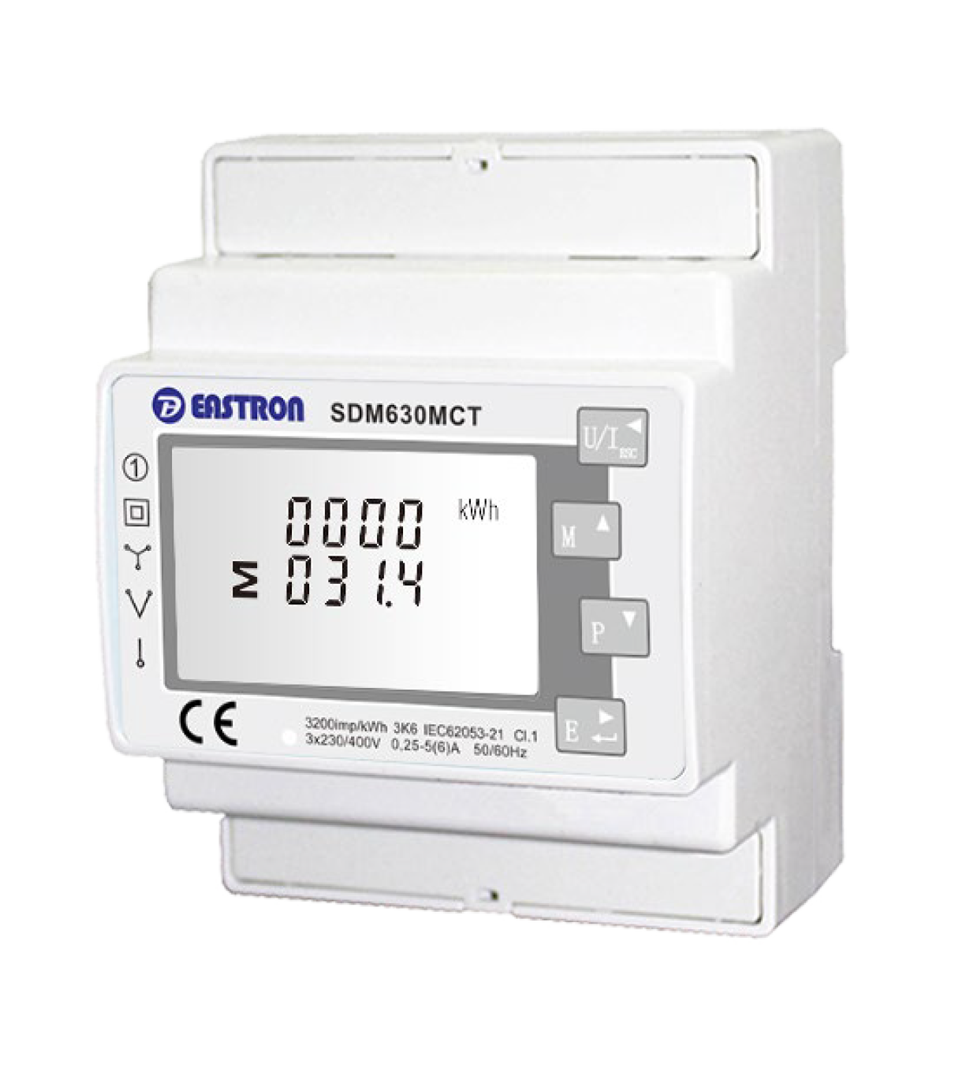

    SDM 630 MCT

    Max. direct current measurement (A)

    100A

    100A

    1-9999A(搭配CT一次侧电流)

    Direct Voltage measurement between phases

    /

    147-480V

    50-950V

    50-550V

    Direct measurement between phase and neutral

    176~276V

    85-480V

    20 to 550V

    Accuracy Class

    Active power

    Classl

    Reactive power

    Class2

    Power Supply

    Power consumption

    ≤2W / 10VA

    ≤2W / 10VA

    ≤2W / 10VA

    AC power supply input voltage

    176-276V

    85-480V

    85-275V/120-380V

    AC power supply input frequency

    50Hz

    50/60Hz+_2%

    50/60Hz+_2%

    Generation Specifications

    Dimenstions (L/H/W) in mm

    36×99×63

    72×100×66

    72×94.5×65

    Weight (kg)

    0.21

    0.42

    0.29

    Mounting options

    DIN Rail

    Degree of protection

    IP51

    Display

    LCD

    Communication interface

    RS485

    Max. number of devices to connect

    32

    Regulated working temperature range

    -25℃~+55℃

    Humidity

    0~95%,无冷凝

    Warranty

    1.5 years

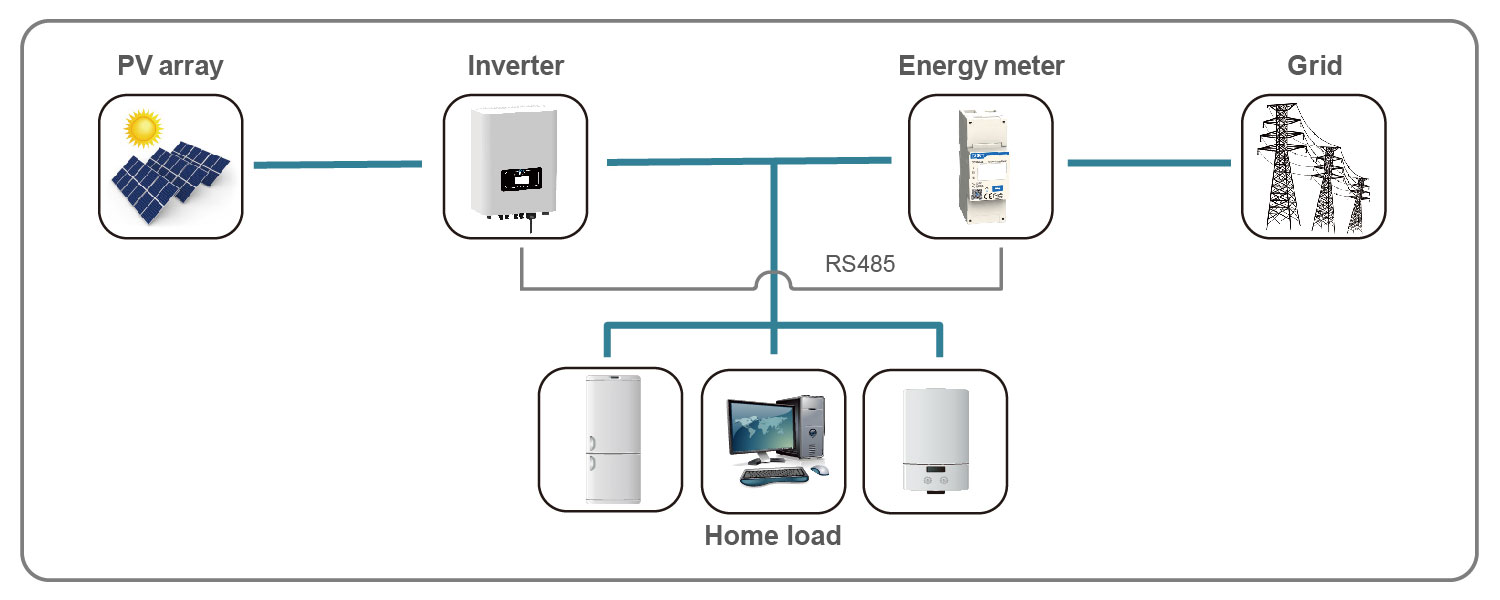

    Zero-export Application Diagram
